Internal Markers Registration

When you want to register more than one additional internal marker,
Internal Markers
Click on the

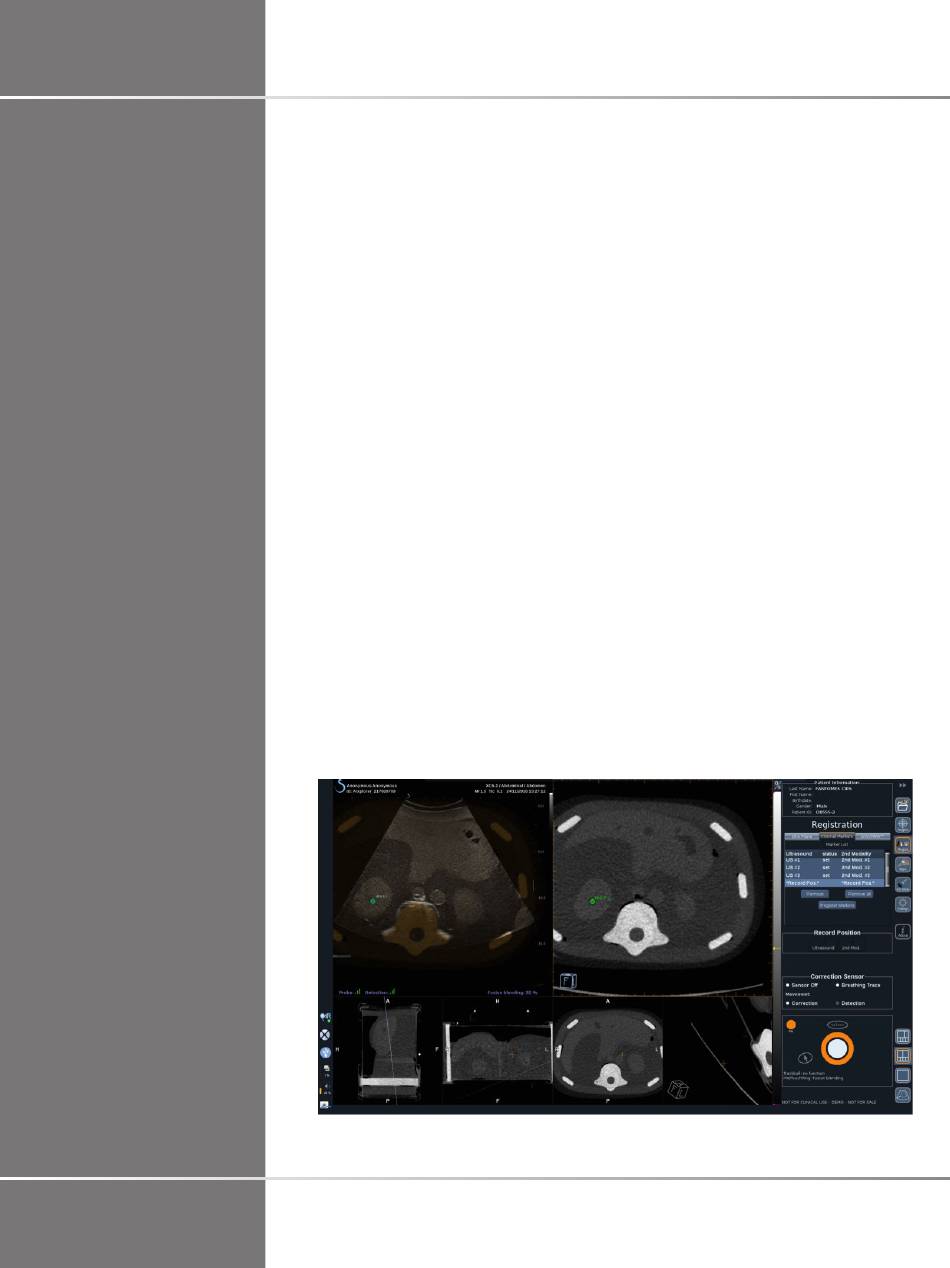

1. Find an anatomical point on the live ultrasound (left side)
2. Click on Ultrasound
3. Click on the anatomical point to be registered on the ultrasound image
4. Move the probe to find the 2nd modality slice with the same
anatomical point
5. Click on 2nd Modality
6. Click on the anatomical point to be registered on the 2nd Modality
(Right side)
7. Repeat this procedure from step 1 on at least 3 different anatomical
points
8. Click on
Register Markers
The live Ultrasound image is now perfectly synchronized with the 2nd
Modality based on the specific anatomical points recorded.
TouchRing
Use the
ultrasound image and the 2nd modality (Fusion blending control).
84 Aixplorer® Fusion/Navigation User's Guide
tab to manage the additional points.
under Record Position to freeze the ultrasound
under Record Position to freeze the image.
PW
or to change the priority between the
