Device Description

3 Device Description
3.1

Device Overview

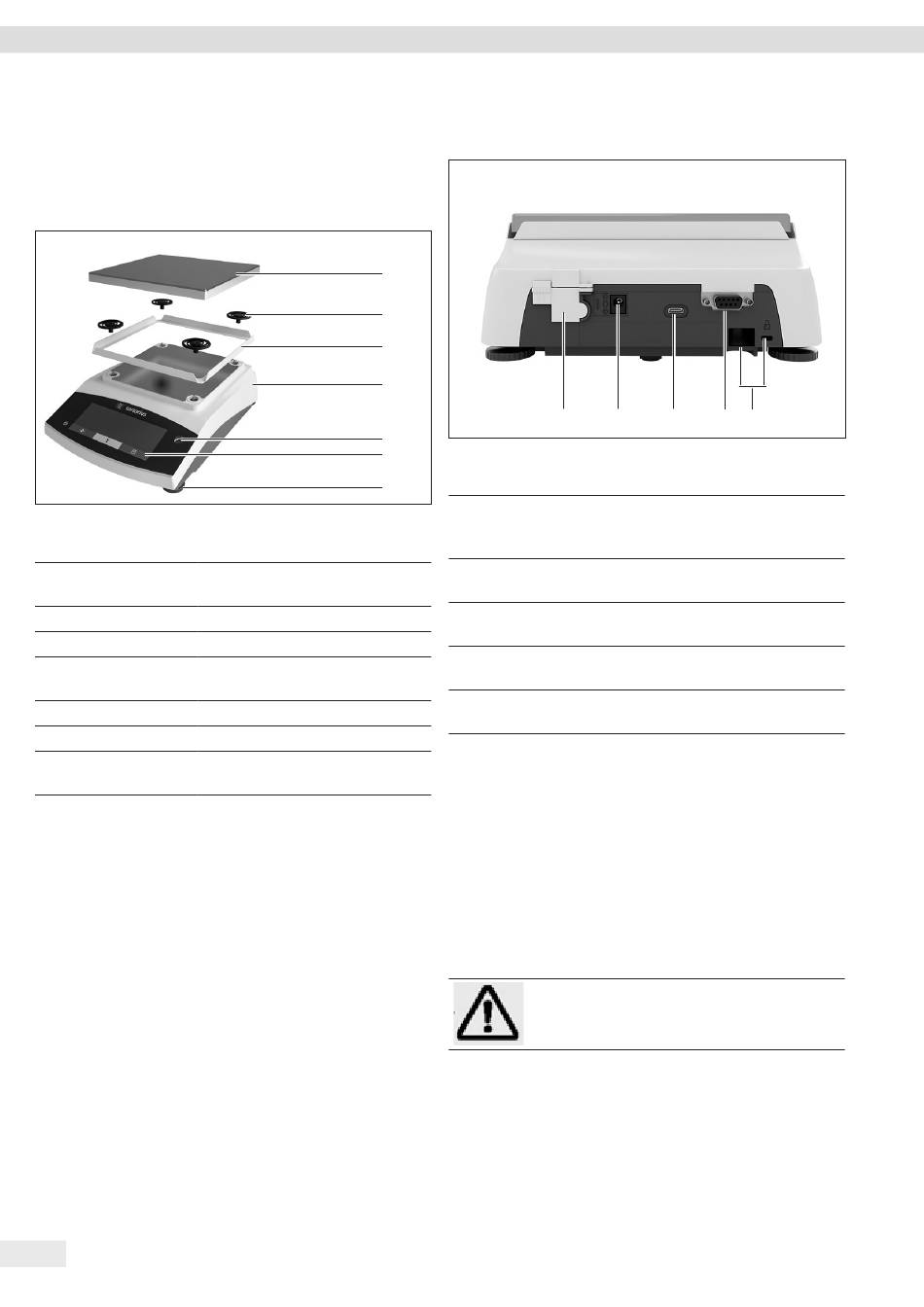

Fig . 1: Precision balance (front view)
Pos. Designation Description
1 Weighing pan For placing the sample on the
balance
2 Shock absorber
3 Frame draft shield
4 Manufacturer's Not visible
ID label
5 Control unit
6 Level
7 Leveling foot Used to level the balance,
manually adjustable
8 Entris ® BCE Operating Instructions
3.2

Device Connections

1
2
3
4
1
5
6
Fig . 2: Precision balance (rear view)
Pos. Designation
7
1 Menu access
switch
2 Power supply
3 USB-C connection For the connection to a printer, PC,
4 RS232 connection 9-pin, for the connection to a
5 Slot
3.3

Conformity-Assessed Devices

Some settings of conformity-assessed models are protected
against user changes, e .g . external calibration for devices in
accuracy class II . This measure is intended to ensure the
suitability of the devices for use in legal metrology .
3.4

Symbols on the Device

Symbol
2 3 4 5
Description
Protects the device from changes
to the device settings . Is sealed for
conformity-assessed devices .
Connection for power supply to the
device
or a second display
printer, PC, or a second display
For attaching an anti-theft device
or a Kensington lock
Meaning
NOTICE! Read the operating
instructions .
