MASTER Wi-Fi OS POWER
After having made all of the connections, provide power to the control panel with MASTER
Wi-Fi OS.
The yellow LED DL6 should come on and the buzzer will emit a sound indicating correct
power.
F -
IDENTIFICATION OF SAFETY DEVICES

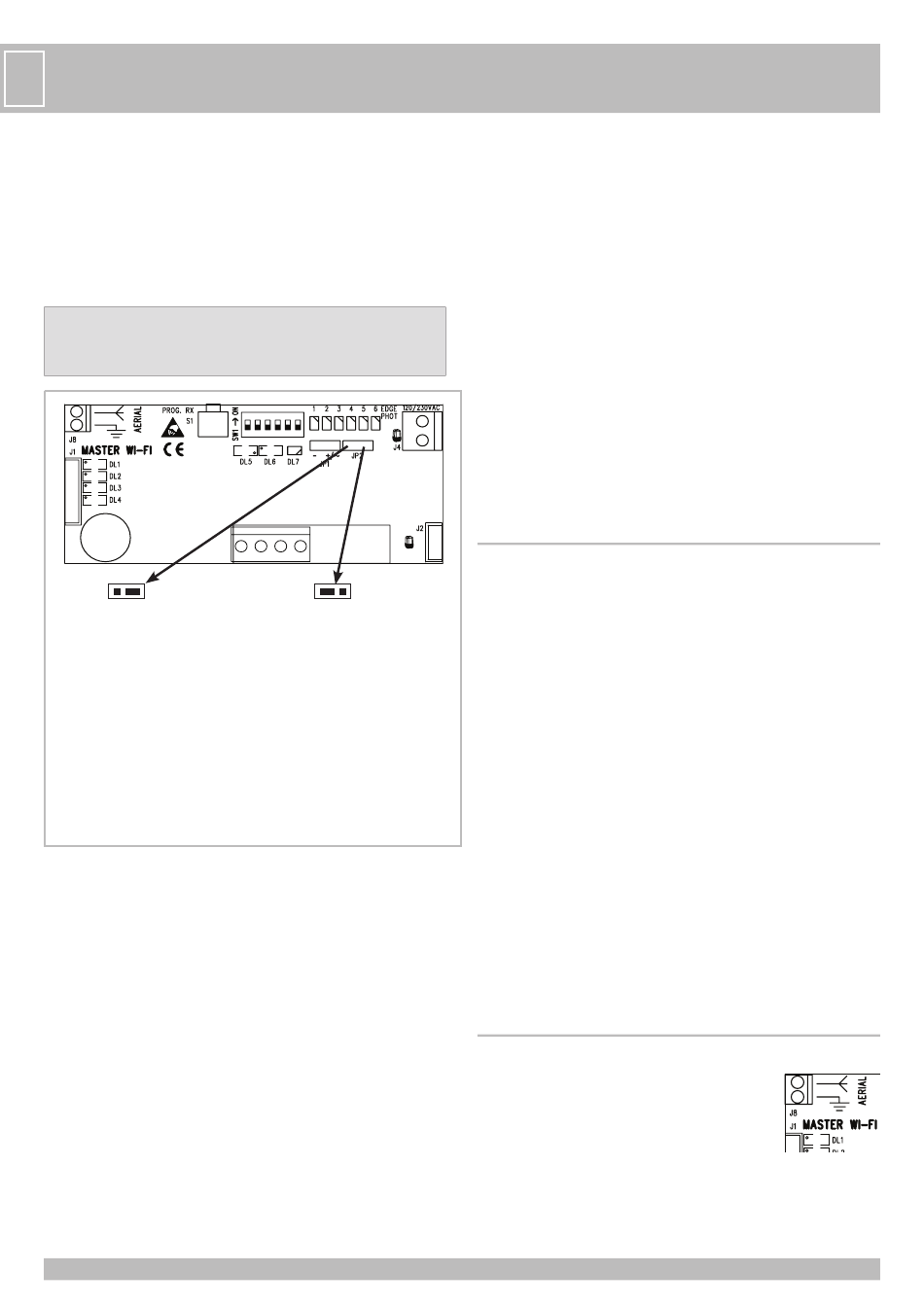

ATTENTION: BEFORE THE SAFETY STRIPS IDENTIFICATION, CHECK IF THE CONTROL
BOARD IS DESIGNED FOR ONE OR TWO INPUTS FOR SAFETY STRIPS CONNECTING.
RUN THE JUMPER JP2 SETTING ACCORDING TO THE NUMBER OF INPUTS FOR SAFETY
STRIPS CONNECTING (Pic. 1).
JP2 DX
FOR CONTROL PANEL WITH 1 INPUT
FOR THE MANAGEMENT OF THE SAFETY
EDGES
EDGE 1 = yellow wire - safety edge in
opening and closing (LED EDGE/PHOT
available from 1 to 6)
Every Wi-Fi safety device must OBLIGATORILY be identified placing only one of the 6 micro-
switches present on its circuit (different for each of the 6 safety devices) in the ON position.
Obviously one pair of photocells is considered one safety device and must therefore have a
receiver and transmitter with the same DIP in the ON position.
IDENTIFY THE CONTAINERS OF THE SAFETY DEVICES WITH THE NUMBER OF THE
ACTIVATED MICRO-SWITCH AND ATTACH THE NUMBERED ADHESIVE STRIP SUPPLIED
TO THE OUTSIDE OF EACH CONTAINER.
The adhesive strip serves as a means of quickly identifying the safety device when it needs
maintenance.
Note: Each safety device is supplied with the micro-switches in the OFF position so that
battery power is not consumed when not in use (if inserted).
Insert the batteries in the Wi-Fi safety devices.
G -
MEMORIZATION OF THE SAFETY DEVICES
After having performed the identification of the safety devices, and provided power with
the batteries, place the micro-switches with the same number of the safety devices on
the MASTER Wi-Fi OS in the ON position to activate the safety devices to be memorized.
Use the following procedure for memorization:
- Push the button PROG RX on the MASTER Wi-Fi OS => dual-color LED EDGE PHOT 1
flashes red for 1 minute (the time needed for memorization).
- Push the button PROG TX on the safety device with micro-switch 1 in the ON
position => on the MASTER Wi-Fi OS the dual-color LED EDGE PHOT 1 flashing red turns
12/24V ac/dc
JP2 SX
FOR CONTROL PANEL WITH 2 INPUTS
FOR THE DIFFERENT MANAGEMENT OF
THE SAFETY EDGES IN OPENING AND
CLOSING
3 safety edges can be assigned for each
of the 2 control panel inputs.
EDGE 1 = yellow wire - safety edge in
opening (LED EDGE/PHOT available from 1 to
3), MICRO-SWITCHES 1-3
EDGE 2 = green wire - safety edge in closing
(LED EDGE/PHOT available from 4 to 6),
MICRO-SWITCHES 4-6
green and a sound from the buzzer indicates that the safety device has been memorized
correctly, immediately the dual-color LED EDGE PHOT 2 begins flashing red.
- If there are no other safety devices to be memorized after one minute the dual-
color LED EDGE PHOT 2will turn off or, push the button PROG. RX 4 times to end
the memorization procedure => all of the dual-color LED EDGE PHOT should be off.
MEMORIZATION OF OTHER SAFETY DEVICES
- After having memorized the first safety device, the dual-color LED EDGE PHOT 2
automatically begins flashing red for 1 minute (the time needed for memorization).
- Push the button PROG. TX on the safety device with micro-switch 2 in the ON
position => on the MASTER Wi-Fi OS the dual-color LED EDGE PHOT 2 flashing red turns
green and a sound from the buzzer indicates that the safety device has been memorized
correctly.
- Follow the same procedure for any other safety devices (up to a maximum of 6).
ADDING OTHER SAFETY DEVICES (UP TO 6 TOTAL)
If after installation the use of further safety devices (PHOTOCELLS OR STRIPS) is desired, to
increase door safety, it is recommended to:
- Turn off power to the door.
- Place the safety device in the desired position and identify it by moving the internal micro-
switch.
- Identify it with the corresponding numbered adhesive strip (see paragraph F -
IDENTIFICATION OF Wi-Fi SAFETY DEVICES).
- Enable the micro-switch of the safety device just added on the MASTER Wi-Fi OS card.
- Return power to the door.
- Follow the memorization procedure and system check as indicated previously.
NOVA Wi-Fi AND VERTIGO Wi-Fi PHOTOCELLS SYSTEM CHECK
- Check that the micro-switch selected on the transmitter TX NOVA Wi-Fi is the same as that
selected on the receiver RX NOVA Wi-Fi (example 1 ON).
- Proper function of the TX NOVA Wi-Fi is shown by the green LED which comes on for 10
seconds.
- Push and release the button S3 "PROG. TX" on the NOVA Wi-Fi receiver (it activates for
3 minutes to perform the alignment procedure). If the photocells are already aligned the
red LED emits a constant light. If the red LED is off or emits a flashing light, perform the
alignment until it emits a constant light.
- After the alignment check by placing an obstacle that the red LED turns off and that at the
same time the dual-color LED EDGE PHOT associated with it during memorization shines
green on the MASTER Wi-Fi OS for the time that the obstacle is present.
- On the MASTER Wi-Fi OS card, LED DL3 should also be off indicating a proper exchange
of the dedicated input with the PHOT on the control panel.
- Repeat the procedure on the other installed NOVA Wi-Fi photocells.
- Perform a function check of all the installed photocells, activating the movement of the
automation and checking that by placing an obstacle the automation stops/reverses when
closing, or stops/continues to open when opening.
1
TOUCH Wi-Fi STRIP SYSTEM CHECK
After having calibrated the TOUCH Wi-Fi strip correctly:
- Push the contact of a TOUCH Wi-Fi strip (for example: safety device number 3).
- On the MASTER Wi-Fi OS check that the corresponding LED EDGE PHOT 3 flashes green
and that the paired LED DL2 momentarily turns off and then turns on.
ATTENTION: after receiving the first signal, other signals are ignored for 2 seconds. If there
is a signal in these 2 seconds it will be from the LED EDGE PHOT 3 which turns green.
- Repeat the LED activation check on the MASTER Wi-Fi OS pushing the other TOUCH Wi-Fi
strips installed.
- Perform a final check of all of the strips installed, activating the movement of the
automation and ensuring that upon impact with the strip the automation stops/reverses
movement.
ANTENNA 868MHz
In order to communicate with 868 MHz Wi-Fi safety devices,
MASTER Wi-Fi OS is equipped with a piece of electric wire that acts
as an antenna linked to the J8 terminal. If it is necessary to improve
the radio signal (for example, with MASTER Wi-Fi OS inserted in
the SUPER motors or MASTER Wi-Fi OS installed in a metallic
connector), connect the 868.3 MHz antenna (code ACG5451) to
the J8 terminal, ensuring the correct connection of the central wire and the earth wire, and
position it in such a way so that it is "in view" of all safety devices.
