RIB MASTER Wi-Fi OS Bedienungsanleitung Seite 18

G
B
VERTIGO Wi-Fi 8
Code ACG8042
VERTIGO Wi-Fi 10
Code ACG8043
The Wi-Fi System complies with the standard EN 13849-2:2013 and together with a
RIB electronic control panel is a PL "c" Category 2 protection device.
The Wi-Fi System through the use of the MASTER Wi-Fi OS card permits the
construction of a system with NOVA Wi-Fi photocells and TOUCH Wi-Fi strips which
also attach to the moveable panel without the need for a cable collector.
The system constantly monitors the presence of the various safety devices and the status
of the batteries, completely meeting the need for active safety for all types of openings.
Using the RIB electronic control panel it is possible for the system to perform an auto test
as required by current standards.
Each radio-controlled safety device has its own internal identification code which
distinguishes it from the others.
REFERENCE STANDARDS FOR AUTOMATIC DOORS AND GATES
The installer must ensure that the Wi-Fi System is connected as specified by the standard
EN 12453 point 5.1.2 to an electronic control panel capable of performing an operations
check before closing (AUTO TEST).
Therefore, the use of RIB devices permits system installation in compliance with current
Standards and Directives.
Once machine installation is complete it must be ascertained that it complies with standard
EN 13241-1.
RIB may not be held responsible for any damage caused by improper, wrong or unreasonable
use of the product.

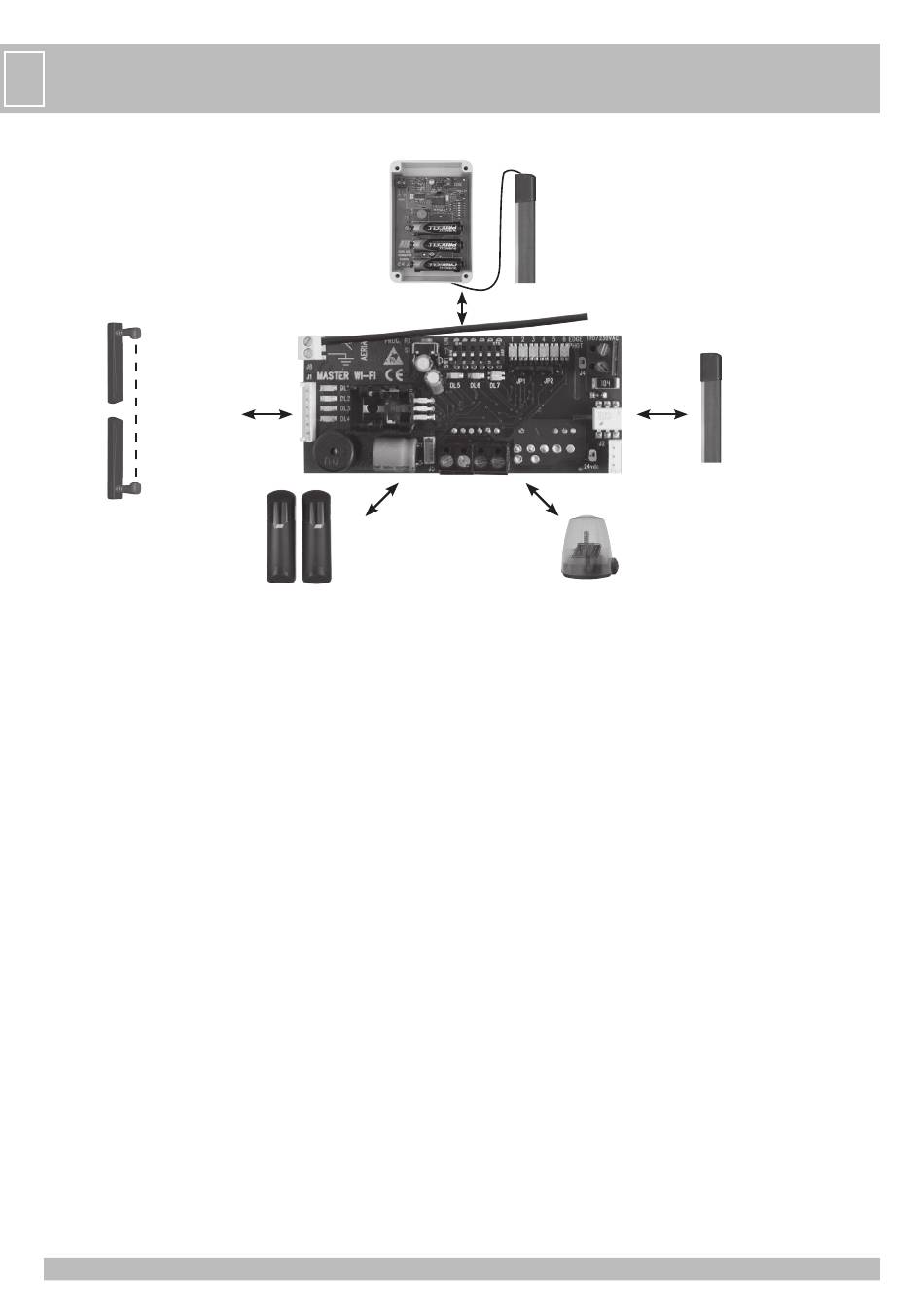

MASTER Wi-Fi
This is the heart of the system: it runs all of the control (433,92 MHz), safety and signaling
(868,3 MHz) devices programmed in the installation phase.
MASTER Wi-Fi is available in 4 versions:
- MASTER Wi-Fi with connection couplings (code ACG6094), for use with all non-CRX
RIB electronic control panels.
- MASTER Wi-Fi with terminal block (code ACG6099), for use with other brands or RIB
CRX panels.
- MASTER Wi-Fi FR with terminal block (code ACG6150), for use with other brands or
RIB CRX panels.
- MASTER Wi-Fi OS with terminal block (code ACG6152), for use with other brands or
RIB CRX panels.
TX RED
Code ACG6202
NOVA Wi-Fi
Code ACG8037
18
TOUCH
Code ACG3015
or other brands mechanical or resistive strip
SPARK Wi-Fi
Code ACG7064
SAFETY DEVICES
MASTER Wi-Fi OS can operate up to 6 safety devices (NOVA Wi-Fi + VERTIGO Wi-Fi +
TOUCH Wi-Fi + TX RED) at the same time.
- NOVA Wi-Fi photocells (code ACG8037): can be connected to a TOUCH mechanical strip
(code ACG3015) or a resistive strip on both the photocell transmitter and the photocell
receiver.
- VERTIGO Wi-Fi photocells (VERTIGO Wi-Fi 8 code ACG8042 - VERTIGO Wi-Fi 10 code
ACG8043): wireless vertical photocells substituting the sensitive edge.
- TOUCH Wi-Fi strip (code ACG3016), with built-in transmitter/receiver.
- TX RED (code ACG6202): radio transmitter to manage mechanical or resistive safety strips.
CONTROLS
It is also possible to connect a wired controls with N.O. contact (key selectors, push-
buttons...).
VISUAL SIGNALS
MASTER Wi-Fi OS can operate one or more SPARK Wi-Fi Blinkers (868,3 MHz) code
ACG7064.
MASTER Wi-Fi OS has LEDs for monitoring system status and for identifying photocells or
strips with low or exhausted batteries.
SOUND SIGNALS
MASTER Wi-Fi OS has a buzzer which signals installation phases and a warning if the
batteries are low or exhausted or, acts as an alarm in case one of the devices is not
functioning.
TOUCH Wi-Fi
Code ACG3016
