- CONNECTING OF THE MASTER Wi-Fi OS
ATTENTION: The use of the product inside of metal containers can cause a system-malfunction. It is therefore recommended in these cases to add the aerial code ACG5451
to apply to the metal casing for a perfect reception/transmission of the signals.
ATTENTION: ACTIVATE ON CONTROL PANELS THE PRE-FLASHING FUNCTION (IF AVAILABLE).
It is strongly advisable to avoid using an automatic closing time delay, not longer than 1 minute.
Verify the presence of protection fuse in series on secondary of the control panel. In case it is not available, please connect a T 200 mA delayed fuse in series on the MASTER
power supply.
- Turn off power to the automation control panel.
NOTE: The opening of the gate occurs 2 seconds after receiving a push button command. That is done to allow the MASTER Wi-Fi OS card to verify the presence and correct functioning of
the memorized safety devices.

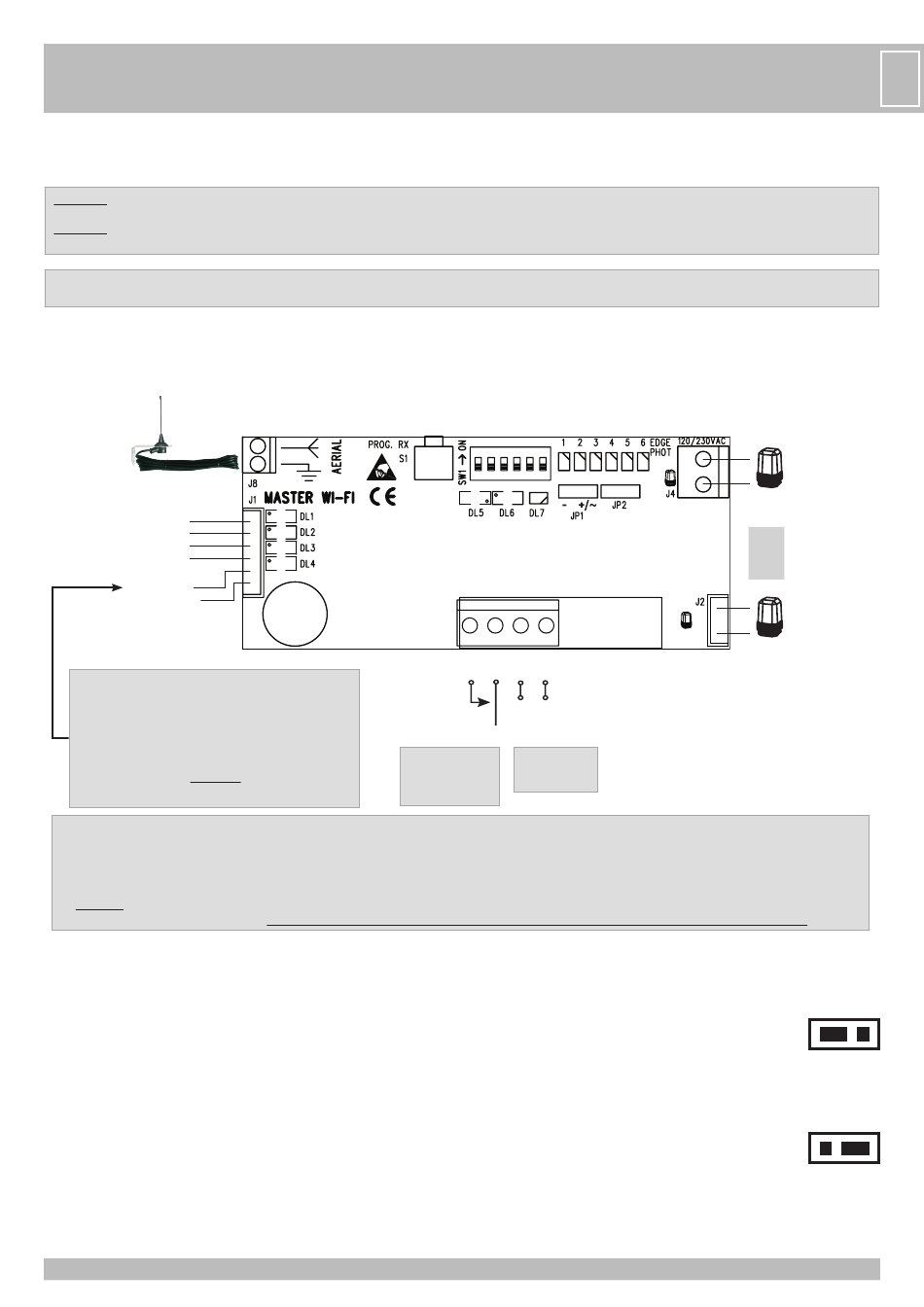

EDGE 2
green wire
COM gray wire
EDGE 1
yellow wire
PHOT.N.C. black wire
CONTROL BUTTON
white wire
A/D+ TEST brown wire
The Wi-Fi system is operating normally if he handles all
the wired controls (through its white wire).
In case of using radio receivers and wired controls (and
therefore external to the Wi-Fi system), for a correct
functioning of the system, these commands must be
connected through the white wire of the MASTER Wi-Fi.
* OBLIGATORY connection for panels with a 120/230V ac blinker output
** OBLIGATORY connection for panels with a 12/24V ac/dc blinker output. ATTENTION: CHECK POLARITY
!
The connection is compulsory also in those cases where the blinker is not installed in the system.
ATTENTION: Always connect the control panel blinker output to the MASTER Wi-Fi OS card with one of the dedicated terminals, depending on whether the blinker is 230V or connected
to the wires of the J2 connector for 12/24V. If the connection is not made the door will not work and the buzzer emits 4 sounds indicating that the connection is missing.
EDGE 2 INPUT (gray wire COM, yellow wire EDGE 2) dedicated to the safety strip device.
Input enabled only with JP2 on SX.
Attention: any wire jumper present on the SAFTETY STRIPS terminals of RIB control panels
must be removed.
EDGE 1 INPUT (gray wire COM, yellow wire EDGE 1) dedicated to the strip safety device.
Attention: any wire jumper present on the COM-EDGE terminals of control panels must be
removed.
PHOTOCELL INPUT (gray wire COM, black wire PHOT) dedicated to
the photocell safety devices.
Attention: any wire jumper present on the COM-PHOT terminals of control panels must
be removed.
CONTROL BUTTON (gray wire COM, white wire N.O. BUTTON)
Disconnect every wired command from the control panel and connect it to this white wire
of MASTER Wi-Fi OS.
4 3 2 1
-
+
COM
12/24V ac/dc
K.BUTTON
4 3 2+ 1-
Total opening Power feed
control contact 12/24V ac/dc
COM-OPEN/K
CONNECTION OF THE AUTOTEST INPUT (brown wire A/D+ TEST) for compliance with
standard EN 13849-2:2013
- If control panel used is equipped with autotest place jumper JP1 on
MASTER Wi-Fi OS paying attention to the control panel AUTOTEST
power supply - negative or positive/alternate (see relative instructions).
- Connect the auto test output of the control panel to the brown wire of
the MASTER Wi-Fi OS in order to be able to control the system at the
end of every complete automated opening.
- Closing will only occur when the MASTER Wi-Fi OS card has passed
the control test.
- If the MASTER Wi-Fi OS card control test fails, the control panel will
block the automation, the dual-color LED on the MASTER Wi-Fi OS
card indicates a safety
outage, alternately flashing red and green.
The buzzer emits an alternating sound for 1 minute to signal the
problem.
The alarm status of the buzzer comes on again for 1 minute when a control is given.
If the panel is not equipped with an auto test, the control test is ignored.
