Electrical Connections, Power Supply And Output Cable - MICRO-EPSILON optoCONTROL 1201 Betriebsanleitung

Installation
5.2
The operating voltage is preferably connected via a shielded cable, e.g. via the supply cable PC1200-5.

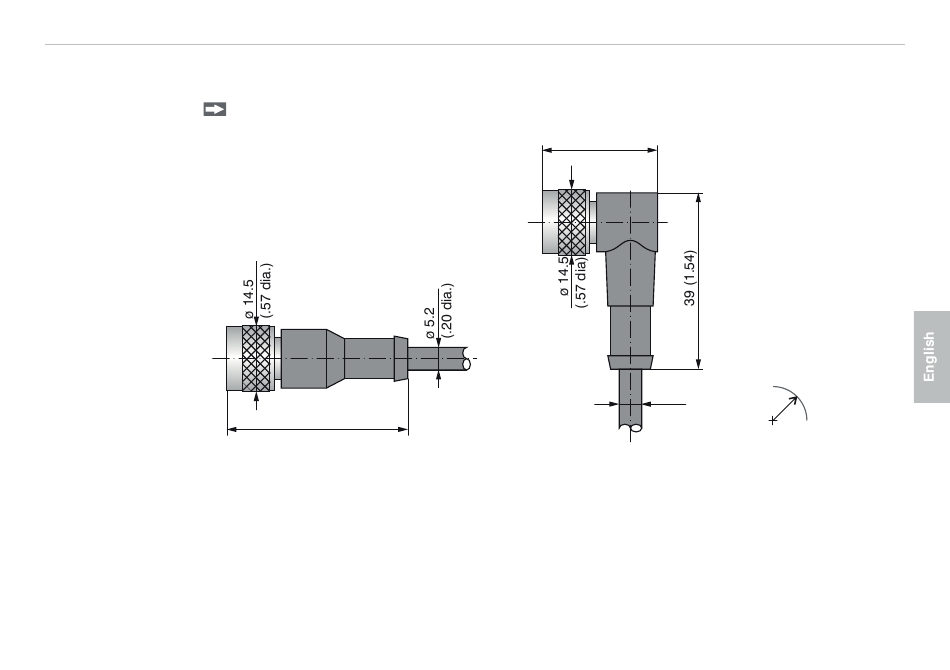

Fig. 6 PC1200-5
optoCONTROL 1200/1201

Electrical Connections, Power Supply and Output Cable

Connect the cable shield to a ground terminal in close proximity to the power supply unit.
41.5 (1.63)
26.5 (1.04)
40
ø 5.2
(.20 dia.)
Fig. 7 PC1200/90-5
Bending radius
PC1200:
minimal 52 mm
Page 45
