Installation instructions, only for experts
6. Place the cover of the housing on the upper edge of the housing base
and turn the cover of the housing downwards until it engages audibly.
7. Refit the temperature selector 1. Note the flat section of the slide-in
shaft when fitting.

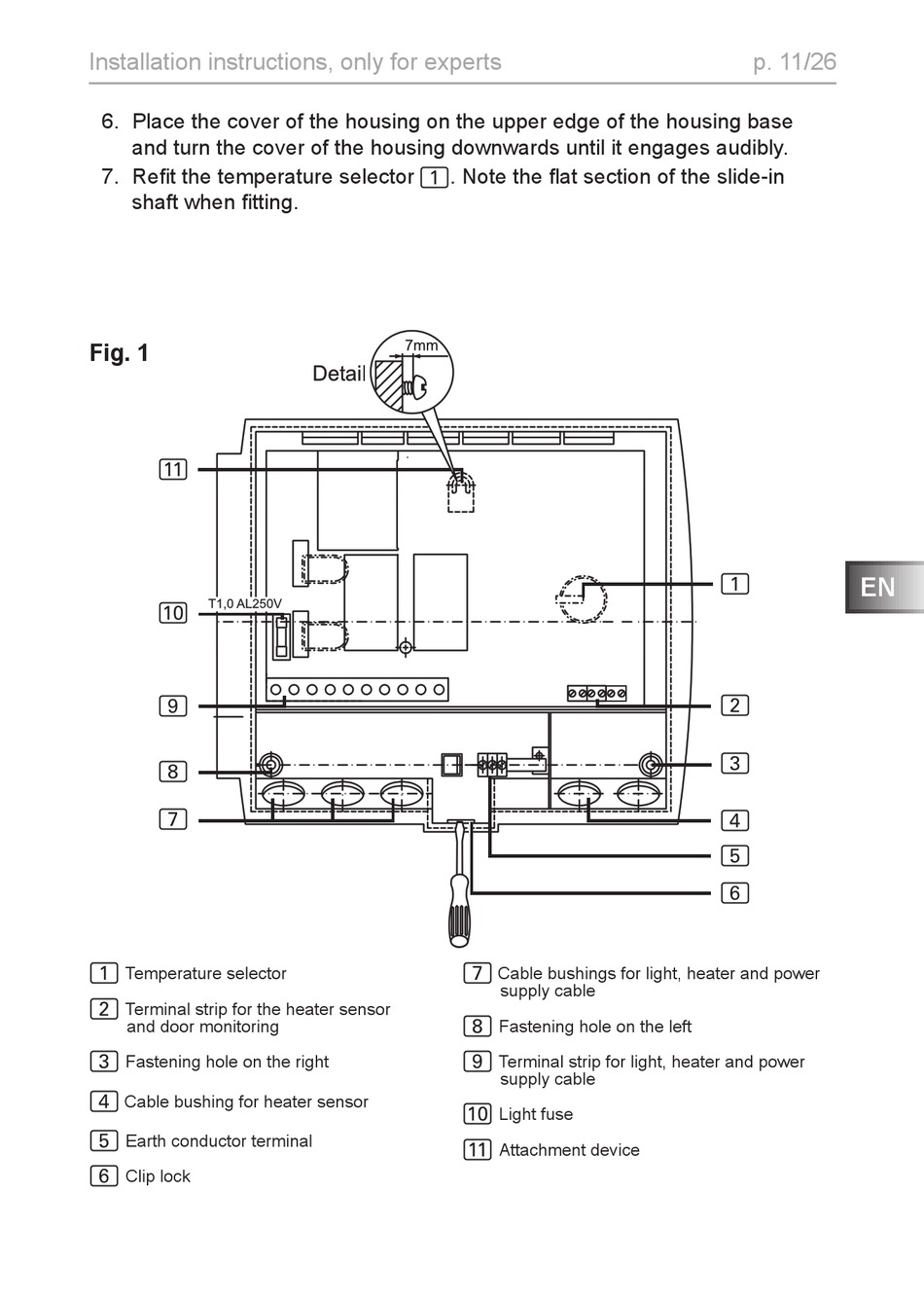

Fig. 1
b
a
9
8
7
Temperature selector
1
Terminal strip for the heater sensor
2
and door monitoring
Fastening hole on the right
3
Cable bushing for heater sensor
4
Earth conductor terminal
5
Clip lock
6
Cable bushings for light, heater and power
7
supply cable
Fastening hole on the left
8
Terminal strip for light, heater and power
9
supply cable
Light fuse
a
Attachment device
b
