DUO, DUO 2V, DUO 2

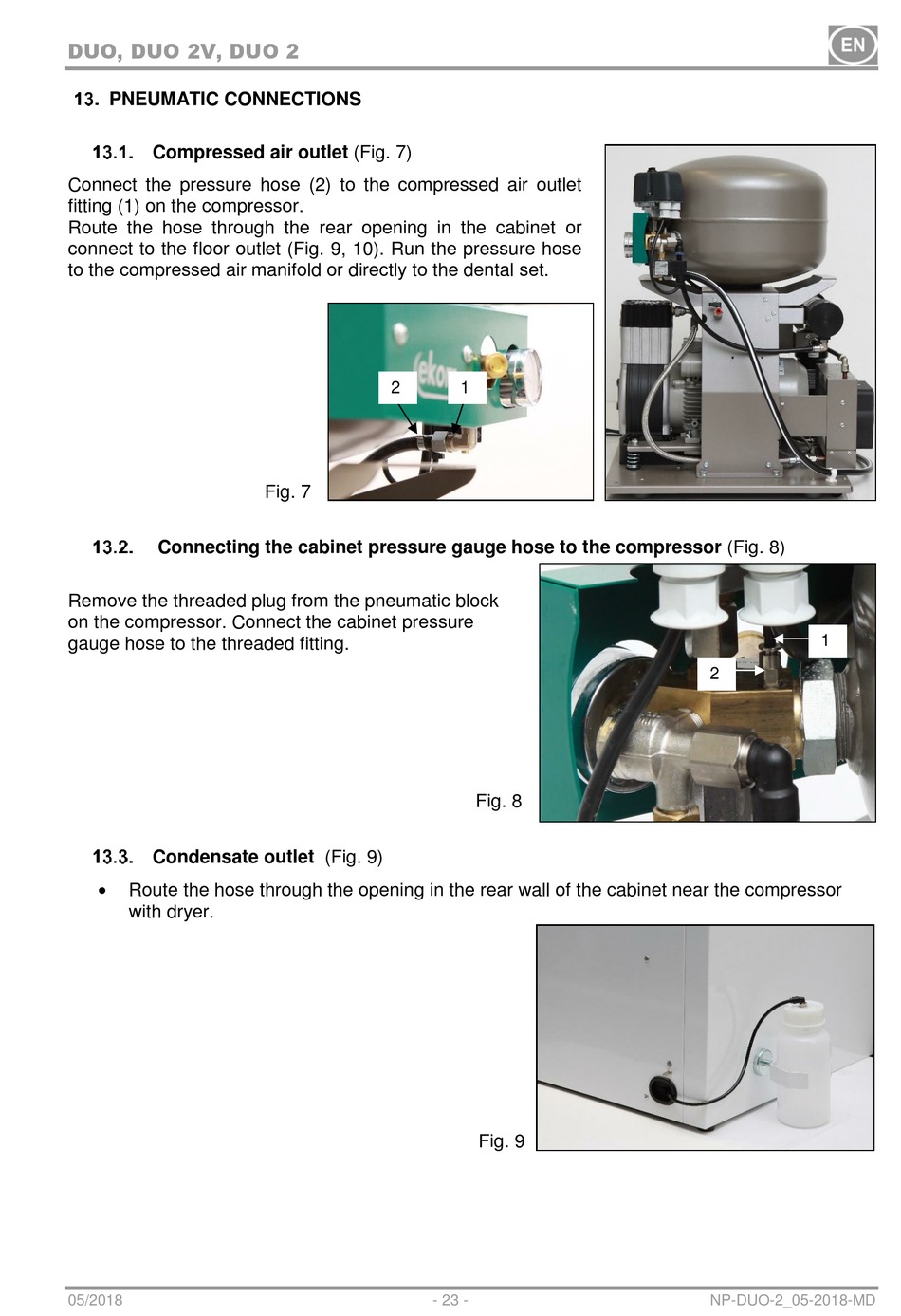

PNEUMATIC CONNECTIONS

Compressed air outlet (Fig. 7)
Connect the pressure hose (2) to the compressed air outlet
fitting (1) on the compressor.
Route the hose through the rear opening in the cabinet or
connect to the floor outlet (Fig. 9, 10). Run the pressure hose
to the compressed air manifold or directly to the dental set.
Connecting the cabinet pressure gauge hose to the compressor (Fig. 8)
Remove the threaded plug from the pneumatic block
on the compressor. Connect the cabinet pressure
gauge hose to the threaded fitting.
Condensate outlet (Fig. 9)

Route the hose through the opening in the rear wall of the cabinet near the compressor
with dryer.
05/2018
2
Fig. 7
- 23 -
1
Fig. 8
Fig. 9
1
2
NP-DUO-2_05-2018-MD
