Vacuum connector
(Fig. 10)
The suction pump is equipped with suction and discharge hoses. Hoses connected to the inlet/outlet
to and from the suction aggregate are routed along the rear wall of the cabinet to its lower part.
Suction pump hoses may be connected to the piping in the floor or routed through the rear opening
in the cabinet (10). Connect the suction hose to the device and the discharge hose to the piping
routed outside the operator's work area. A noise silencer can be added at the suction unit outlet to
reduce the noise level caused by air passing through the hose (see Chapter 8.2. Accessories). A
noise silencer with a bacteriological filter must be added if the air outlet from the suction unit is
vented to an indoor area.

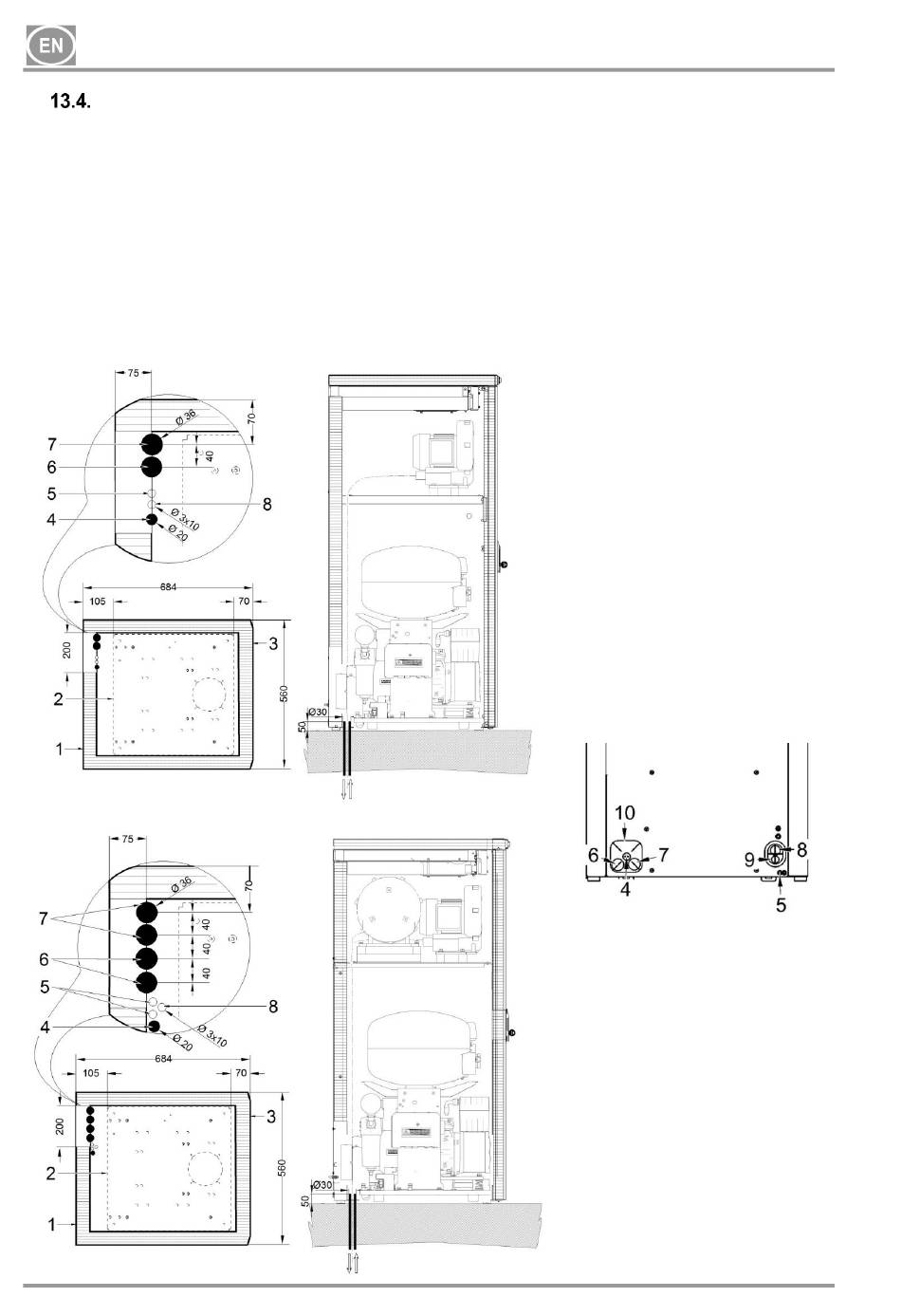

Fig. 10A – DUO, DUO 2V installation (distribution systems in the floor)
Fig. 10B – DUO 2 installation (distribution systems in the floor)
NP-DUO-2_05-2018-MD - 24 -
DUO, DUO 2V, DUO 2
1 - Outline of the box
2 - Outline of the base
3 - Front section - door
4 - Compressed air connection
G3/8"
5 - Suction unit control input
2A x 0.75
6 - Suction unit intake
7 - Suction unit discharge
8 - Power supply input
230 V/50(60) Hz, 3G x 1.5
9 – Condensate drain for version
with dryer
- all dimensions are in millimetres
- distance from the rear wall of the
product
from an impe od prekážky - steny
(Connected via the opening in
min. 100mm
the rear of the cabinet)
1 - Outline of the box
2 - Outline of the base
3 - Front section - door
4 - Compressed air connector
G3/8"
5 - Control voltage feed
for suction unit 2A x 0.75
6 - Intake + discharge from 1st
suction unit
7 - Intake + discharge from 2nd
suction unit
(DUO 2)
8 - Power supply feed
230 V/50(60) Hz 3G x 1.5
- all dimensions in millimetres
- spacing from wall
min. 100 mm
