Signal flow chart

The signal flow chart shows you how the synthesizer and effects are routed. The signal flow chart is
shown in the About Box, which you open by clicking the Cakewalk/Z3TA+ logo, or by selecting
About Z3TA+ 2 on the Options menu.
Figure 8. Click the logo to show the About Box
A
A. Cakewalk/Z3TA+ logo

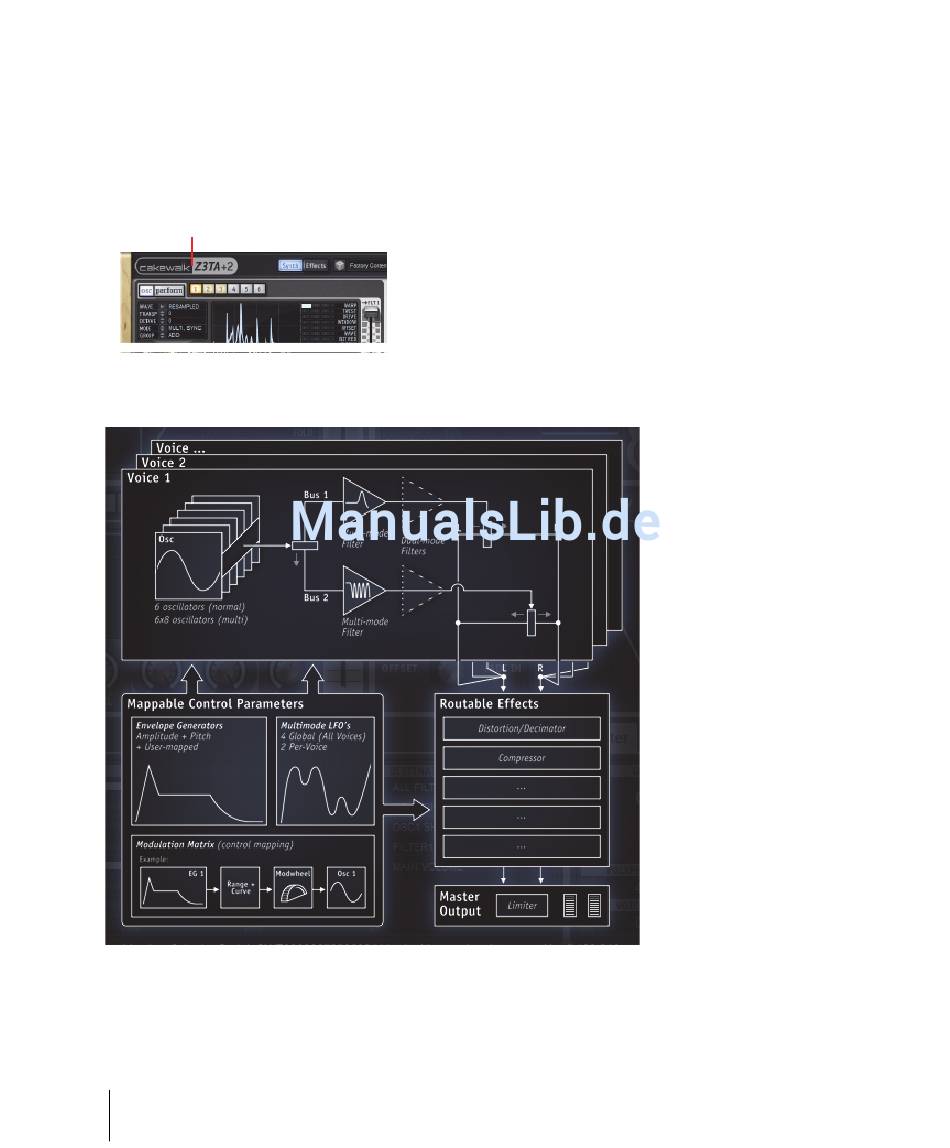

Figure 9. Signal Flow chart in the About Box
