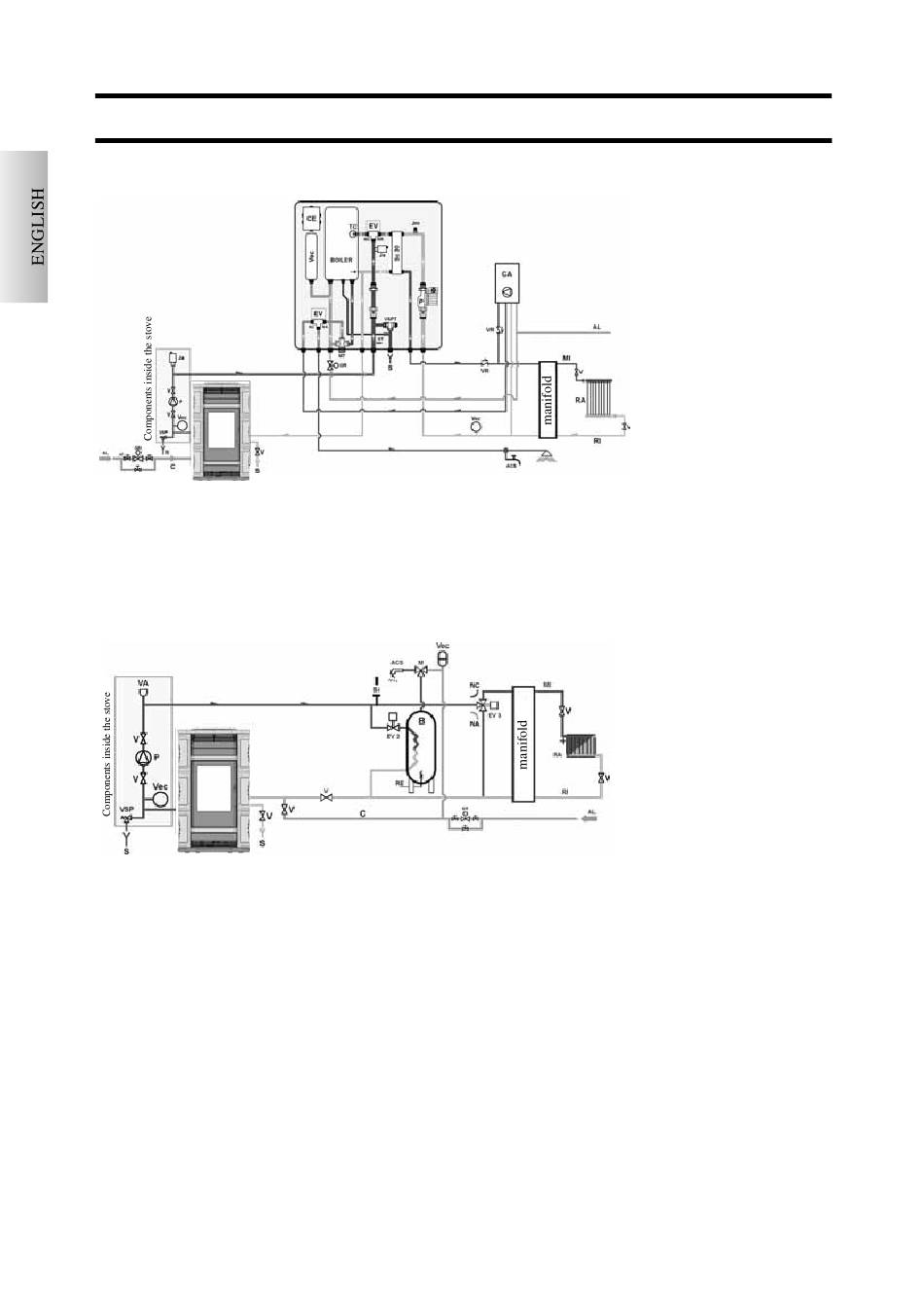

HYDRAULIC CONNECTIONS
Storage system for producing household hot water with an IDROKIT water kit combined with a boiler.
This layout is indicative only: your plumber will be responsible for the ultimate installation.
System as the sole source of heating, producing household hot water with a boiler.
This layout is indicative only: your plumber will be responsible for the ultimate installation.
NOTE:
The installer must assess the possible need for an additional expansion tank, depending on the type of system being serviced
WARNING:
during the production of domestic the power to the radiators decreases temporarily.
ACCESSORIES:
In the diagrams referred to in the previous pages the use of accessories available from the Edilkamin catalogue has been
assumed.
Individual spare parts are also available (exchanger, valves, etc). For information, please contact your local dealer.
1. START UP (DEALER)
Make sure the plumbing system has been properly executed and is equipped with an expansion tank which is sufficient to gua-
rantee safety. The presence of the tank built in to the stove does NOT guarantee adequate protection from thermal expansion
experienced by the water inside the system.
Power on the stove electrically and run the test cold.
Carry out the filling of the system through the inlet valve (it is recommended that you maintain a pressure of approximately1 bar)
During the loading phase, "bleed" the pump and open the manual vent (see page 38)
This operation must also be performed subsequently on a periodic basis.
