EdilKamin BASIC Installations-, Betriebs- Und Wartungsanleitung Seite 27

ESPRIT - MAGIC - PRESTIGE
Ø 8
68
BASIC
60

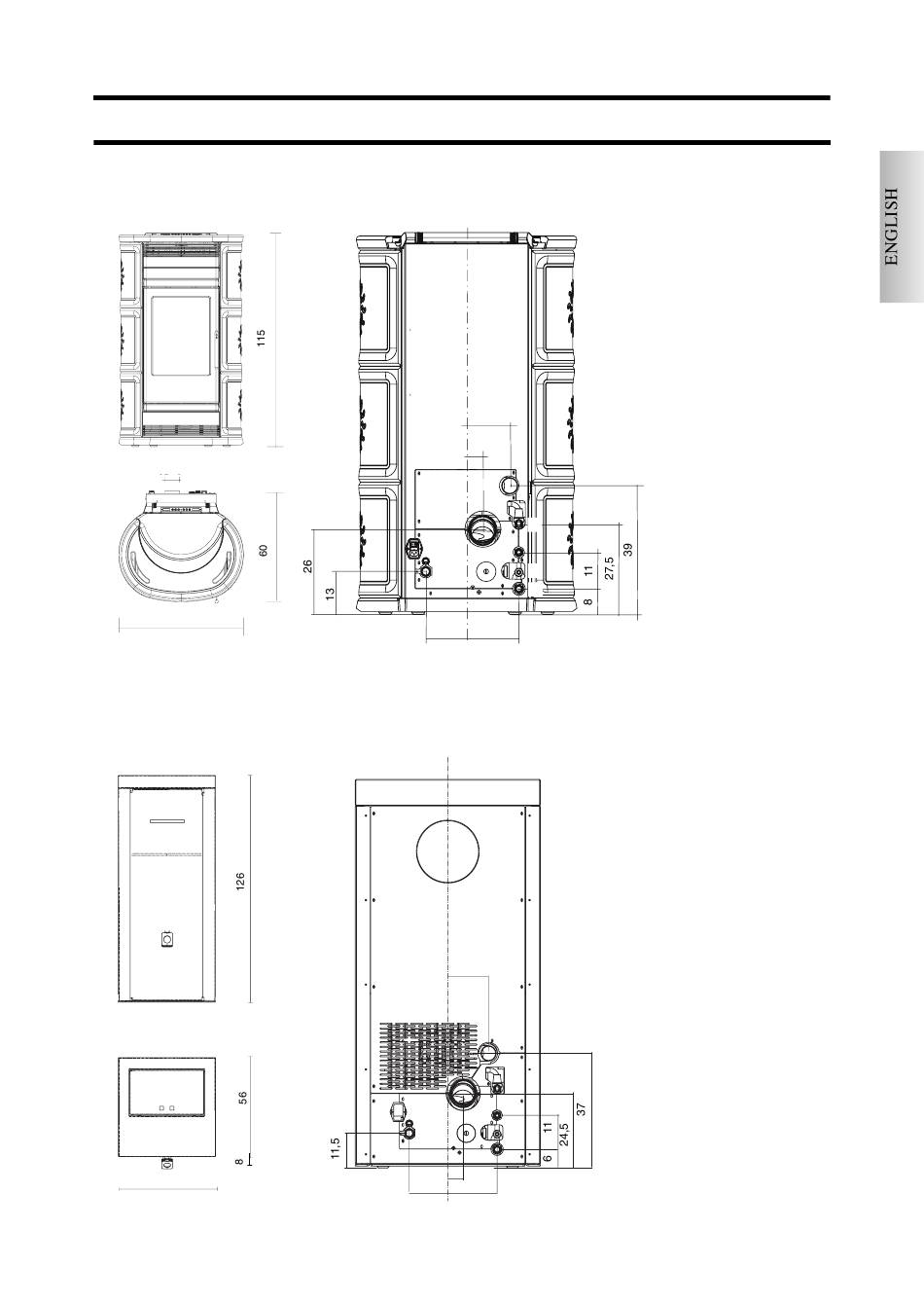

DIMENSIONS
13
5
A
G
B
C
H
D
F
E
12,5 16
13
A
B
G
C
H
D
F
E
5
12,5 16
27
A
= combustion air intake Ø 5 cm
B = ½ MF safety valve
C = ½ M water level make-up
D = water drainage tap
E
= ¾ M system return
F
= ¾ M plant air delivery
G
= Ø 8 cm smoke outlet
H
= thermostat reset button
A
= combustion air intake Ø 5 cm
B
= ½ MF safety valve
C = ½ M water level make-up
D = water drainage tap
E = ¾ M system return
F
= ¾ M plant air delivery
G
= Ø 8 cm smoke outlet
H
= thermostat reset button
