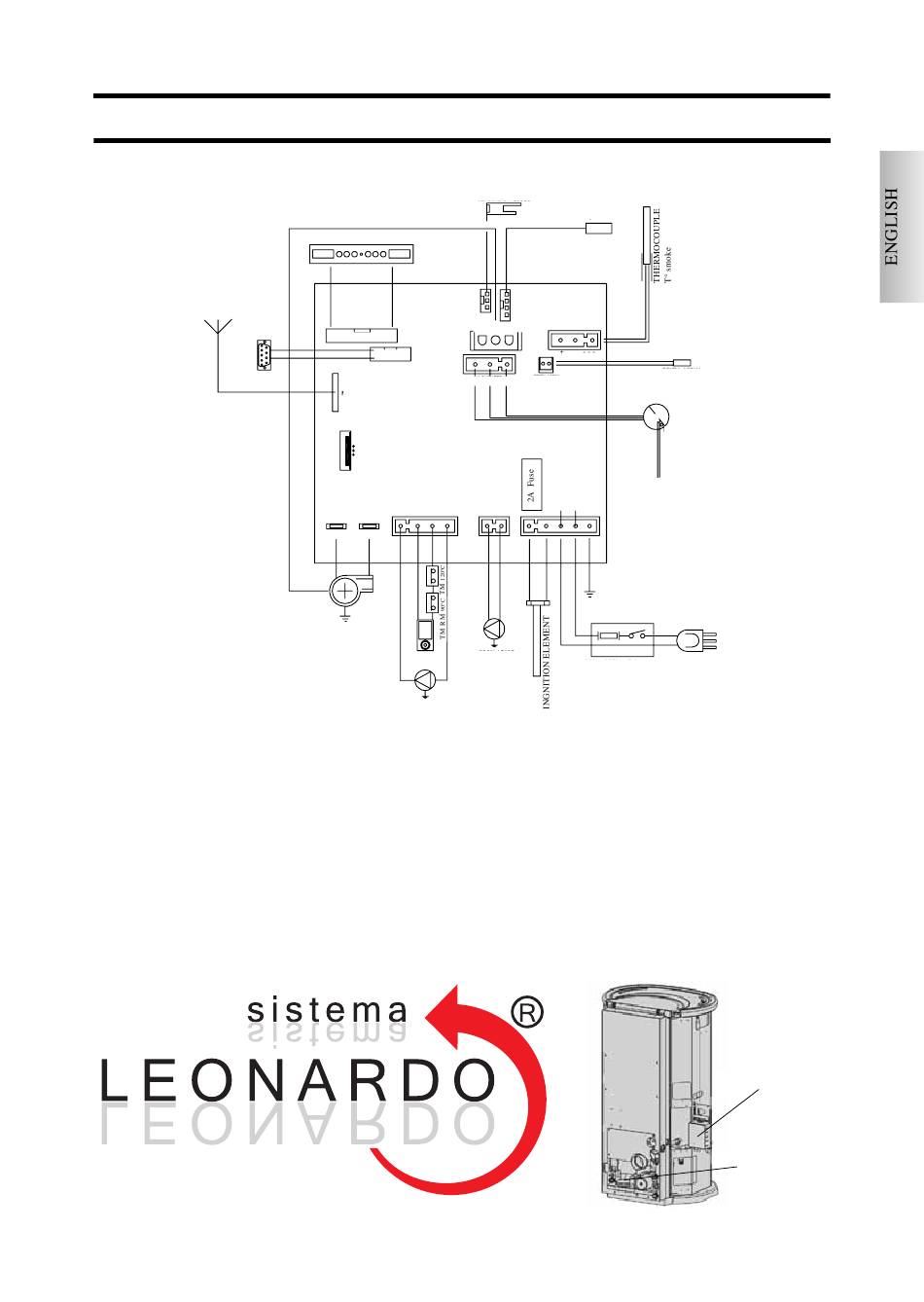

ELECTRONIC CIRCUIT BOARD
Antenna
(Basic)
RS232
socket
The BASIC, ESPRIT - MAGIC and PRESTIGE pellet thermo-stoves are equipped with the LEONARDO® SYSTEM, which provi-
des for optimal combustion.
LEONARDO® ensures excellent operation thanks to two sensors measuring the pressure level in the combustion chamber and
smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous in order to correct opera-
tion anomalies in real time.
The LEONARDO® system offers constant combustion, automatically regulating the draft based on the characteristics of the chim-
ney flue (bends, length, shape, diameter, etc..) and environmental conditions (wind, humidity, atmospheric pressure, installations at
high altitude, etc.). The standards for installation must be respected.
LEONARDO ® system is also able to recognise the type of pellets and automatically adjust the flow moment by moment to ensure
the required level of combustion (use wood pellets with a diameter of approximately 6 mm).
N° M2010A000084
FEATURES
Flow sensor
CONSOLLE
RPM smoke
Panel control
RS232
Vacuum gauge
Tx/sx radio module
(Basic)
backup battery
Smoke expulsion
motor
Boiler circulator
Screw
(optional)
Outlet pump
29
Optional
boiler probe
Termocoppia
Water outlet probe
Vacuum gauge
P2
P1
Reading points
230 Vac Power
50Hz +/-10%
2A Fuse
Stove rear socket
Control board
Vacuum gauge
