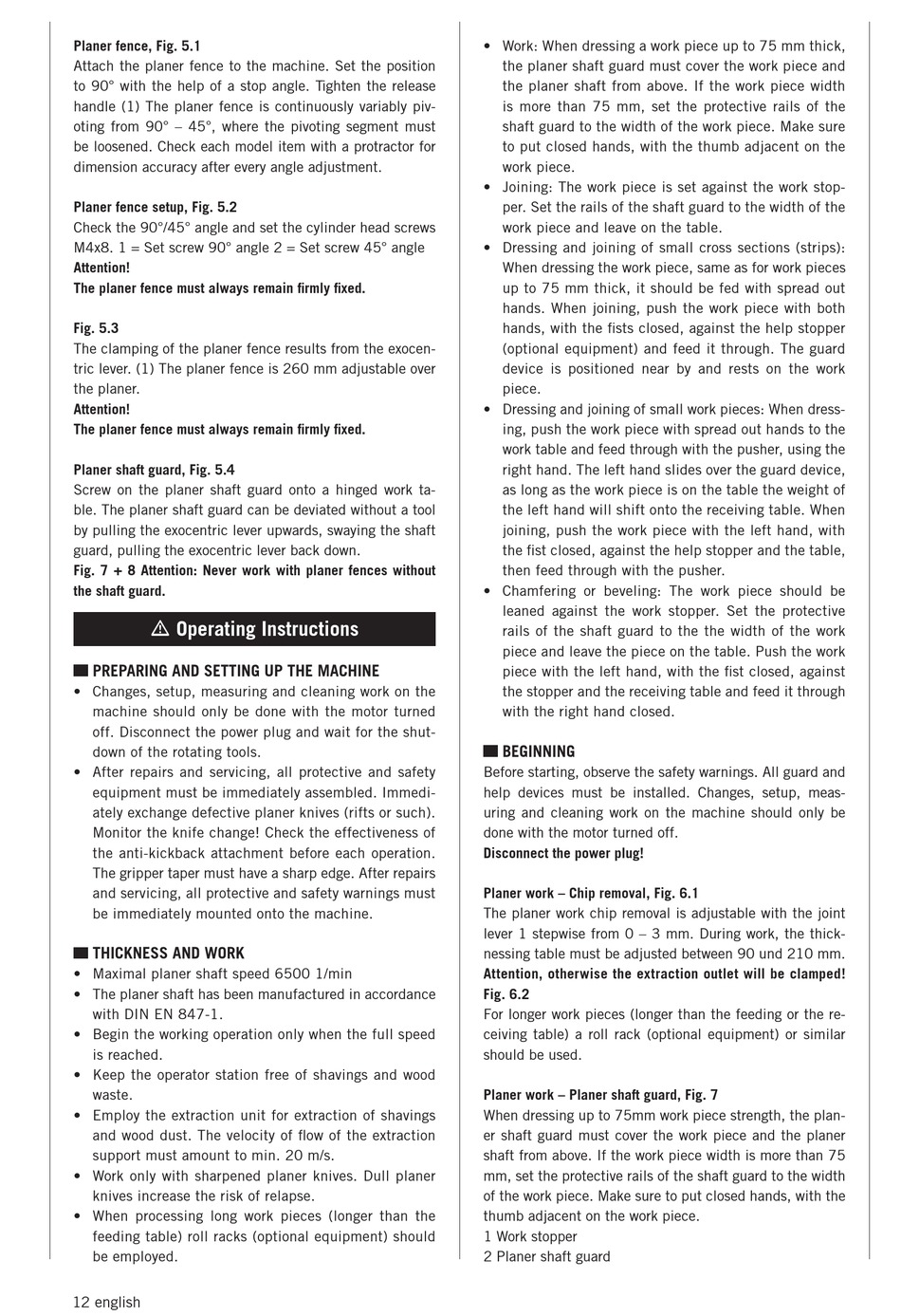

Planer fence, Fig. 5.1
Attach the planer fence to the machine. Set the position
to 90° with the help of a stop angle. Tighten the release
handle (1) The planer fence is continuously variably piv-
oting from 90° – 45°, where the pivoting segment must
be loosened. Check each model item with a protractor for
dimension accuracy after every angle adjustment.
Planer fence setup, Fig. 5.2
Check the 90°/45° angle and set the cylinder head screws
M4x8. 1 = Set screw 90° angle 2 = Set screw 45° angle
Attention!
the planer fence must always remain firmly fixed.
Fig. 5.3
The clamping of the planer fence results from the exocen-
tric lever. (1) The planer fence is 260 mm adjustable over
the planer.
Attention!
the planer fence must always remain firmly fixed.
Planer shaft guard, Fig. 5.4
Screw on the planer shaft guard onto a hinged work ta-
ble. The planer shaft guard can be deviated without a tool
by pulling the exocentric lever upwards, swaying the shaft
guard, pulling the exocentric lever back down.
Fig. 7 + 8 Attention: never work with planer fences without
the shaft guard.
m Operating Instructions
PrePArIng And settIng uP tHe mAcHIne
• Changes, setup, measuring and cleaning work on the
machine should only be done with the motor turned
off. Disconnect the power plug and wait for the shut-
down of the rotating tools.
• After repairs and servicing, all protective and safety
equipment must be immediately assembled. Immedi-
ately exchange defective planer knives (rifts or such).
Monitor the knife change! Check the effectiveness of
the anti-kickback attachment before each operation.
The gripper taper must have a sharp edge. After repairs
and servicing, all protective and safety warnings must
be immediately mounted onto the machine.
tHIcKness And WOrK
• Maximal planer shaft speed 6500 1/min
• The planer shaft has been manufactured in accordance
with DIN EN 847-1.
• Begin the working operation only when the full speed
is reached.
• Keep the operator station free of shavings and wood
waste.
• Employ the extraction unit for extraction of shavings
and wood dust. The velocity of flow of the extraction
support must amount to min. 20 m/s.
• Work only with sharpened planer knives. Dull planer
knives increase the risk of relapse.
• When processing long work pieces (longer than the
feeding table) roll racks (optional equipment) should
be employed.
12 english
• Work: When dressing a work piece up to 75 mm thick,
the planer shaft guard must cover the work piece and
the planer shaft from above. If the work piece width
is more than 75 mm, set the protective rails of the
shaft guard to the width of the work piece. Make sure
to put closed hands, with the thumb adjacent on the
work piece.
• Joining: The work piece is set against the work stop-
per. Set the rails of the shaft guard to the width of the
work piece and leave on the table.
• Dressing and joining of small cross sections (strips):
When dressing the work piece, same as for work pieces
up to 75 mm thick, it should be fed with spread out
hands. When joining, push the work piece with both
hands, with the fists closed, against the help stopper
(optional equipment) and feed it through. The guard
device is positioned near by and rests on the work
piece.
• Dressing and joining of small work pieces: When dress-
ing, push the work piece with spread out hands to the
work table and feed through with the pusher, using the
right hand. The left hand slides over the guard device,
as long as the work piece is on the table the weight of
the left hand will shift onto the receiving table. When
joining, push the work piece with the left hand, with
the fist closed, against the help stopper and the table,
then feed through with the pusher.
• Chamfering or beveling: The work piece should be
leaned against the work stopper. Set the protective
rails of the shaft guard to the the width of the work
piece and leave the piece on the table. Push the work
piece with the left hand, with the fist closed, against
the stopper and the receiving table and feed it through
with the right hand closed.
BegInnIng
Before starting, observe the safety warnings. All guard and
help devices must be installed. Changes, setup, meas-
uring and cleaning work on the machine should only be
done with the motor turned off.
disconnect the power plug!
Planer work – chip removal, Fig. 6.1
The planer work chip removal is adjustable with the joint
lever 1 stepwise from 0 – 3 mm. During work, the thick-
nessing table must be adjusted between 90 und 210 mm.
Attention, otherwise the extraction outlet will be clamped!
Fig. 6.2
For longer work pieces (longer than the feeding or the re-
ceiving table) a roll rack (optional equipment) or similar
should be used.
Planer work – Planer shaft guard, Fig. 7
When dressing up to 75mm work piece strength, the plan-
er shaft guard must cover the work piece and the planer
shaft from above. If the work piece width is more than 75
mm, set the protective rails of the shaft guard to the width
of the work piece. Make sure to put closed hands, with the
thumb adjacent on the work piece.
1 Work stopper
2 Planer shaft guard
