i) Resetting to Factory Settings
1 2
2
1
The LED "D2" goes out shortly, and is
relit again (save) and then goes out
Caution:
When the factory settings are reinstated, a new house code will be generated.
This means that the receivers will need to be reprogrammed or the old house
code will need to be re-entered in the "FS20 UTS".

j) Programming Receiver Timer

If the receiver controlled by the "FS20 UTS" is operated by other transmitters (hand-held
remote control) using their internal timers, then the internal timer of the receiver must be
programmed as follows.
• The button pair assigned to the receiver is to be pressed shortly at the same time (shortly
= longer than 1 second, shorter than 5 seconds). This command is used to both start and stop
the timer time measurement. During the time measurement, the receiver LED will flash.
• Ensure that you also observe the operating instructions of the receiver.
• The programmed activation period (timer time), as per Chapter 11. g) has precedence over
the internal timer setting of the receiver, if a signal command between 33 and 43 has been
set as per Chapter 11. h).
• In order to use the internal timer time of the receiver with the "FS20 UTS", you must select
a signal command between 11 and 32.
3 4
Press for 5 seconds
LED "D1" is lit
LED "D2" flashes
4
3
Press any button
LED "D1" goes out

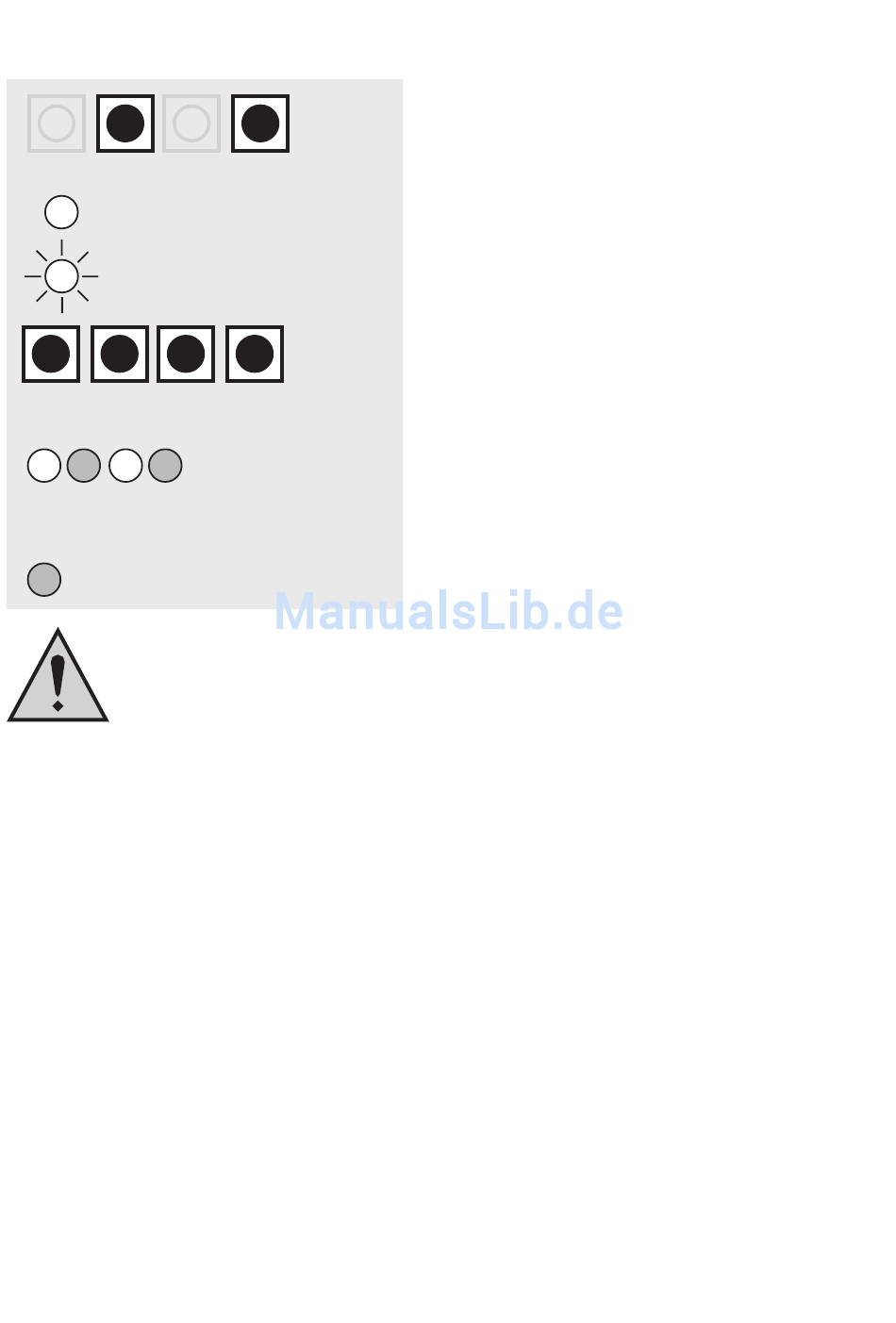

• Press the "2" and "4" buttons together for 5
seconds until the LED "D2" flashes.
• Press any button.
• LED "D2" goes out shortly, and is lit again for
as long as the factory settings are recorded to
the memory.
• Then "D1" goes out, the factory settings
(described in Chapter 7. b) are reinstated.
