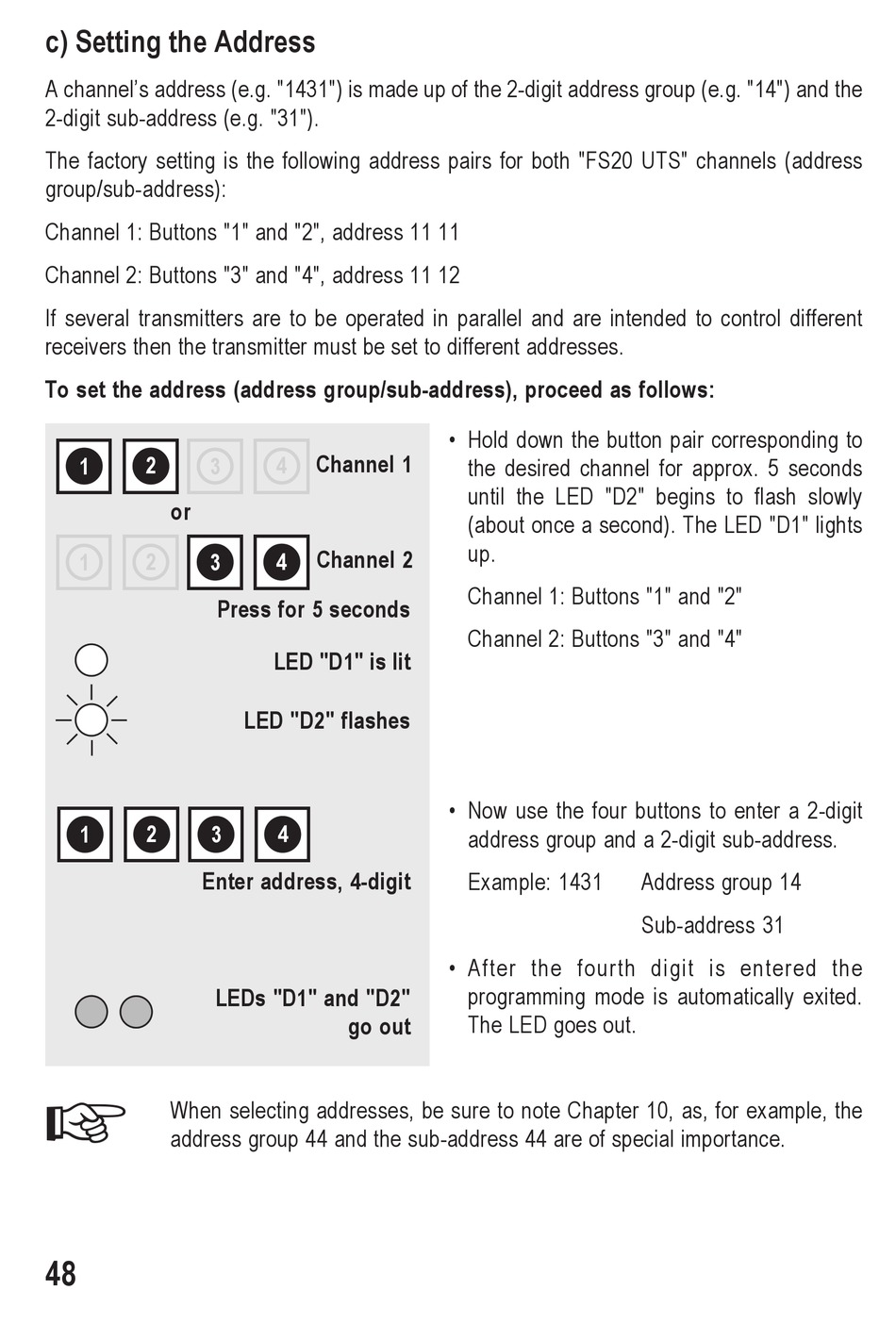

c) Setting the Address
A channel's address (e.g. "1431") is made up of the 2-digit address group (e.g. "14") and the
2-digit sub-address (e.g. "31").
The factory setting is the following address pairs for both "FS20 UTS" channels (address
group/sub-address):
Channel 1: Buttons "1" and "2", address 11 11
Channel 2: Buttons "3" and "4", address 11 12
If several transmitters are to be operated in parallel and are intended to control different
receivers then the transmitter must be set to different addresses.
To set the address (address group/sub-address), proceed as follows:
2
1
or
2
1
1 2
Enter address, 4-digit

When selecting addresses, be sure to note Chapter 10, as, for example, the
address group 44 and the sub-address 44 are of special importance.
48
Channel 1
4
3
Channel 2
4
3
Press for 5 seconds
LED "D1" is lit
LED "D2" flashes
3 4
LEDs "D1" and "D2"
go out
• Hold down the button pair corresponding to
the desired channel for approx. 5 seconds
until the LED "D2" begins to flash slowly
(about once a second). The LED "D1" lights
up.
Channel 1: Buttons "1" and "2"
Channel 2: Buttons "3" and "4"
• Now use the four buttons to enter a 2-digit
address group and a 2-digit sub-address.
Example: 1431
• After the fourth digit is entered the
programming mode is automatically exited.
The LED goes out.
Address group 14
Sub-address 31
