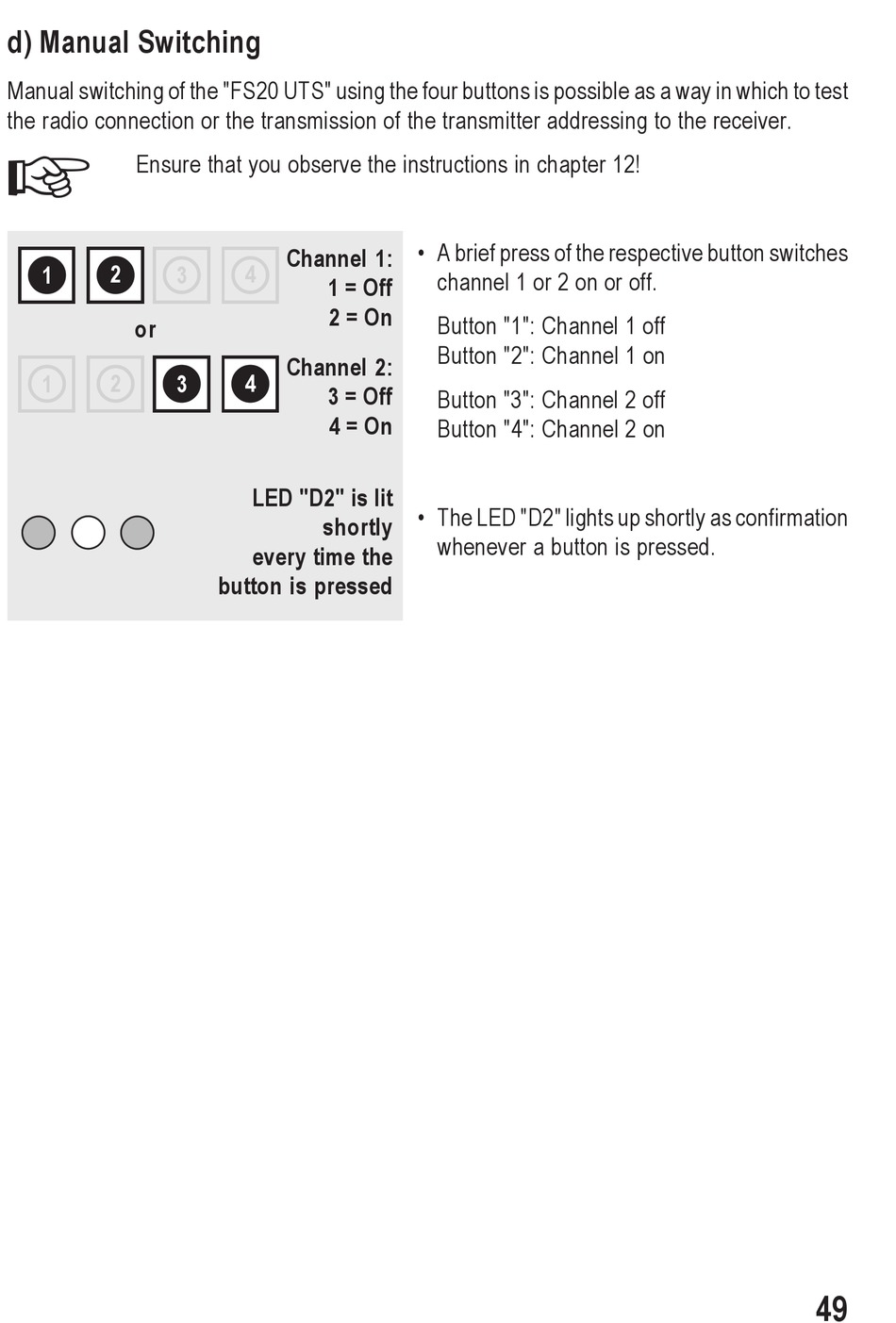

d) Manual Switching

Manual switching of the "FS20 UTS" using the four buttons is possible as a way in which to test
the radio connection or the transmission of the transmitter addressing to the receiver.

Ensure that you observe the instructions in chapter 12!
2
1 3
or
2
1 3
Channel 1:
4
1 = Off
2 = On
Channel 2:
4
3 = Off
4 = On
LED "D2" is lit
shortly
every time the
button is pressed
• A brief press of the respective button switches
channel 1 or 2 on or off.
Button "1": Channel 1 off
Button "2": Channel 1 on
Button "3": Channel 2 off
Button "4": Channel 2 on
• The LED "D2" lights up shortly as confirmation
whenever a button is pressed.
49
