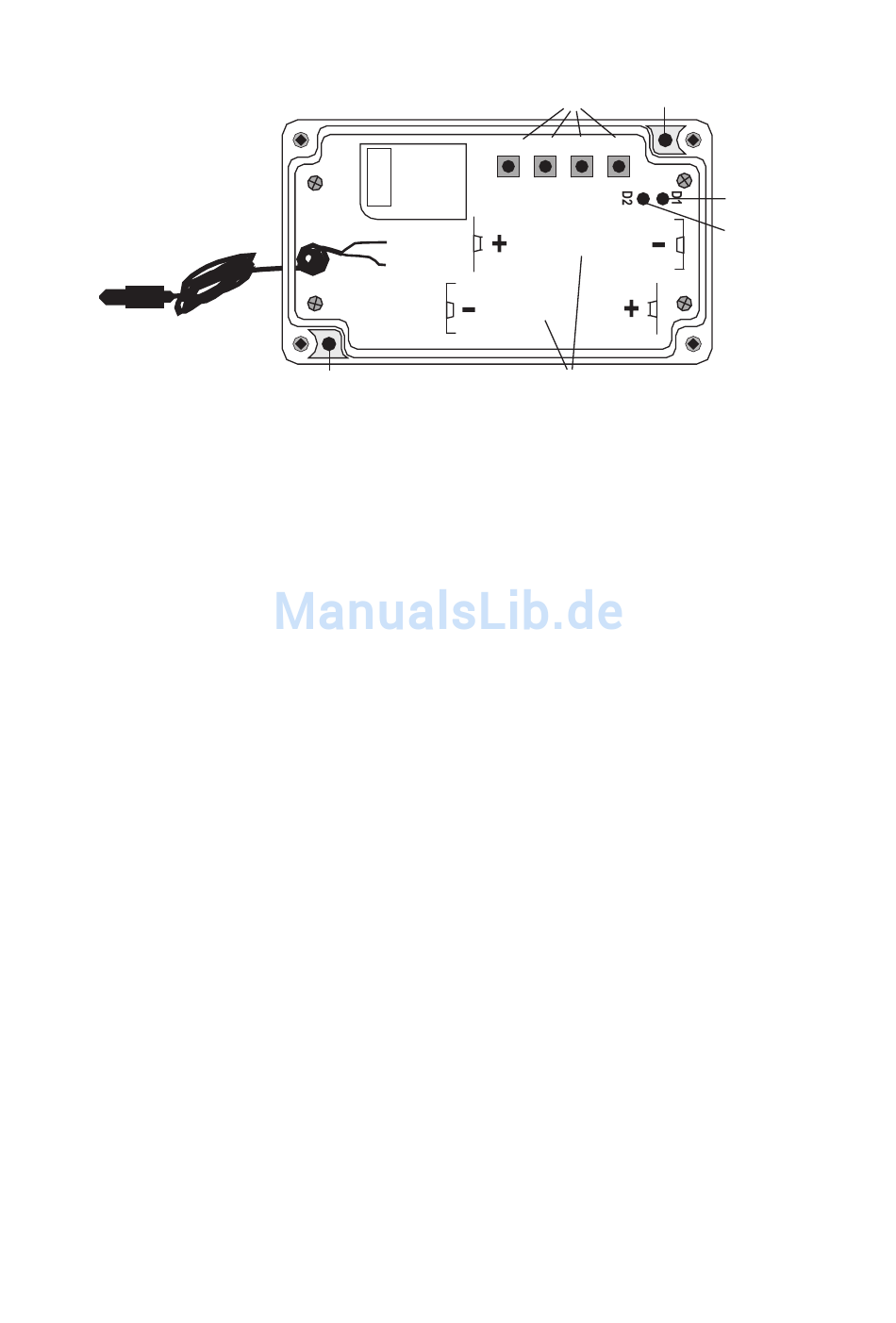

c) Controls

A
A Temperature sensor with permanently mounted connection cable
B Battery compartment for 2 Type AA/Mignon batteries
C Four operating/programming buttons (TA1, TA2, TA3, TA4), referred to in the following as
buttons "1", "2", "3" and "4".
D "D1" status LED, it indicates temperature measurements and controller activities, for
example during programming.
E "D2" status LED, it generally indicates the calling up of a programming mode and flashes
until the mode is ended and the data is saved. In addition "D2" indicates the sending of
switching commands.
F Holes for wall-mounting
F
C F
TA1 TA2 TA3 TA4
BAT1
BAT2
B
D
E
