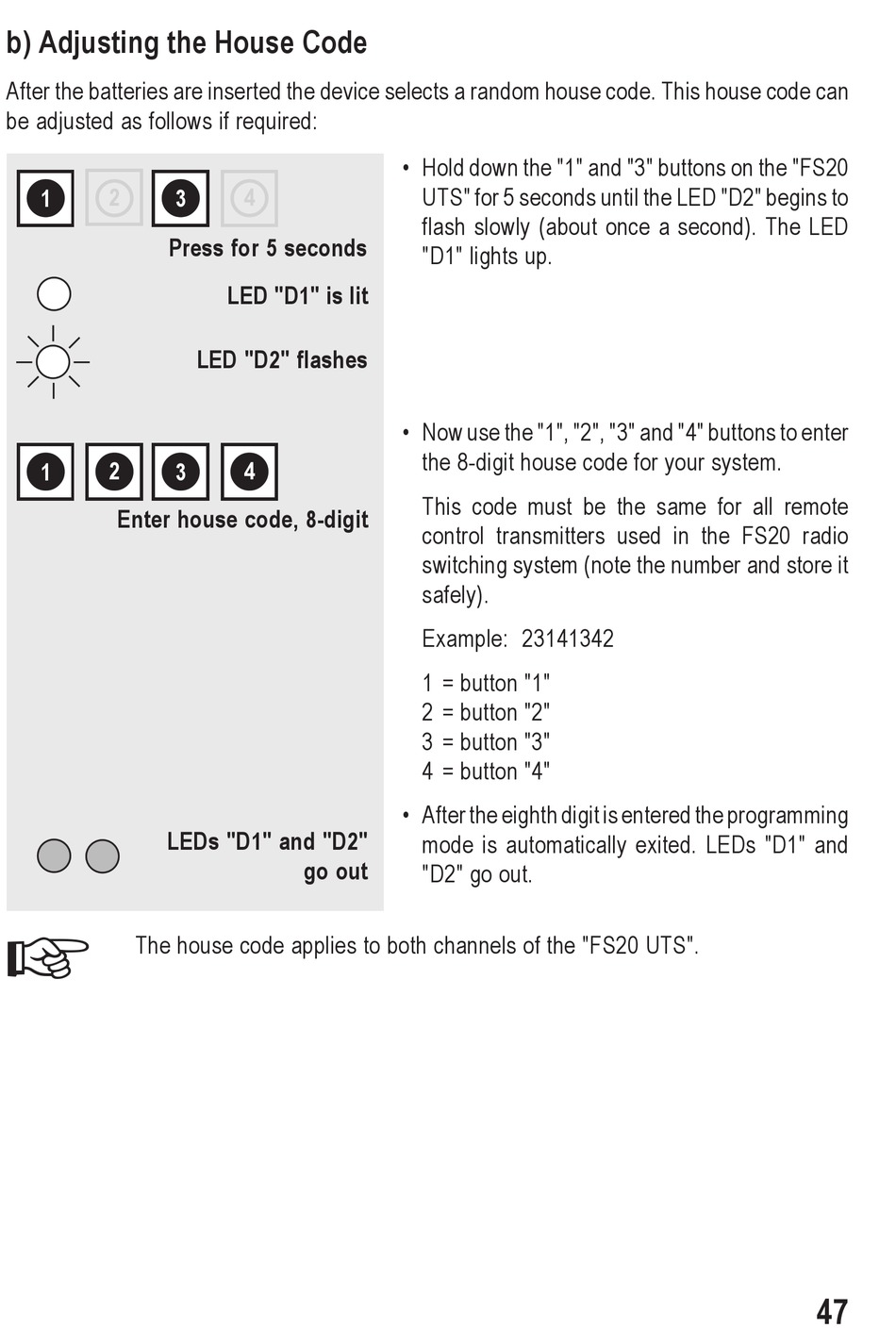

b) Adjusting the House Code
After the batteries are inserted the device selects a random house code. This house code can
be adjusted as follows if required:
2
1
3
Press for 5 seconds
2
1
3
Enter house code, 8-digit
LEDs "D1" and "D2"
The house code applies to both channels of the "FS20 UTS".
4
LED "D1" is lit
LED "D2" flashes
4
go out
• Hold down the "1" and "3" buttons on the "FS20
UTS" for 5 seconds until the LED "D2" begins to
flash slowly (about once a second). The LED
"D1" lights up.
• Now use the "1", "2", "3" and "4" buttons to enter
the 8-digit house code for your system.
This code must be the same for all remote
control transmitters used in the FS20 radio
switching system (note the number and store it
safely).
Example: 23141342
1 = button "1"
2 = button "2"
3 = button "3"
4 = button "4"
• After the eighth digit is entered the programming
mode is automatically exited. LEDs "D1" and
"D2" go out.
