e) Programming Temperatures and Switching Directions

Each of the switching channels allows a threshold/limit temperature to be set between -39°C
and +79°C. In addition you can determine whether the switching command is to be sent when
the temperature goes above or drops below the threshold value.

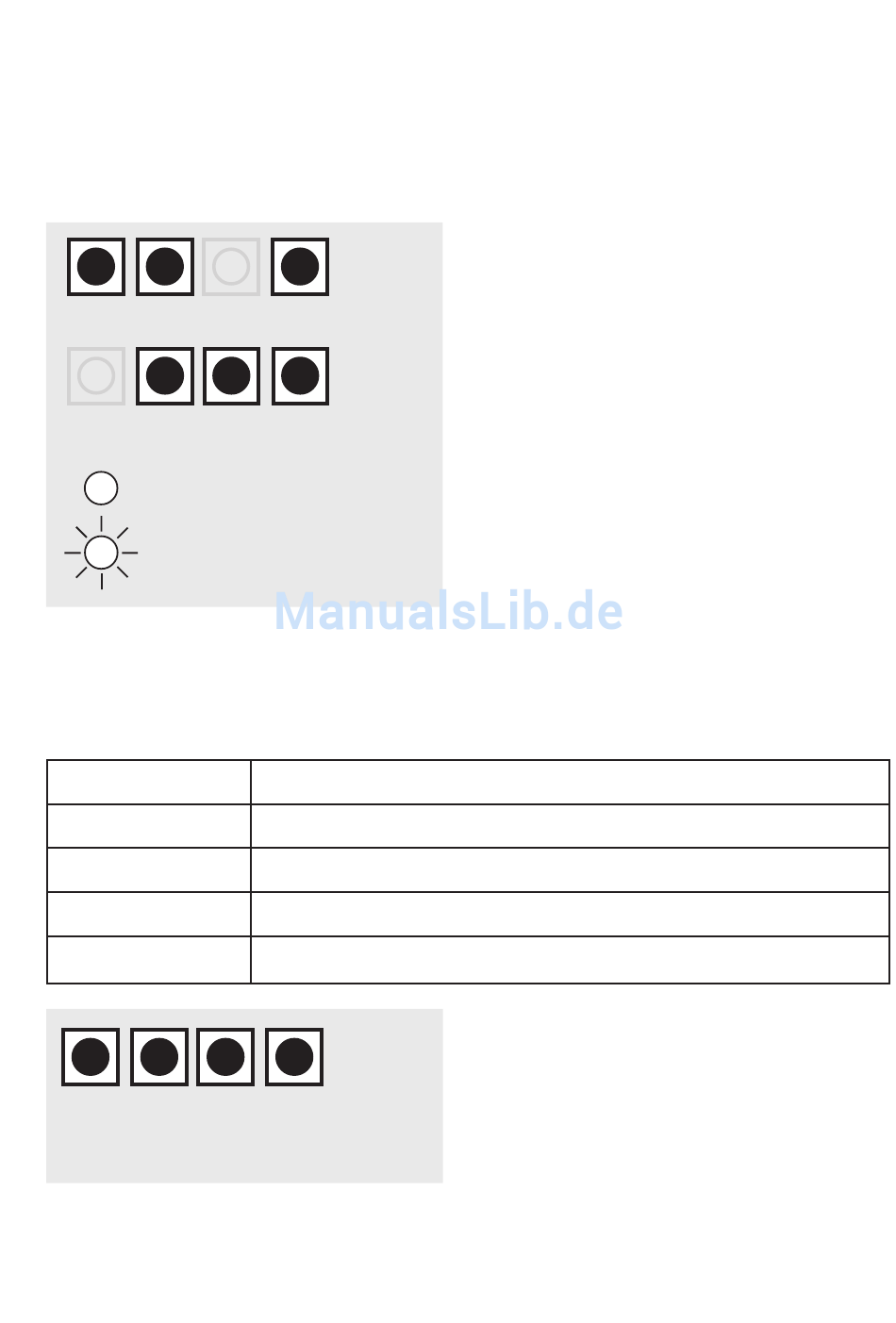

Entering the switching direction and the threshold temperature:
2
1
or
2
1
Now press one of the following buttons corresponding to the following table to determine
whether the desired threshold temperature is positive or negative and whether the switching
command is to be sent when the temperature rises above or drops below the threshold
temperature.
Button pressed
1
2
3
4
2
1
50
Channel 1
4
3
4 Channel 2
3
Press for 5 seconds
LED "D1" is lit
LED "D2" flashes
Pos/Neg and switching direction
positive temperature, switches when temp exceeded
positive temperature, switches when below temperature
negative temperature, switches when temp exceeded
negative temperature, switches when below temperature
4
3
Enter Pos/Neg and
switching direction
• For channel 1 press the "1", "2" and "4"
buttons together for at least 5 seconds until
the LED "D2" flashes.
For channel 1 press the "2", "3" and "4"
buttons.
• Now press a button corresponding to the
desired function, see table above.
