 Ab V1.5 auch in Weckalarmen einsetzbar (siehe hierzu Kapitel 6.2)

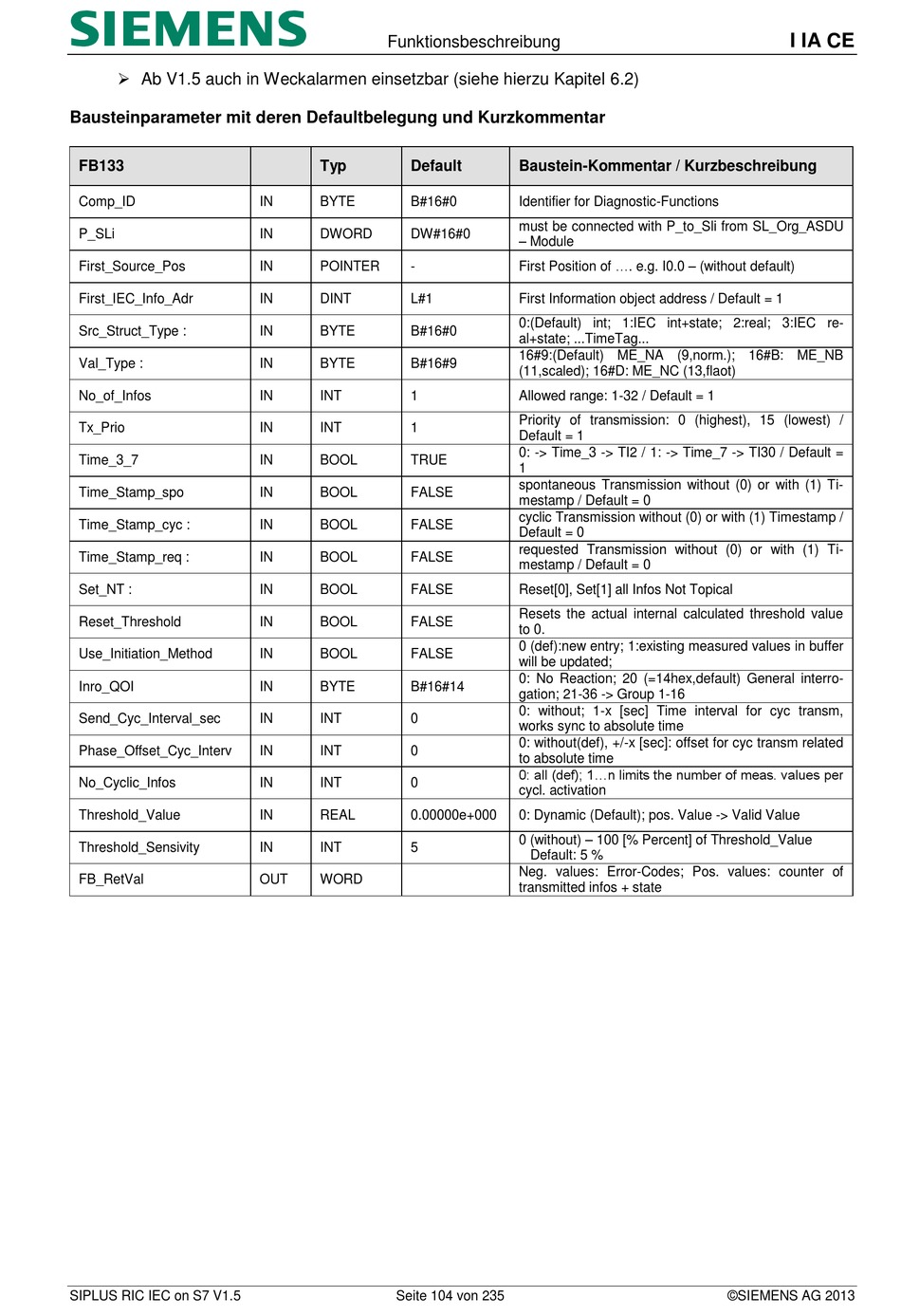

Bausteinparameter mit deren Defaultbelegung und Kurzkommentar
FB133
Comp_ID
P_SLi
First_Source_Pos
First_IEC_Info_Adr
Src_Struct_Type :
Val_Type :
No_of_Infos
Tx_Prio
Time_3_7
Time_Stamp_spo
Time_Stamp_cyc :
Time_Stamp_req :
Set_NT :
Reset_Threshold
Use_Initiation_Method
Inro_QOI
Send_Cyc_Interval_sec
Phase_Offset_Cyc_Interv
No_Cyclic_Infos
Threshold_Value
Threshold_Sensivity
FB_RetVal
SIPLUS RIC IEC on S7 V1.5
Funktionsbeschreibung
Typ Default
IN BYTE B#16#0
IN DWORD DW#16#0
IN POINTER -
IN DINT L#1
IN BYTE B#16#0
IN BYTE B#16#9
IN INT 1
IN INT 1
IN BOOL TRUE
IN BOOL FALSE
IN BOOL FALSE
IN BOOL FALSE
IN BOOL FALSE
IN BOOL FALSE
IN BOOL FALSE
IN BYTE B#16#14
IN INT 0
IN INT 0
IN INT 0
IN REAL 0.00000e+000
IN INT 5
OUT WORD
Seite 104 von 235
Baustein-Kommentar / Kurzbeschreibung
Identifier for Diagnostic-Functions
must be connected with P_to_Sli from SL_Org_ASDU
– Module
First Position of .... e.g. I0.0 – (without default)
First Information object address / Default = 1
0:(Default) int; 1:IEC int+state; 2:real; 3:IEC re-
al+state; ...TimeTag...
16#9:(Default) ME_NA (9,norm.); 16#B: ME_NB
(11,scaled); 16#D: ME_NC (13,flaot)
Allowed range: 1-32 / Default = 1
Priority of transmission: 0 (highest), 15 (lowest) /
Default = 1
0: -> Time_3 -> TI2 / 1: -> Time_7 -> TI30 / Default =
1
spontaneous Transmission without (0) or with (1) Ti-
mestamp / Default = 0
cyclic Transmission without (0) or with (1) Timestamp /
Default = 0
requested Transmission without (0) or with (1) Ti-
mestamp / Default = 0
Reset[0], Set[1] all Infos Not Topical
Resets the actual internal calculated threshold value
to 0.
0 (def):new entry; 1:existing measured values in buffer
will be updated;
0: No Reaction; 20 (=14hex,default) General interro-
gation; 21-36 -> Group 1-16
0: without; 1-x [sec] Time interval for cyc transm,
works sync to absolute time
0: without(def), +/-x [sec]: offset for cyc transm related
to absolute time
0: all (def); 1...n limits the number of meas. values per
cycl. activation
0: Dynamic (Default); pos. Value -> Valid Value
0 (without) – 100 [% Percent] of Threshold_Value
Default: 5 %
Neg. values: Error-Codes; Pos. values: counter of
transmitted infos + state
