10.4 Standard Status Data Structures

All status registers are defined by the IEEE-488.2 Standard. The programmer has access to Status
Register, Enable Register and Output Queue in the Calibrator.

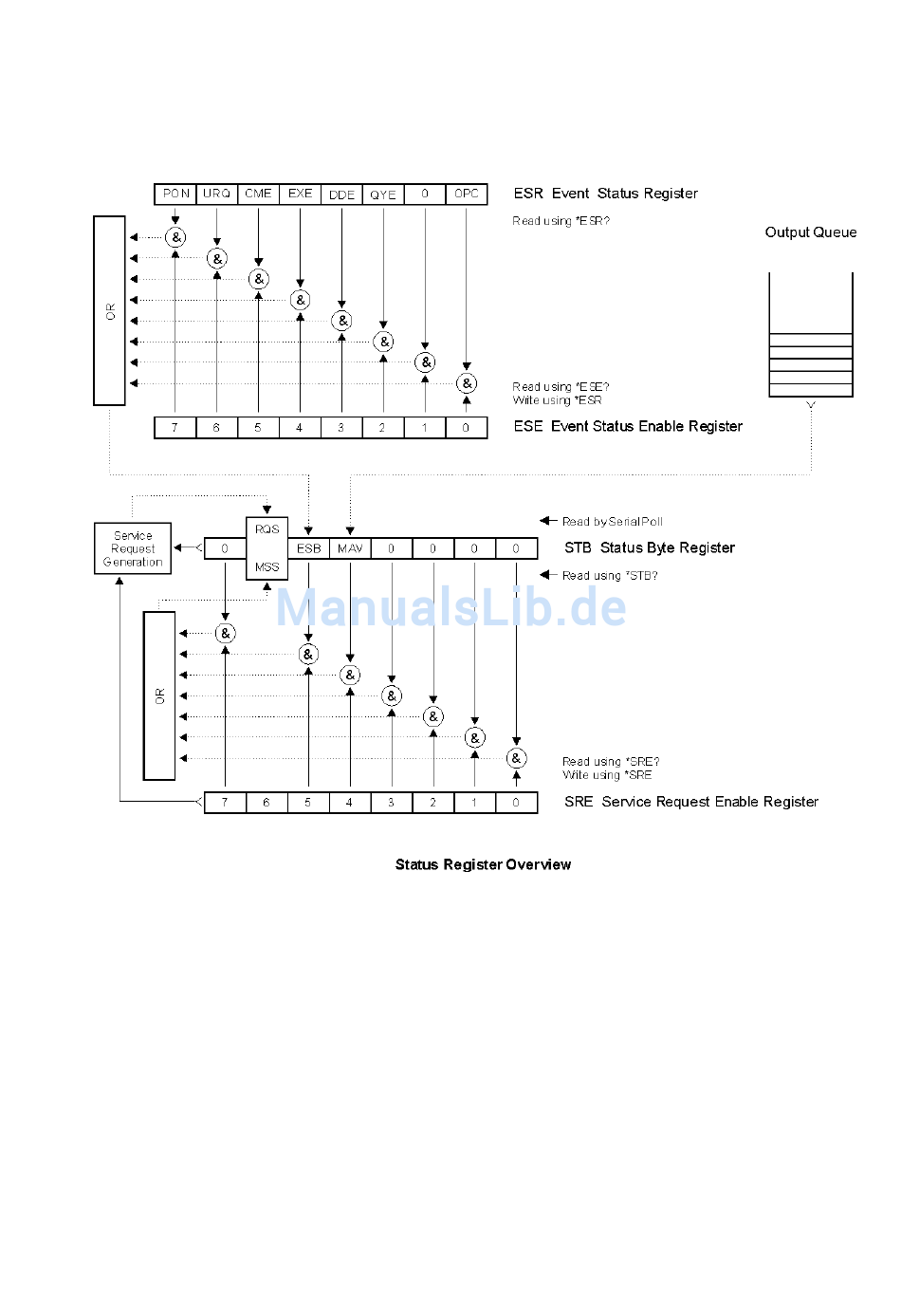

Fig. 20. Data structure
Status data structure of OCM191 Calibrator contains following registers:
STB – Status Byte Register
SRE – Service Request Enable Register
ESR – Event Status Register
ESE – Event Status Enable Register
Output Queue
Betriebsanleitung 47
