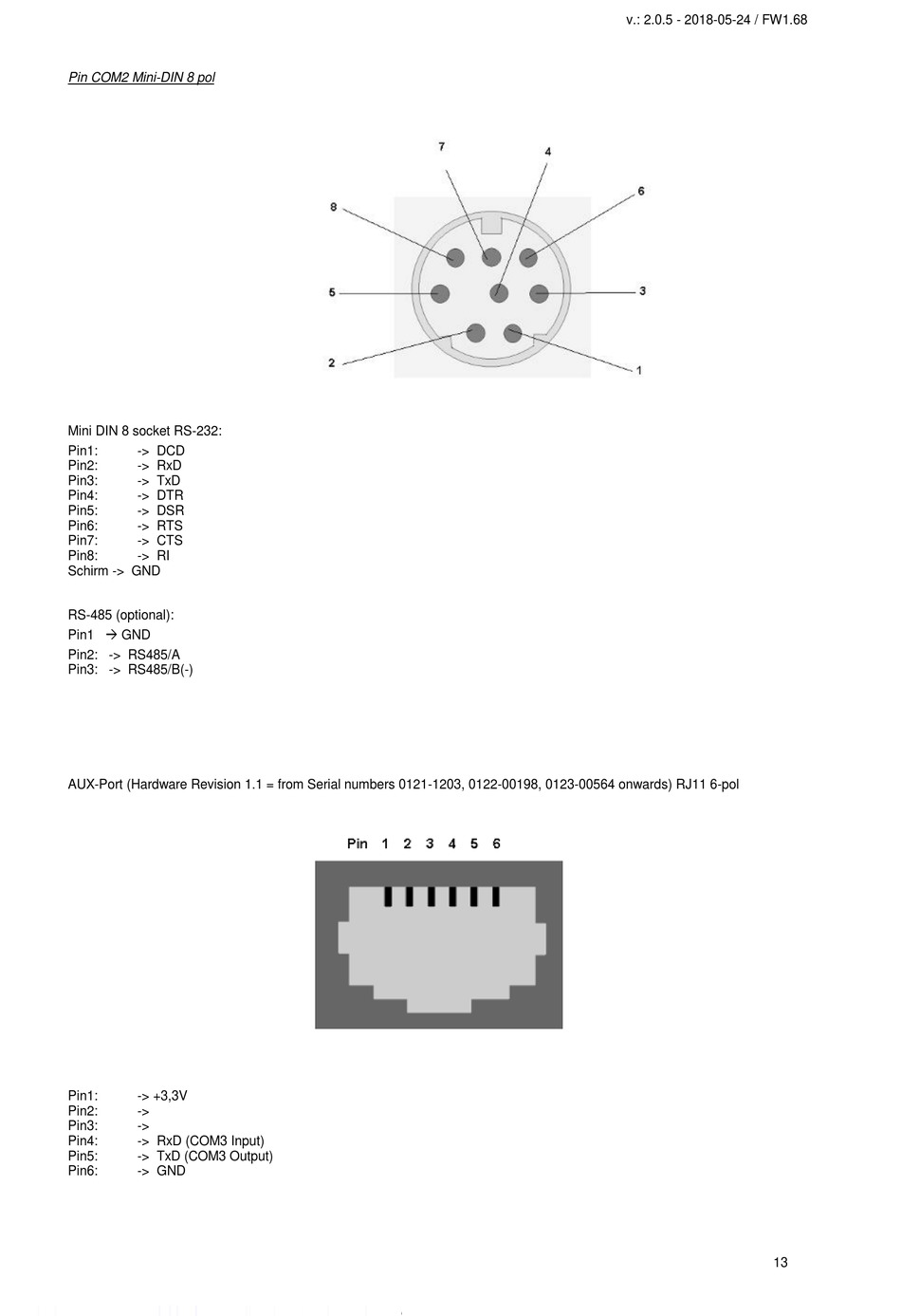

Pin COM2 Mini-DIN 8 pol

Mini DIN 8 socket RS-232:
Pin1: -> DCD
Pin2: -> RxD
Pin3: -> TxD
Pin4: -> DTR
Pin5: -> DSR
Pin6: -> RTS
Pin7: -> CTS
Pin8: -> RI
Schirm -> GND
RS-485 (optional):
Pin1  GND
Pin2: -> RS485/A
Pin3: -> RS485/B(-)
AUX-Port (Hardware Revision 1.1 = from Serial numbers 0121-1203, 0122-00198, 0123-00564 onwards) RJ11 6-pol
Pin1: -> +3,3V
Pin2: ->
Pin3: ->
Pin4: -> RxD (COM3 Input)
Pin5: -> TxD (COM3 Output)
Pin6: -> GND
