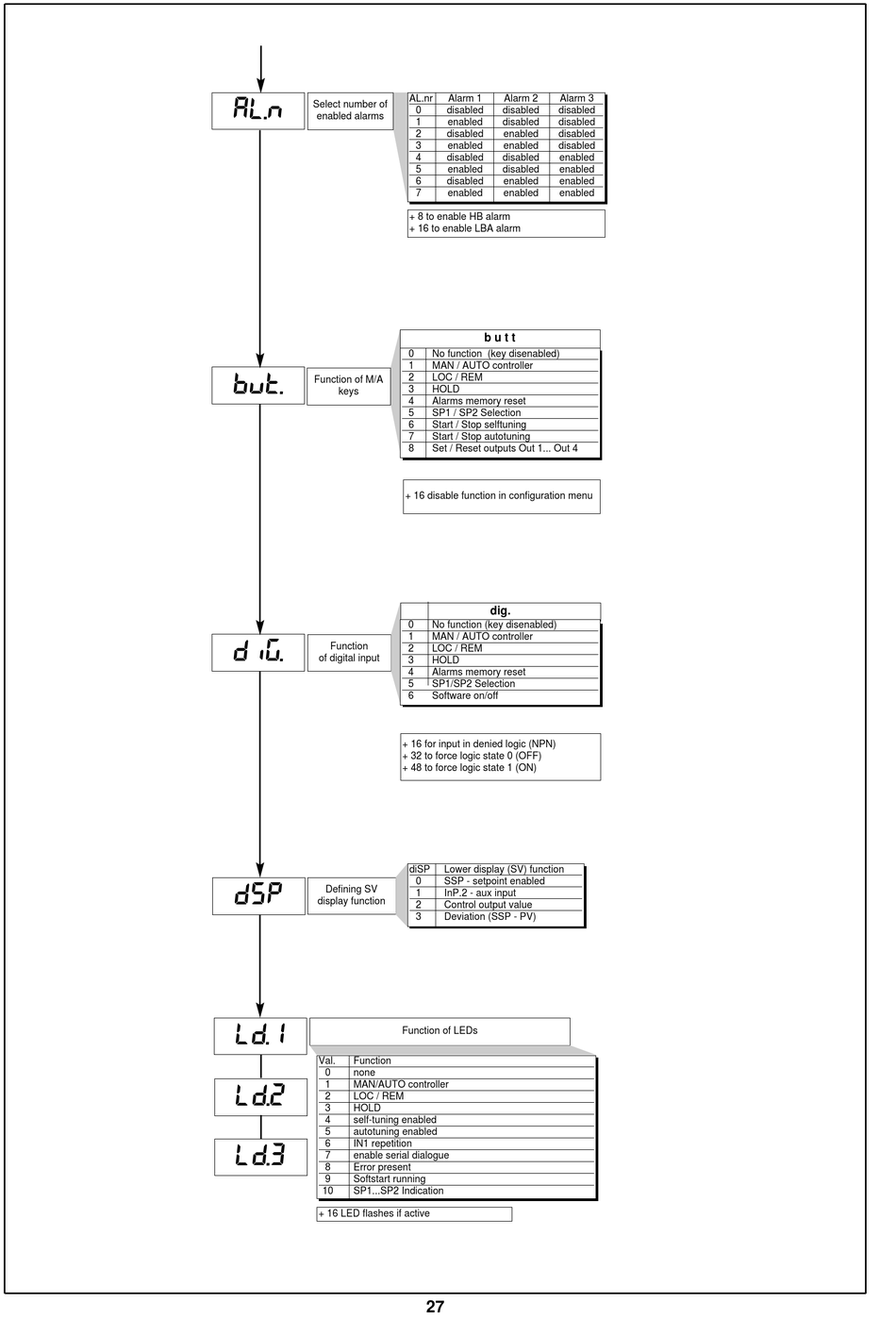

gefran 600 Bedienungsanleitung Seite 27

al. n
Select number of
enabled alarms
bvt.
Function of M/A
keys
dig.
Function
of digital input
dsp
Defining SV
display function
ld. 1
Val. Function
0 none
1 MAN/AUTO controller
ld. 2
2 LOC / REM
3 HOLD
4 self-tuning enabled
5 autotuning enabled
6 IN1 repetition
ld. 3
7 enable serial dialogue
8 Error present
9 Softstart running
10 SP1...SP2 Indication
+ 16 LED flashes if active
AL.nr Alarm 1 Alarm 2 Alarm 3
0 disabled disabled disabled
1 enabled disabled disabled
2 disabled enabled disabled
3 enabled enabled disabled
4 disabled disabled enabled
5 enabled disabled enabled
6 disabled enabled enabled
7 enabled enabled enabled
+ 8 to enable HB alarm
+ 16 to enable LBA alarm
b u t t
0 No function (key disenabled)
1 MAN / AUTO controller
2 LOC / REM
3 HOLD
4 Alarms memory reset
5 SP1 / SP2 Selection
6 Start / Stop selftuning
7 Start / Stop autotuning
8 Set / Reset outputs Out 1... Out 4
+ 16 disable function in configuration menu
dig.
0 No function (key disenabled)
1 MAN / AUTO controller
2 LOC / REM
3 HOLD
4 Alarms memory reset
5 SP1/SP2 Selection
6 Software on/off
+ 16 for input in denied logic (NPN)
+ 32 to force logic state 0 (OFF)
+ 48 to force logic state 1 (ON)
diSP Lower display (SV) function
0 SSP - setpoint enabled
1 InP.2 - aux input
2 Control output value
3 Deviation (SSP - PV)
Function of LEDs
