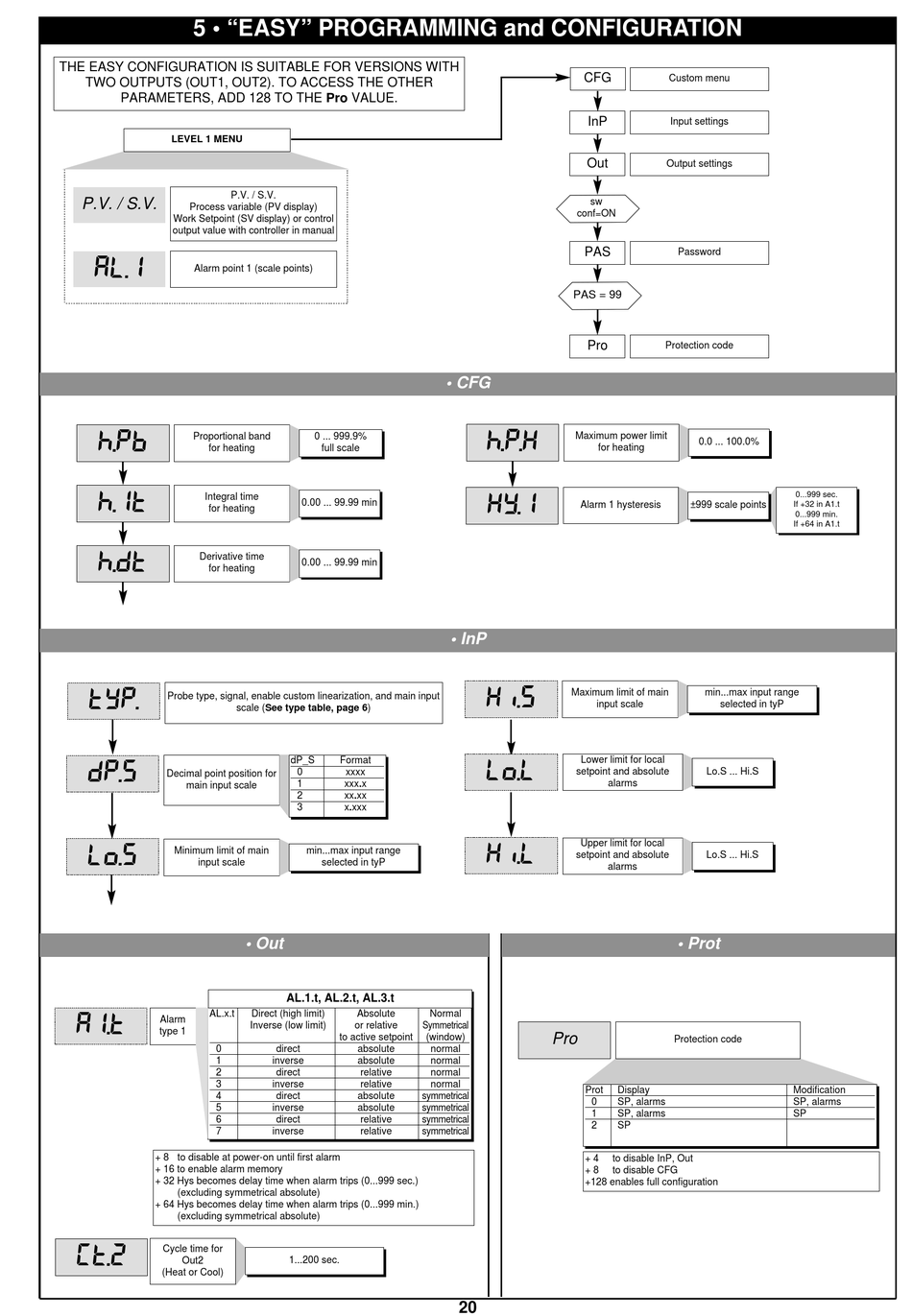

5 • "EASY" PROGRAMMING and CONFIGURATION
THE EASY CONFIGURATION IS SUITABLE FOR VERSIONS WITH
TWO OUTPUTS (OUT1, OUT2). TO ACCESS THE OTHER
PARAMETERS, ADD 128 TO THE Pro VALUE.
LEVEL 1 MENU
P.V. / S.V.
P.V. / S.V.
Process variable (PV display)
Work Setpoint (SV display) or control
output value with controller in manual
al. 1
Alarm point 1 (scale points)
h. p b
Proportional band
for heating
h. i t
Integral time
for heating
h. d t
Derivative time
for heating
typ.
Probe type, signal, enable custom linearization, and main input
dp. s
Decimal point position for
main input scale
lo. s
Minimum limit of main
input scale
AL.x.t
a1. t
Alarm
type 1
0
1
2
3
4
5
6
7
+ 8 to disable at power-on until first alarm
+ 16 to enable alarm memory
+ 32 Hys becomes delay time when alarm trips (0...999 sec.)
(excluding symmetrical absolute)
+ 64 Hys becomes delay time when alarm trips (0...999 min.)
(excluding symmetrical absolute)
(t. 2 Cycle time for
Out2
(Heat or Cool)
0 ... 999.9%
full scale
0.00 ... 99.99 min
0.00 ... 99.99 min
scale (See type table, page 6)
dP_S Format
0 xxxx
1 xxx.x
2 xx.xx
3 x.xxx
min...max input range
selected in tyP
• Out
AL.1.t, AL.2.t, AL.3.t
Direct (high limit) Absolute
Inverse (low limit) or relative
to active setpoint
direct absolute
inverse absolute
direct relative
inverse relative
direct absolute
inverse absolute
direct relative
inverse relative
1...200 sec.
CFG
InP
Out
sw
conf=ON
PAS
PAS = 99
Pro
• CFG
h. p . x
Maximum power limit
Xy. i
Alarm 1 hysteresis
• InP
xi. s
Maximum limit of main
Lower limit for local
lo. l
setpoint and absolute
Upper limit for local
xi. l
setpoint and absolute
Normal
Symmetrical
Pro
(window)
normal
normal
normal
normal
Prot
symmetrical
0
symmetrical
1
symmetrical
2
symmetrical
+ 4
+ 8
+128 enables full configuration
20
Custom menu
Input settings
Output settings
Password
Protection code
0.0 ... 100.0%
for heating
±999 scale points
min...max input range
input scale selected in tyP
Lo.S ... Hi.S
alarms
Lo.S ... Hi.S
alarms
• Prot
Protection code
Display
SP, alarms
SP, alarms
SP
to disable InP, Out
to disable CFG
0...999 sec.
If +32 in A1.t
0...999 min.
If +64 in A1.t
Modification
SP, alarms
SP
