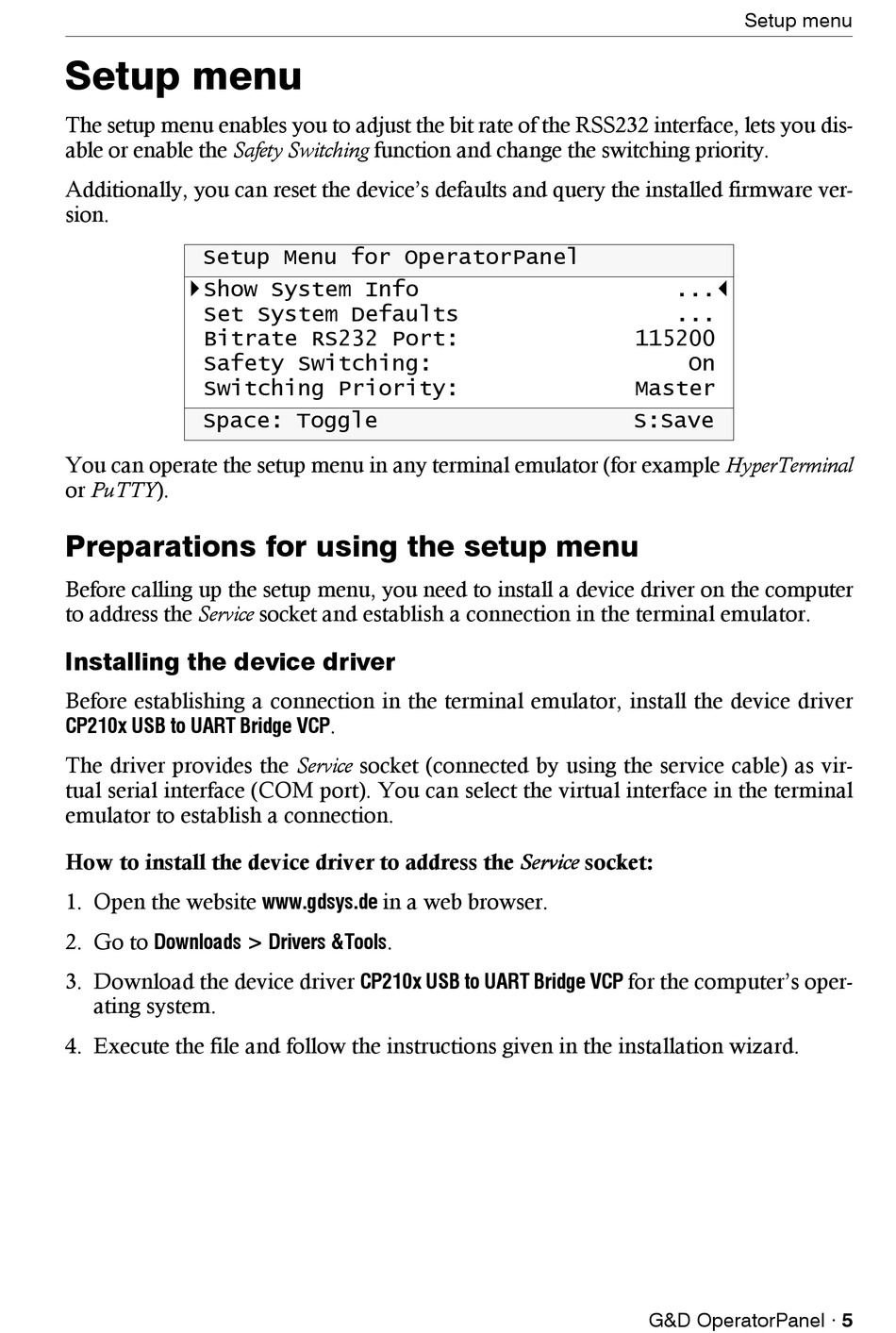

Setup menu

The setup menu enables you to adjust the bit rate of the RSS232 interface, lets you dis-
able or enable the Safety Switching function and change the switching priority.
Additionally, you can reset the device's defaults and query the installed firmware ver-
sion.
Setup Menu for OperatorPanel
Show System Info
Set System Defaults
Bitrate RS232 Port:
Safety Switching:
Switching Priority:
Space: Toggle
You can operate the setup menu in any terminal emulator (for example HyperTerminal
or PuTTY).

Preparations for using the setup menu

Before calling up the setup menu, you need to install a device driver on the computer
to address the Service socket and establish a connection in the terminal emulator.

Installing the device driver

Before establishing a connection in the terminal emulator, install the device driver
CP210x USB to UART Bridge VCP
The driver provides the Service socket (connected by using the service cable) as vir-
tual serial interface (COM port). You can select the virtual interface in the terminal
emulator to establish a connection.
How to install the device driver to address the Service socket:
1. Open the website
2. Go to Downloads > Drivers &Tools
3. Download the device driver
ating system.
4. Execute the file and follow the instructions given in the installation wizard.
.
www.gdsys.de in a web browser.
.
CP210x USB to UART Bridge VCP
Setup menu
...
...
115200
On
Master
S:Save
for the computer's oper-
G&D OperatorPanel · 5
