Grinding instructions for
MultiCutter
Grinding machine

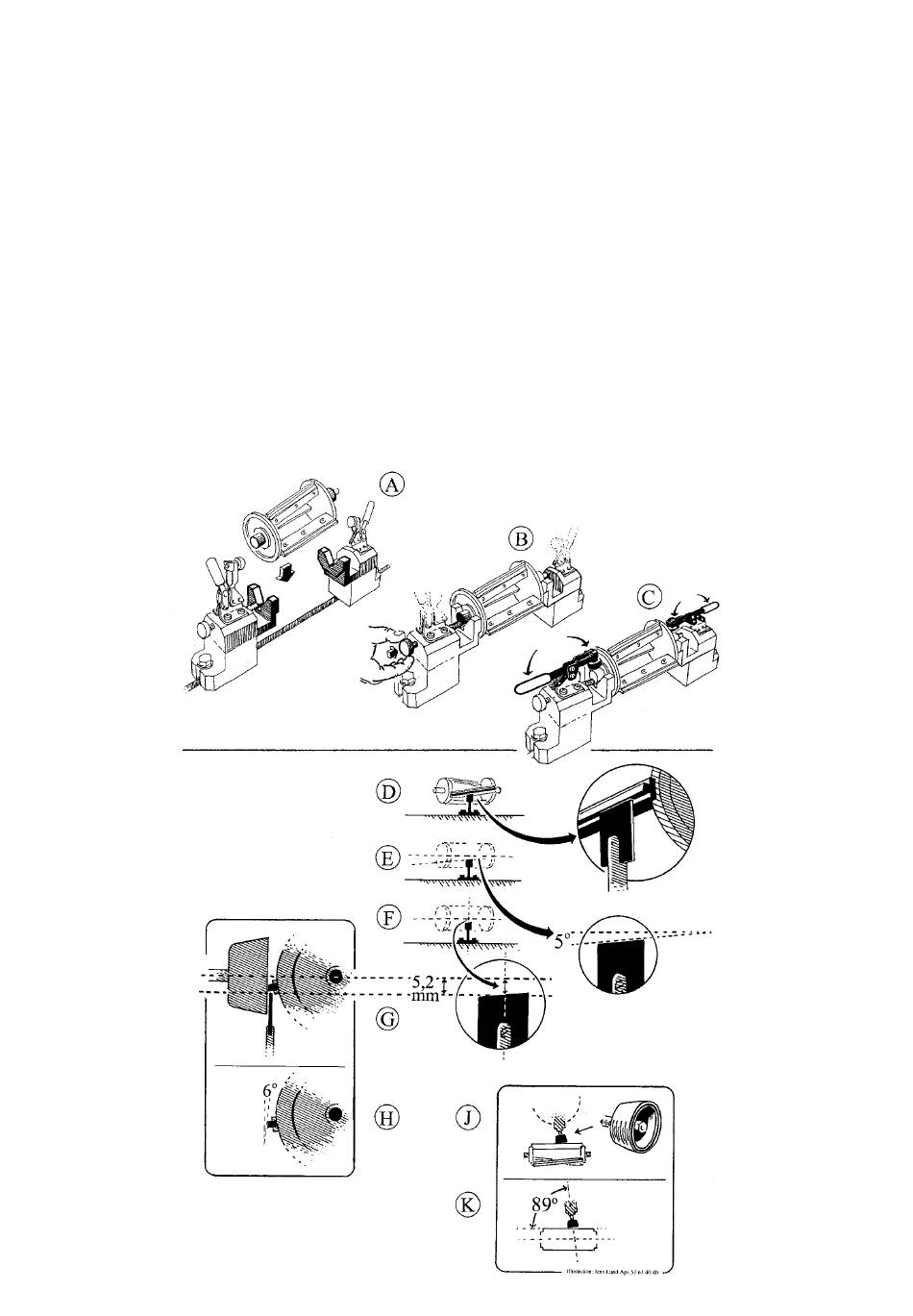

1. Clamp up the rotor between two V-traces, which
support on the bearing seat (do not use the cen-
tres).
2. The centre height of the rotor must be flush with
the centre of the cup wheel.
3. To achieve a clearance angle of 6°, the grinding
template centre must be placed 5,2 mm below the
cup wheel centre.
4. The grinding template angle is 5° corresponding to
the rotor knife angle.
18
5. To ensure that only one side of the cup-wheel
grindstone is used for grinding, turn the fixed head-
stock through 1°.
Cup-wheel grindstone
1. Ø75 x 30 mm diamond grindstone with the hole
diameter adjusted to suit the grinding spindle.
2. Speed: approx. 3500 rpm.
Abrasive
Abrasive Naxos SD 151R 75B-3 can be recommended.
Grinding
1. Manual feed approx. 140 mm/5 sec.
2. Depth of cut approx. 0,01 - 0,02 mm.
3. Minimum rotor diameter approx. Ø99 mm.
