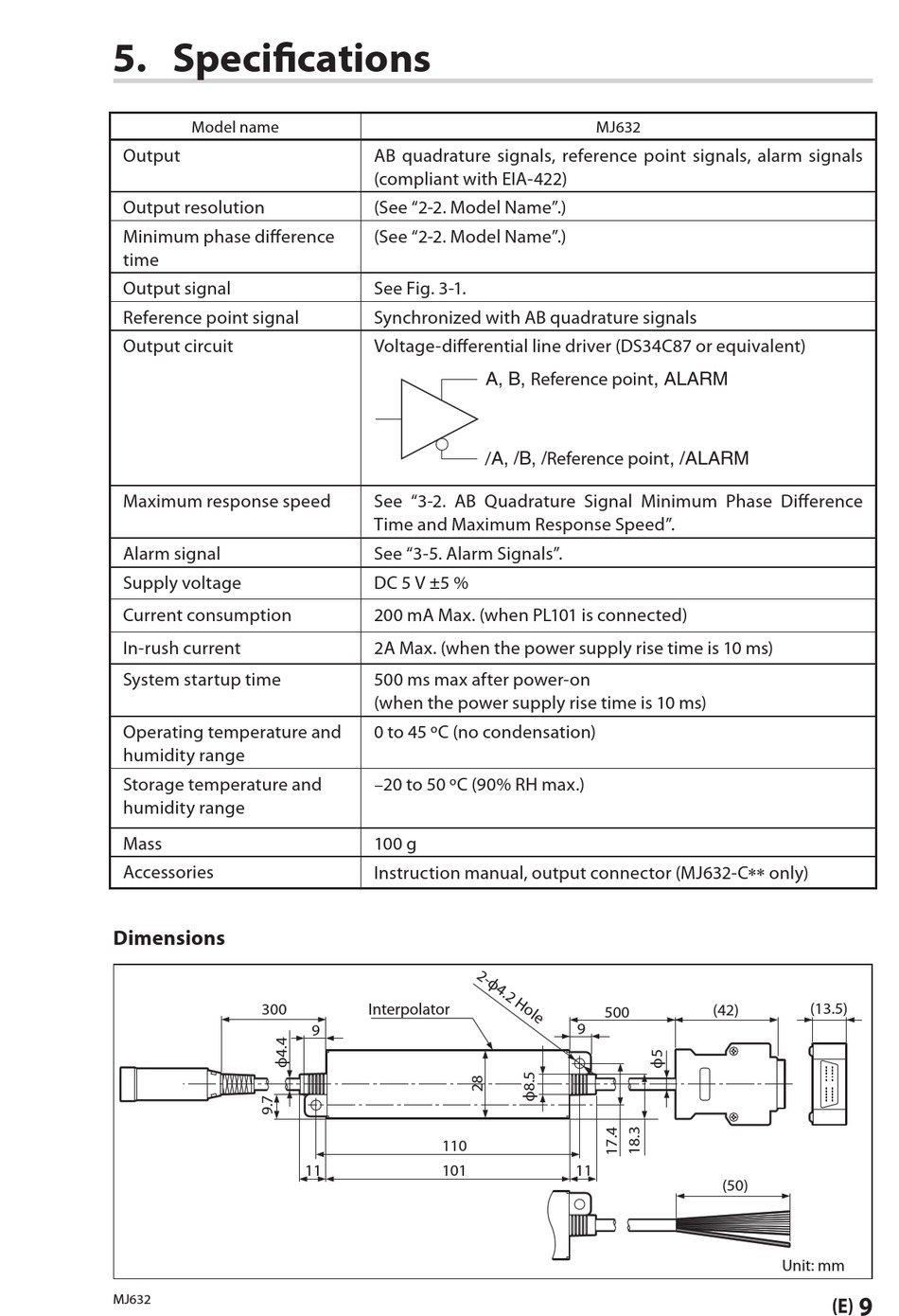

5. Specifi cations

Model name
Output
Output resolution
Minimum phase diff erence
time
Output signal
Reference point signal
Output circuit
Maximum response speed
Alarm signal
Supply voltage
Current consumption
In-rush current
System startup time
Operating temperature and
humidity range
Storage temperature and
humidity range
Mass
Accessories
Dimensions
300
MJ632
AB quadrature signals, reference point signals, alarm signals
(compliant with EIA-422)
(See "2-2. Model Name".)
(See "2-2. Model Name".)
See Fig. 3-1.
Synchronized with AB quadrature signals
Voltage-diff erential line driver (DS34C87 or equivalent)
See "3-2. AB Quadrature Signal Minimum Phase Diff erence
Time and Maximum Response Speed".
See "3-5. Alarm Signals".
DC 5 V ±5 %
200 mA Max. (when PL101 is connected)
2A Max. (when the power supply rise time is 10 ms)
500 ms max after power-on
(when the power supply rise time is 10 ms)
0 to 45 ºC (no condensation)
–20 to 50 ºC (90% RH max.)
100 g
Instruction manual, output connector (MJ632-C∗∗ only)
Interpolator
9
110
11 101
MJ632
A, B, Reference point, ALARM
/A, /B, /Reference point, /ALARM
500
9
11
(13.5)
(42)
(50)
Unit: mm
9
(E)
