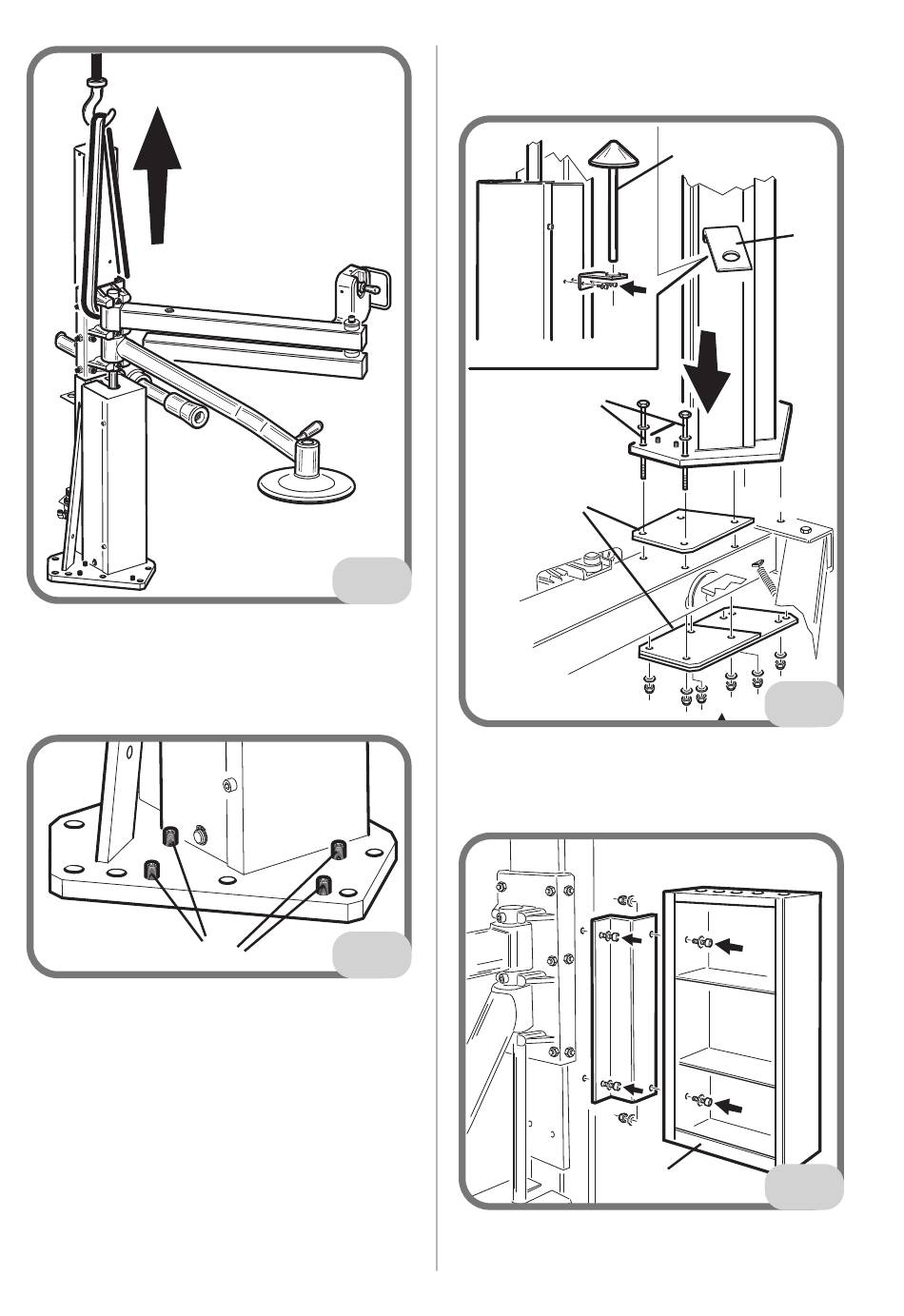

3. Remove the hole protection caps.
4. Loosen the dowels G Fig. 4.2.
5. Fasten the helper to the body using the
4 fastening screws A (without tightening
them completely) inserting the relative
plates B Fig. 4.3.
6. If necessary, adjust the dowels G Fig. 4.2
to change the inclination of the Helper unit.
7. Finally tighten the fastening screws A
Fig. 4.3.
22
4.1
4.2
G
8. Fasten the support C to the column for
the rim clamping cone E Fig. 4.3.
A
B
9. Fasten the accessory holder F to the
column Fig. 4.4.
10. Disconnect the air pipe Fig. 5.
Operator's manual HELPER 4FD
E
C
4.3
4.4
F
