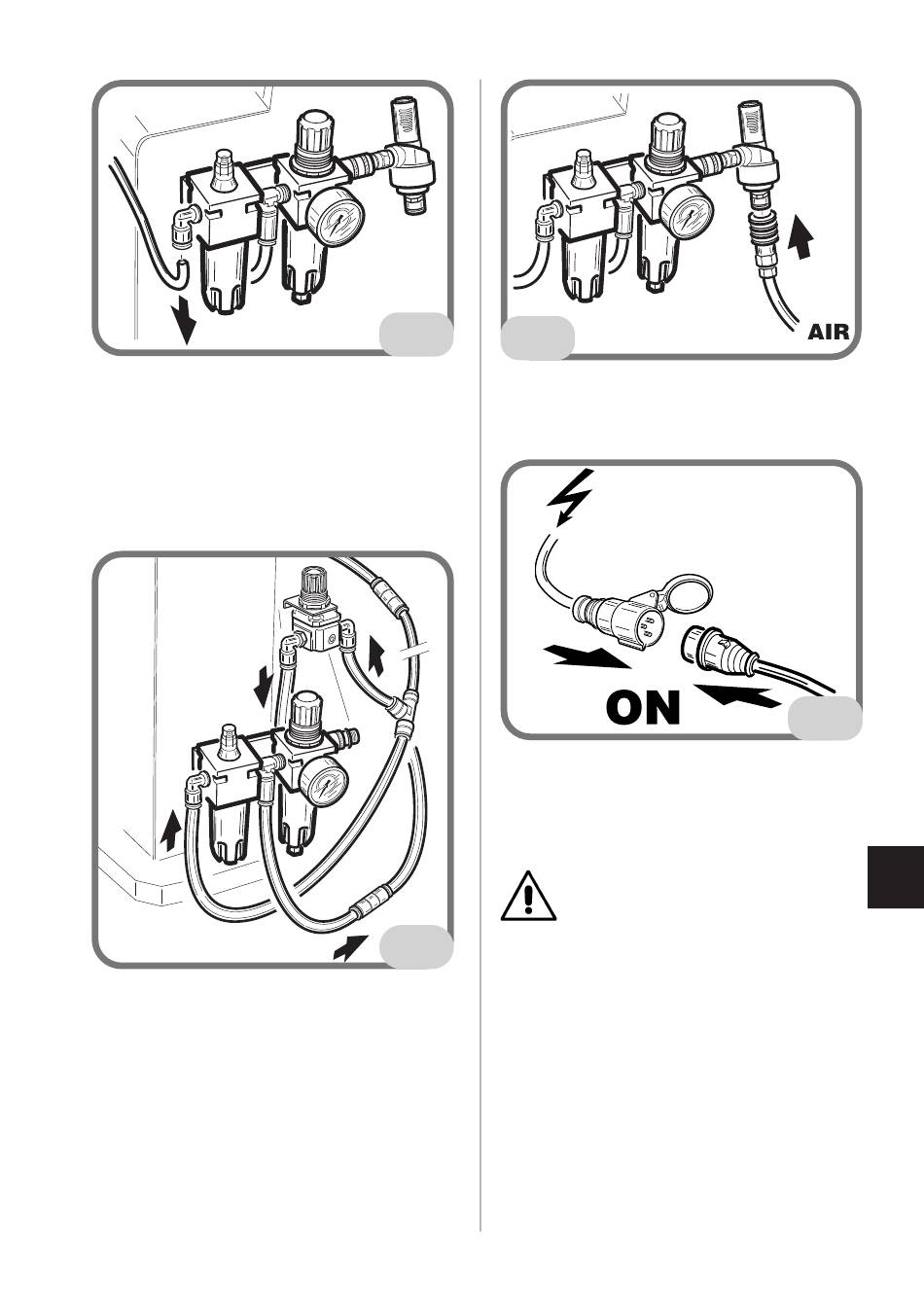

11. Remove the lubricator filter unit from
its position on the casing and fix it on the
Helper column as shown in Fig. 5.1
Use the pipe with the Y connector
provided in the kit to make the new
connections, as shown in fig. 5.1
12. Reconnect the machine to the com-
pressed air line fig. 5.2
Operator's manual HELPER 4FD
5
5.2
13. Reconnect the machine to the electric
mains fig.5.3.
CAUTION
5.1
For all tyre mounting/demounting proce-
dures not specifically described, refer to
the tyre changer use and maintenance
manual.
The helper has been designed to simplify
demounting and mounting light alloy rims
and especially stiff low-profile tyres. Pro-
ceed as follows to get the best performance
from these accessories.
Demounting:
- For particularly stiff tyres with beads that
tend to slip back into place, use the rim
clamping cone A:

OPERATION

Demounting
5.3
EN
23
