INSTALLATION

CAUTION Take the utmost care
when unpacking, assembling, and setting
up the machine as described below. Fail-
ure to comply with these recommendations
may cause damage to the machine and
put the operator at risk.
Free the accessory from the upper part of
the packaging, making sure that it was not
EN
damaged during transport.

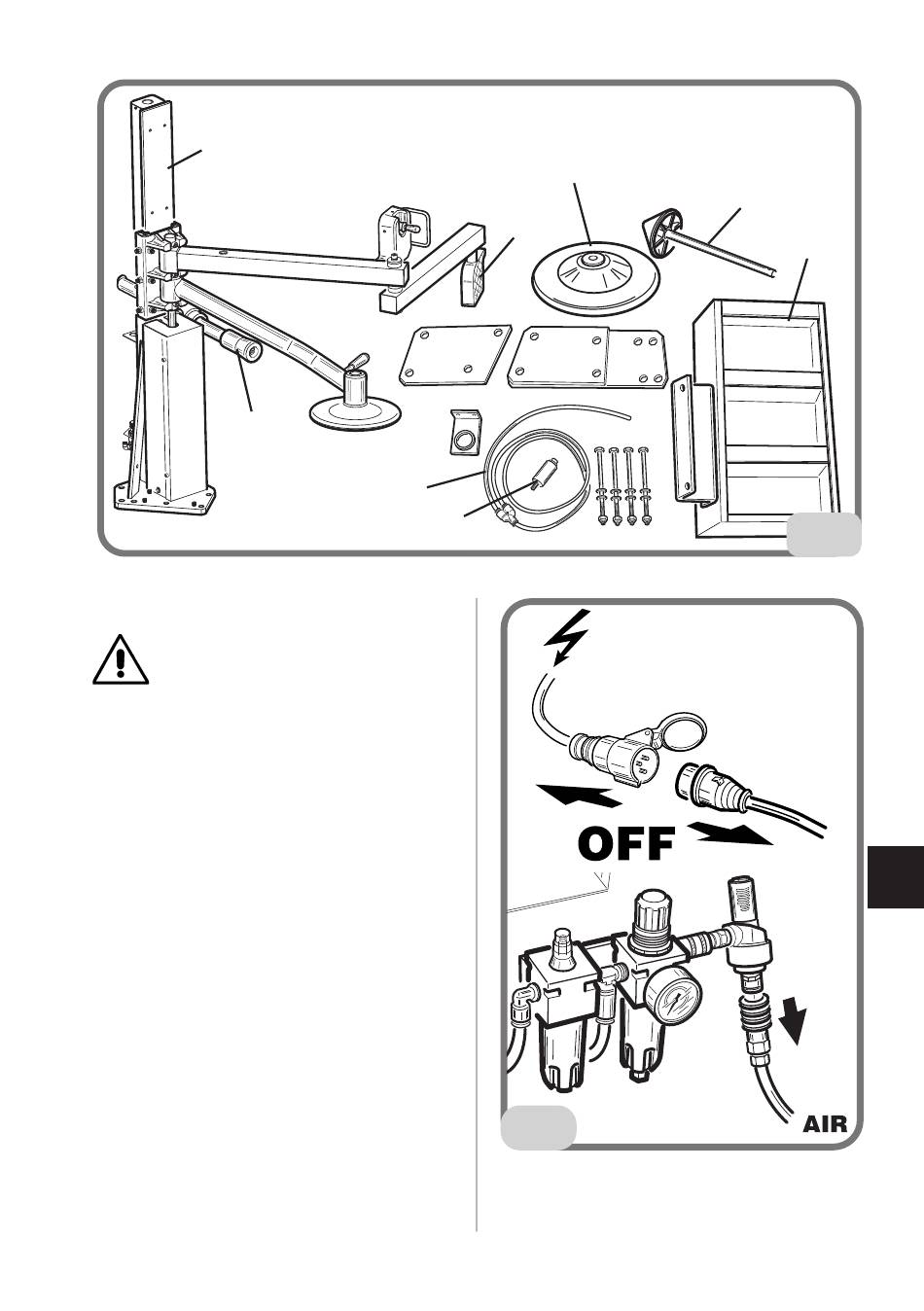

Packaging content Fig. 2
A Helper body
B Presser roller
C Presser pad
D Bead lifter disc
E Rim pressing tool
F Accessory holder
G Mounting material
H Presser pad spacer
3
1. Disconnect the machine from the mains
and compressed air line Fig. 3.
2. Move the unit as shown in figure 4.1
Operator's manual HELPER 4FD 21
