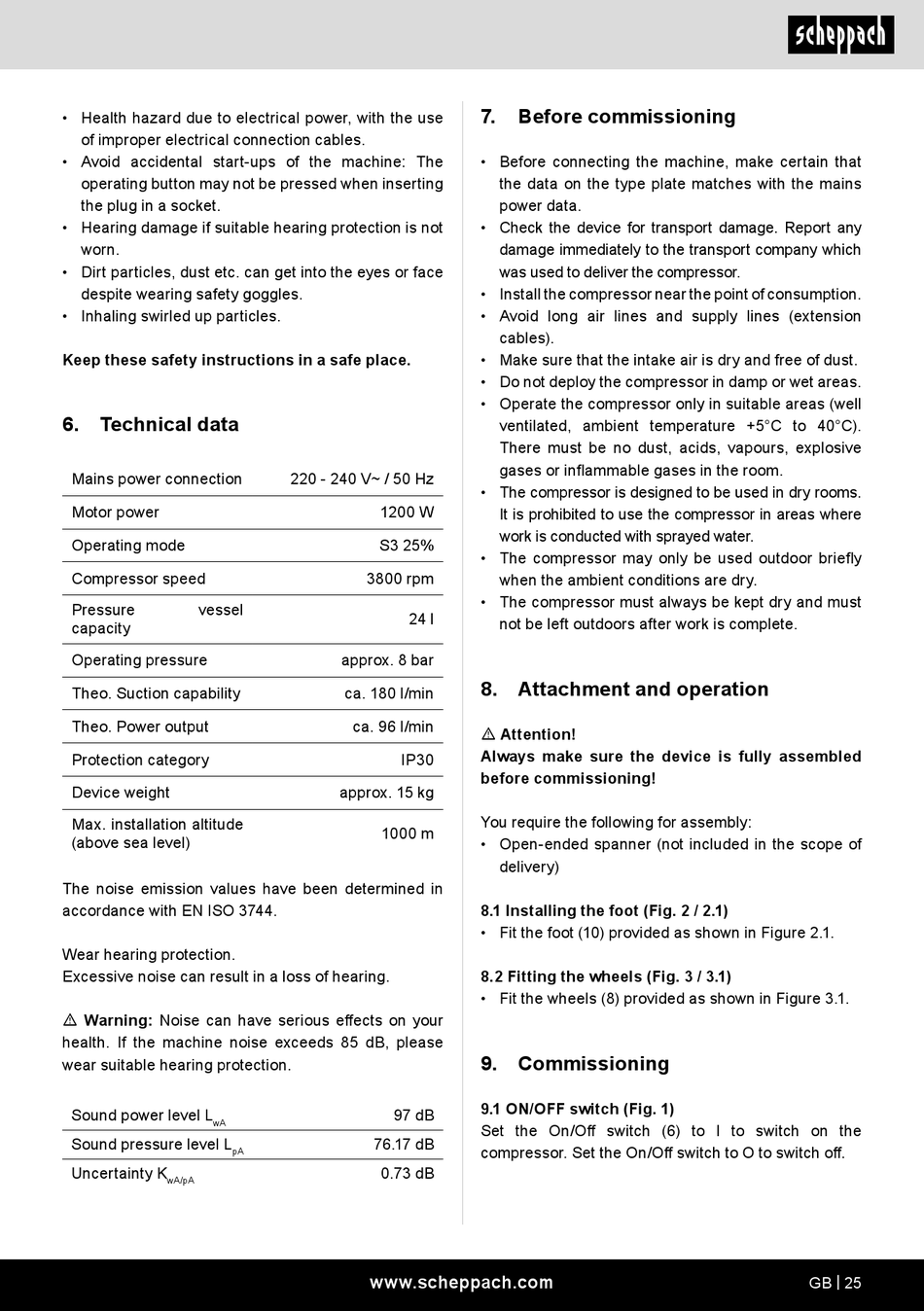

Scheppach HC24x Originalbetriebsanleitung Seite 25

• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Avoid accidental start-ups of the machine: The
operating button may not be pressed when inserting
the plug in a socket.
• Hearing damage if suitable hearing protection is not
worn.
• Dirt particles, dust etc. can get into the eyes or face
despite wearing safety goggles.
• Inhaling swirled up particles.
Keep these safety instructions in a safe place.
6. Technical data
Mains power connection
Motor power
Operating mode
Compressor speed
Pressure vessel
capacity
Operating pressure
Theo. Suction capability
Theo. Power output
Protection category
Device weight
Max. installation altitude
(above sea level)
The noise emission values have been determined in
accordance with EN ISO 3744.
Wear hearing protection.
Excessive noise can result in a loss of hearing.
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA
220 - 240 V~ / 50 Hz
1200 W
S3 25%
3800 rpm
24 l
approx. 8 bar
ca. 180 l/min
ca. 96 l/min
IP30
approx. 15 kg
1000 m
97 dB
76.17 dB
0.73 dB
www.scheppach.com
7. Before commissioning
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Check the device for transport damage. Report any
damage immediately to the transport company which
was used to deliver the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension
cables).
• Make sure that the intake air is dry and free of dust.
• Do not deploy the compressor in damp or wet areas.
• Operate the compressor only in suitable areas (well
ventilated, ambient temperature +5°C to 40°C).
There must be no dust, acids, vapours, explosive
gases or inflammable gases in the room.
• The compressor is designed to be used in dry rooms.
It is prohibited to use the compressor in areas where
work is conducted with sprayed water.
• The compressor may only be used outdoor briefly
when the ambient conditions are dry.
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
8. Attachment and operation
m Attention!
Always make sure the device is fully assembled
before commissioning!
You require the following for assembly:
• Open-ended spanner (not included in the scope of
delivery)
8.1 Installing the foot (Fig. 2 / 2.1)
• Fit the foot (10) provided as shown in Figure 2.1.
8.2 Fitting the wheels (Fig. 3 / 3.1)
• Fit the wheels (8) provided as shown in Figure 3.1.
9. Commissioning
9.1 ON/OFF switch (Fig. 1)
Set the On/Off switch (6) to I to switch on the
compressor. Set the On/Off switch to O to switch off.
