User manual / Bedienungsanleitung
2.3 Mounting the tonearm base on a Clearaudio I nnovation series turntable
I f you did not order your turntable together with the
the tonearm base, as usually a tonearm base for 9 inch tonearms is pre-assembled.

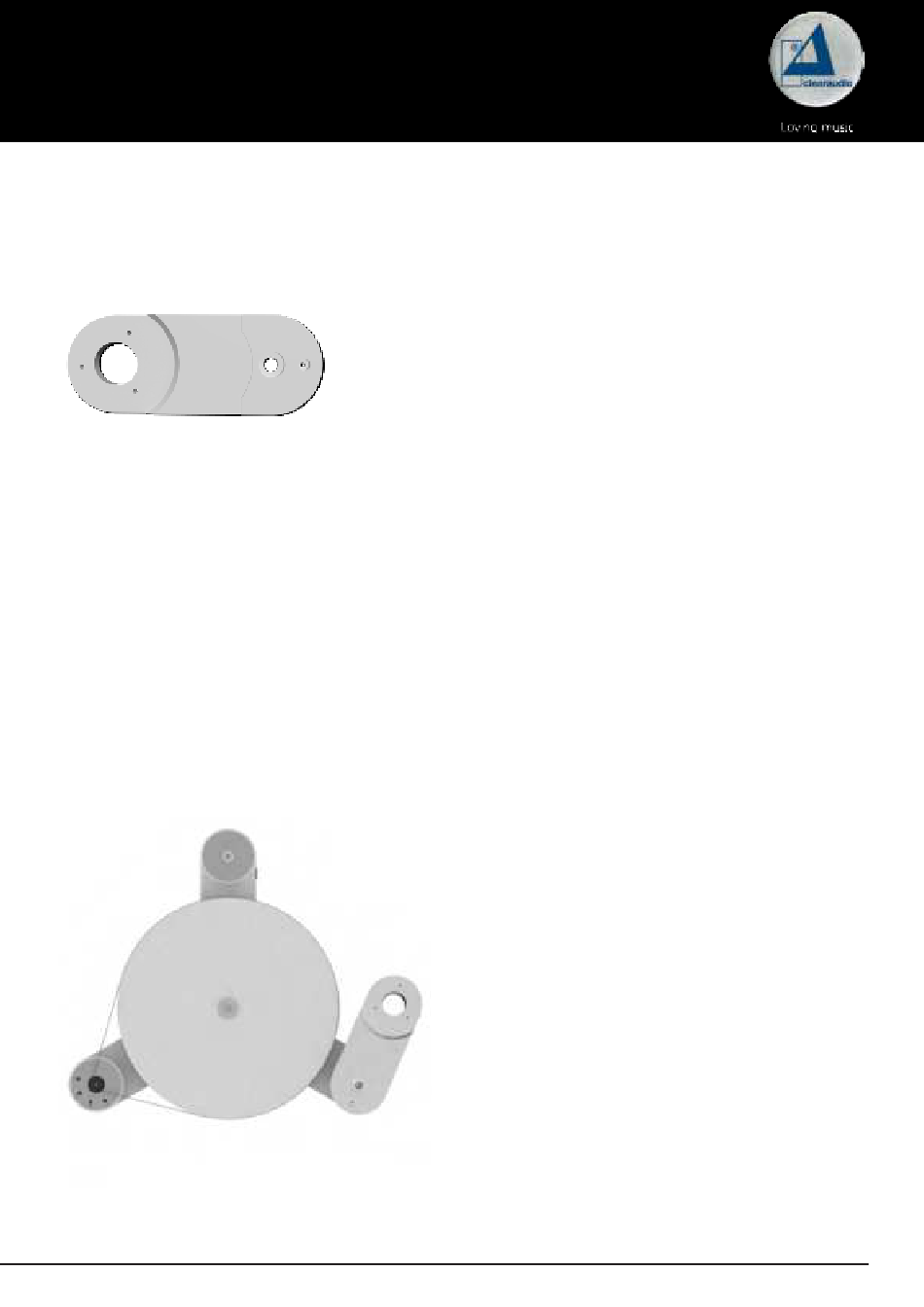

Pic. 6: Tonearm base for Innovation Serie (Art. No. AC030-4)
I f another tonearm base as shown in Picture 6 is installed, remove it by loosening the M4x10 screw
by using an hex wrench (#3) and using the hex wrench (#7) to remove the M10x20 screw together
with the tonearm base.
Mount the tonearm base Art. No. AC030-4 by first loosely tightening the M10x20 screw so that the
tonearm base remains freely rotatable for the final adjustments.
I f the correct tonearm base is already mounted, just loosen the M10x20 and M4x10 screws slightly
so that the tonearm base can be rotated freely for the fine adjustments.
Please remove the previous clamping ring.
Unity
The clamping of the
Pic. 7
: Rough alignment of the tonearm base
Made in Germany
tonearm will be installed later.
Unity
tonearm, it is usually necessary to replace
Page / Seite 9
