User manual / Bedienungsanleitung
2. Mounting the tonearm base
2.1 Mounting the tonearm base on the Clearaudio Performance DC or Ovation turntable
I f you did not order your turntable together with the
the tonearm base, as usually a tonearm base for 9 inch tonearms is pre-assembled.
Place the turntable on the edge of a table or similar surface to gain access to the tonearm base from
below. Remove the tonearm base by loosening the six M4 x 35mm screws with a hex wrench on the
bottom side of the clamping ring.
When assembling the
base must be able to rotate freely for final fine adjustment. In addition, the side hole with threaded
pin (M6x8) in the tonearm base must remain accessible (Pic. 3).
Make sure the fit is precise and the mounting surfaces are flat.

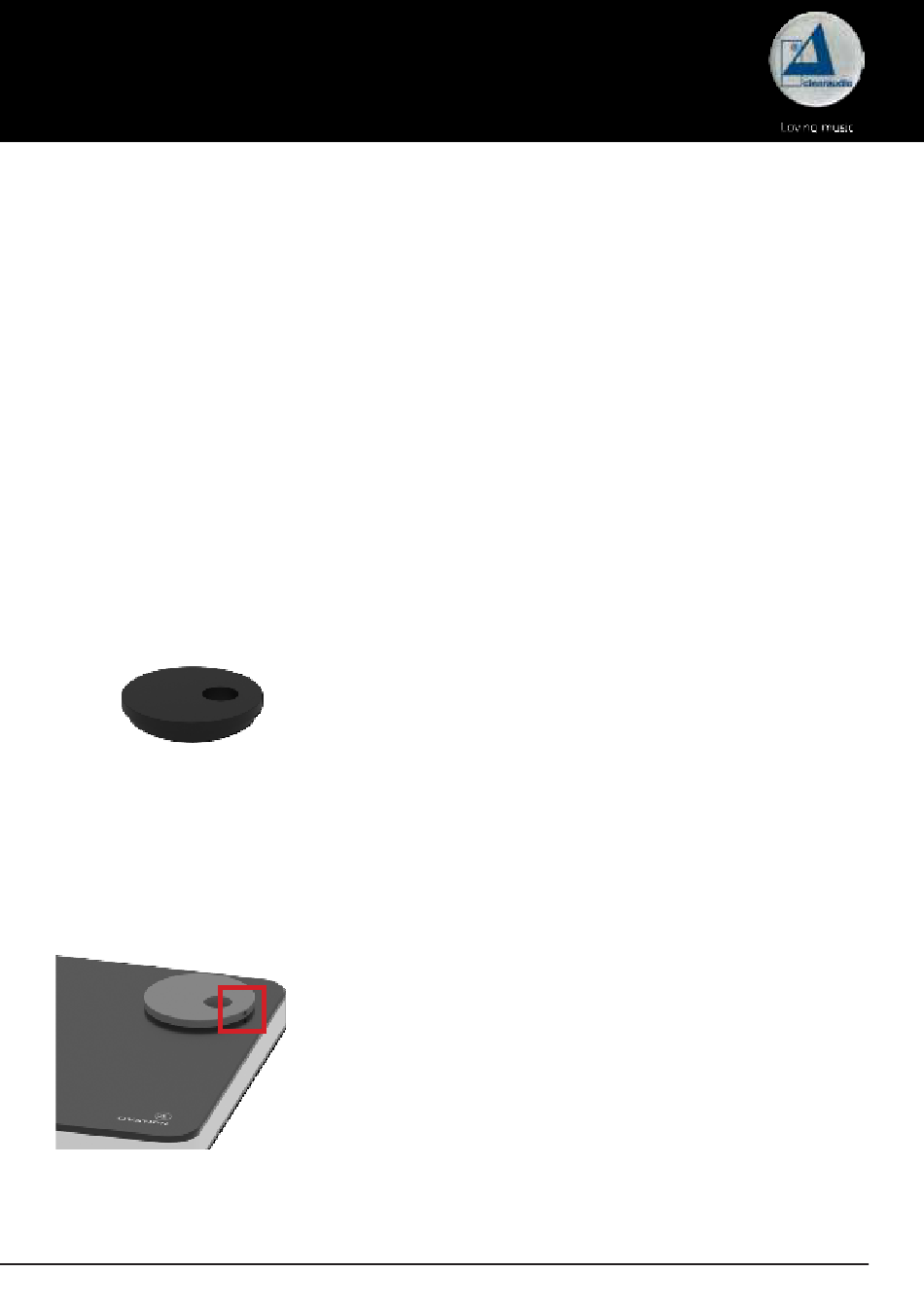

Pic. 2: Roundbase for Performance DC / Ovation / Reference Jubilee and Master Jubilee turntable (Art. No. AC031-9)
Pic. 3
: Rough alignment of the tonearm base
Made in Germany
Unity
tonearm base, please note to not fully tighten the screws yet, as the
Unity
tonearm, it is usually necessary to replace
Page / Seite 7
