User manual / Bedienungsanleitung
4. Adjustment of the
4.1 Setting the distance from spindle to tonearm pivot point and from spindle to rest
position holder

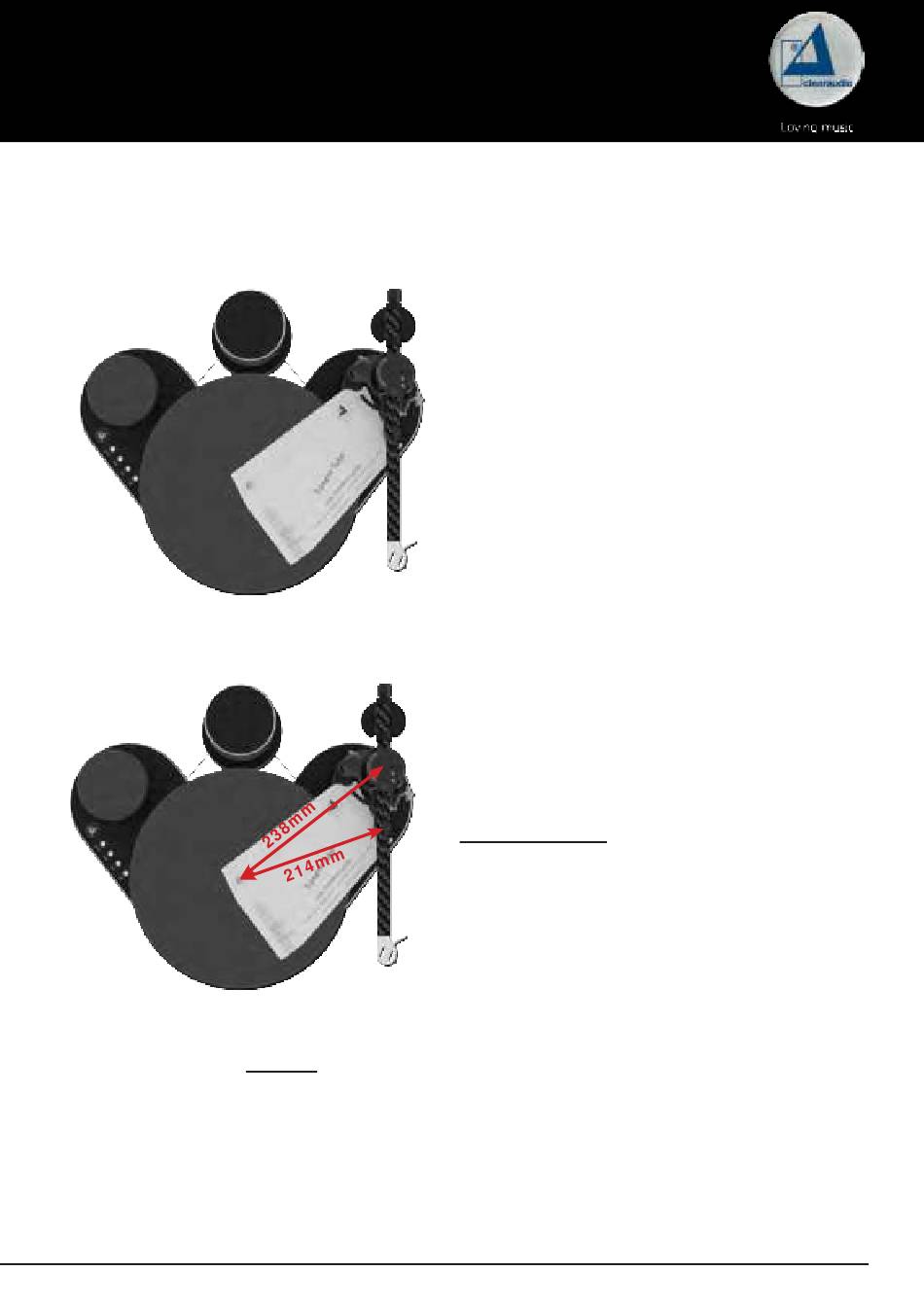

Pic. 13:
Positioning the alignment gauge
Pic. 14:
Alignment of the tonearm base and tonearm
To accurately check the distance from the spindle to the rest position holder, use a ruler.
The correct distance is
Now hand-tightened this position, using the set screw on the side of the tonearm base.
Made in Germany
Unity
tonearm
214mm
. You can adjust this distance by turning the tonearm.
To make the next adjustment, the tonearm or
tonearm base must be rotated as far away from
the platter spindle as possible.
Now place the included alignment gauge directly
on the turntable and align it so, that the "VTA
tower" marking points are in the direction of the
Unity tonearm (Pic. 13.).
Now turn the tonearm or base towards the
adjustment template until the VTA tower and the
resting position of the
adjustment template. Now screw the tonearm
base tight.
To precisely adjust the pivot point of the tonearm,
we recommend the
alignment gauge (Art. No. AC005/IEC, also
available at www.analogshop.de)!
Make sure that the distance between the spindle
and the pivot point of the tonearm must be
exactly 238mm (see Pic. 10). You can adjust
the distance by rotating the tonearm base.
Please screw the tonearm base back on and check
the dimensions again.
Unity
tonearm touch the
Clearaudio
cartridge
Page / Seite 13
