User manual / Bedienungsanleitung
2.2 Mounting the tonearm base on a Clearaudio I nnovation series turntable
I f the tonearm base is already pre-assembled, it is in a position which is optimized for the packaging.
The position of the tonearm base will be correct during the adjustment of the tonearm.
Please check if the correct tonearm base is mounted on your turntable (Pic. 4).
Please note that you will need an different tonearm base, if you want to mount the Magnify
in combination with the VTA-Lifter (Pic. 5).
I f not, remove the previous tonearm base by loosening the screw of the aluminium base with a 7mm
hex wrench.
Exchange the tonearm base against the correct one and place it as seen in picture 6.
Now you can loosely tighten it, so that the tonearm base is still rotatable.

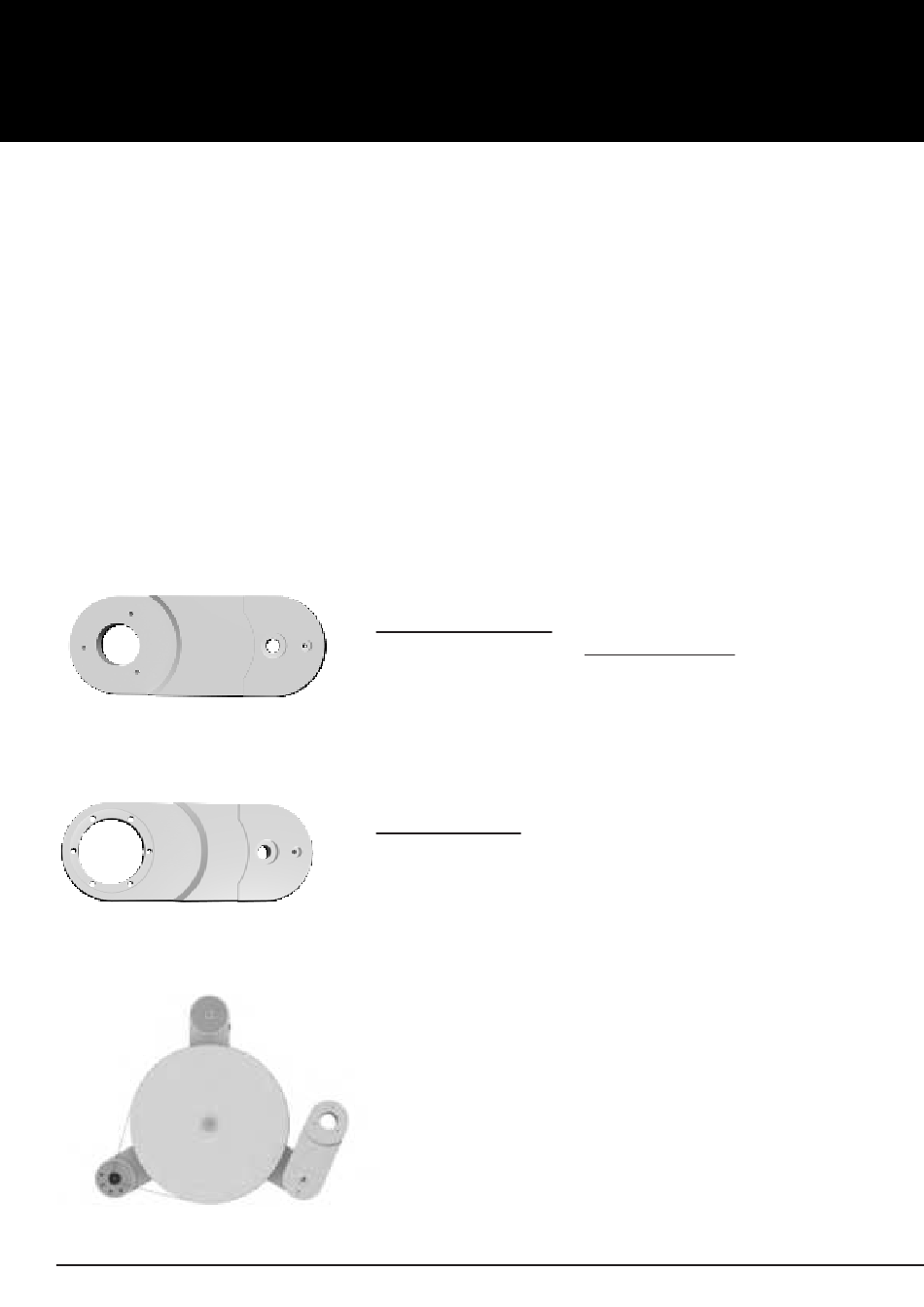

Pic. 4:
Tonarme base for I nnovation Serie
(Art. No. AC030-4)
Pic. 5:
Tonarm base for I nnovation Serie
(Art. No. AC030-10)
Pic. 6:
Rough alignment of the tonearm base
Page / Seite 8
Without VTA-Lifter
To mount the tonearm
tonearm base AC030-4 (Pic. 4).
With VTA-Lifter
To mount the tonearm in combination with VTA-Lifter, you
need the tonearm base AC030-10 (Pic. 5).
without VTA-Lifter
© clearaudio
electronic GmbH, 2022-11
