User manual / Bedienungsanleitung
Make sure the tonearm VTA setting is set to "0".
Loosen the tonearm using the set screw on the side of the tonearm base.
Now place a record, the included alignment gauge or the
(Art. No. AC005/IEC, also available at www.analogshop.de) on the turntable and remove the needle
guard of your cartridge.
Remove the tonearm anti-skating screw by unscrewing it (Pic. 16). This will be reinserted at a later
date.

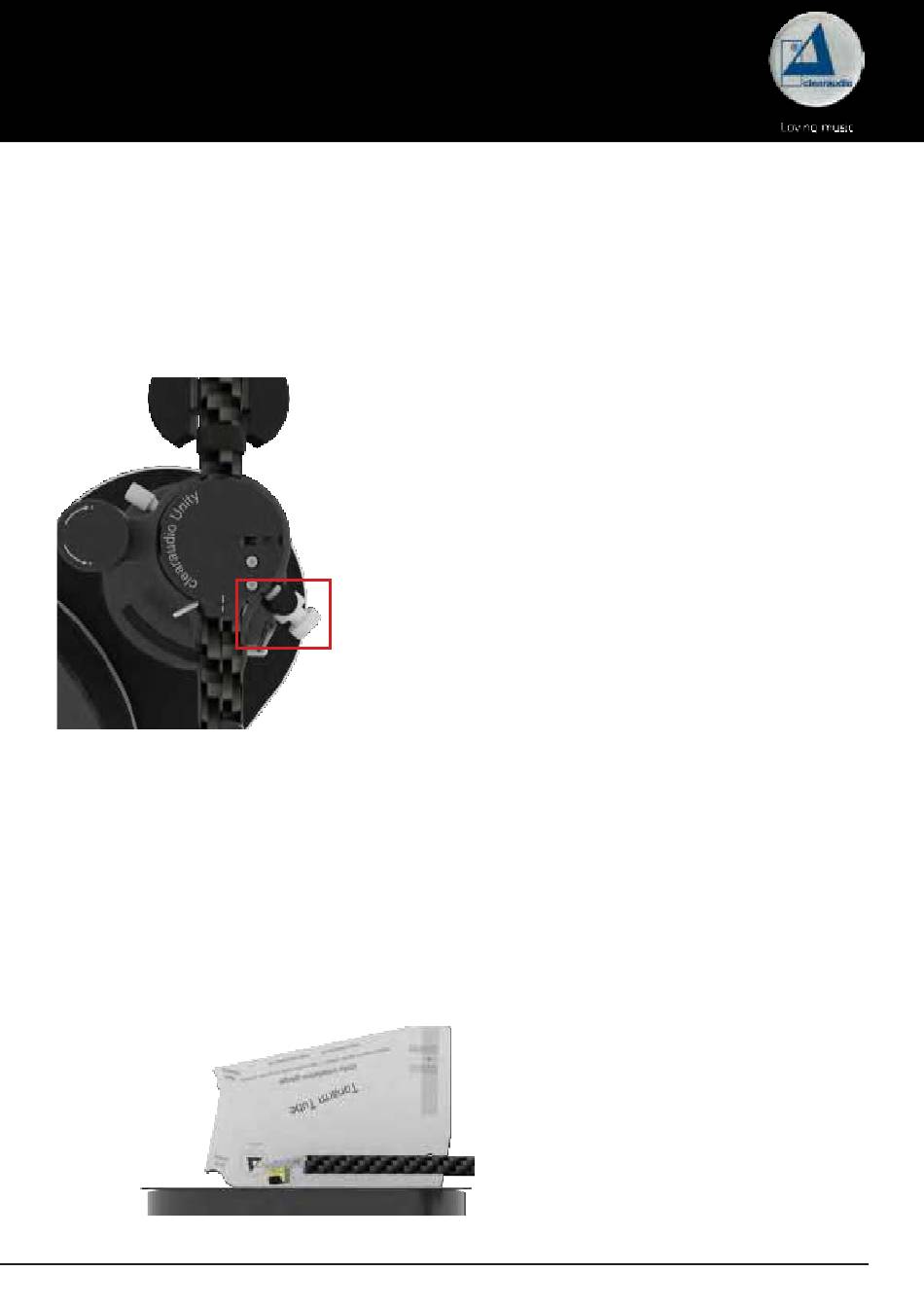

Pic. 16:
Anti-skating screw
After fixing, you can check the setting again and correct it if necessary.
I f this is unchanged, you can put the tonearm back in the rest position holder and put the needle
guard back on.
The tonearm can now be screwed into the tonearm base, using the set screw on the side.
Pic 17:
Parallelism of the tonearm tube
Made in Germany
Please exercise extreme caution during the follow ing
steps!
Never move the cartridge in the adjustment template
w hile it is low ered.
Lower the tonearm using the lift and check that the tonearm tube
is parallel to the record. To do this, you can use the alignment
gauge provided and place it on the record behind the tonearm
and use it to read the parallelism (Pic. 17).
The tonearm tube should not touch the lift bar, but the needle
must rest on the record or I EC template.
I f the tonearm tube is not parallel but shows a slight inclination,
put the tonearm tube back into its rest position.
Now carefully raise/ lower the entire tonearm in the base and
check the parallelism again. I n this position, the tonearm is now
fixed hand-tight in the base.
Clearaudio
cartridge alignment gauge
