4.3 Correct alignment and adjustment of the cartridge
For the final adjustment of the tonearm and cartridge, you will need the alignment gauge that is also
included in the scope of delivery. Place this directly on the turntable and align it so that the arrow
points to the tonearm pivot point (Pic. 18).

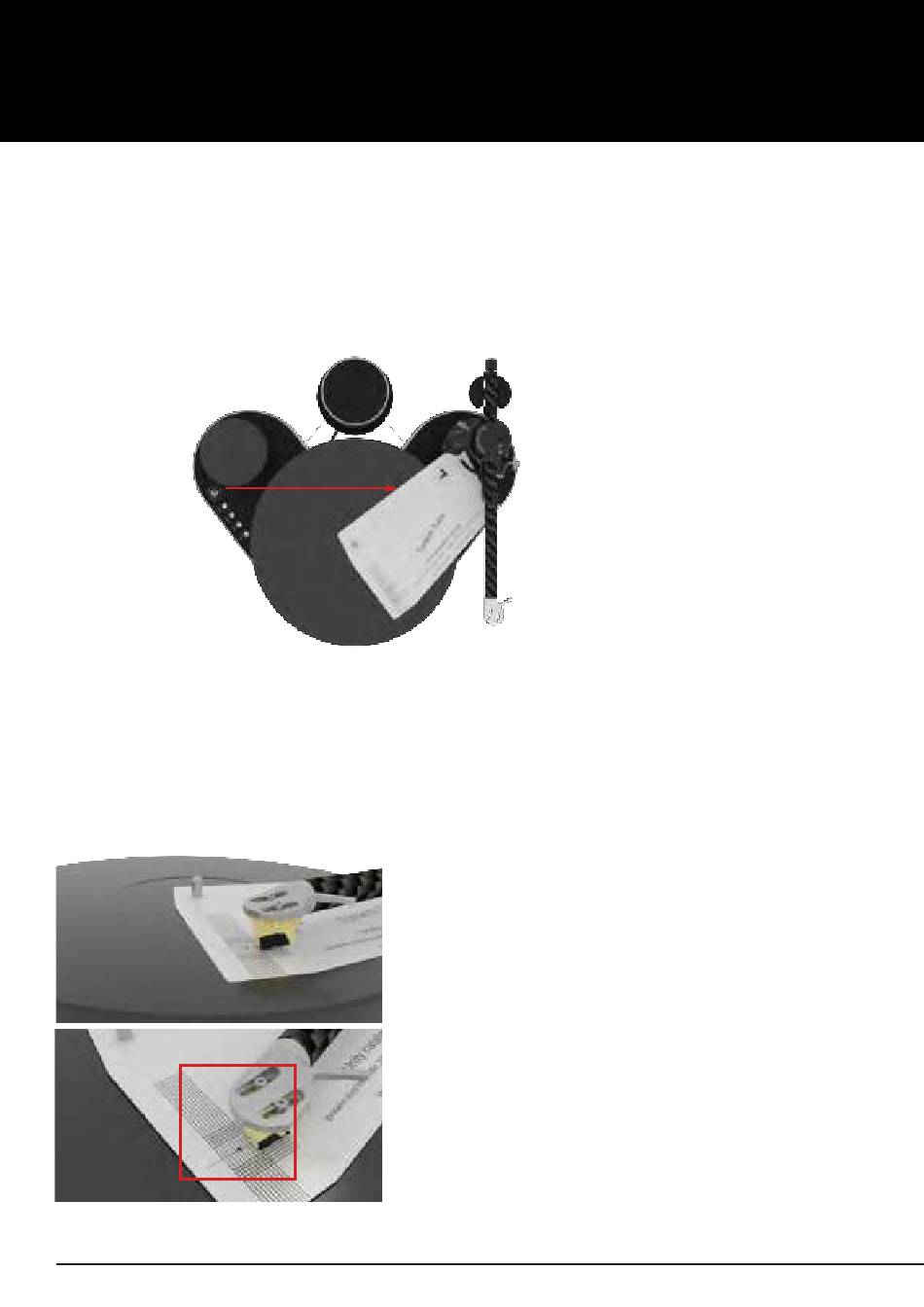

Pic. 18:
Placement of the alignment gauge
Remove the tonearm from the rest position and align it in the area of the crosshairs. Lower the
tonearm and check the alignment.
The cartridge body must be aligned in the grid of the template so that the needle tip is in the
crosshairs and the side and front edges of the housing are parallel to the grid lines.
Pic. 19:
Correct alignment of the cartridge
Page / Seite 16
To correct this, you have to loosen the screws on the
cartridge a little, so that the cartridge can move in the
headshell.
Check the setting again after you have fixed the screws!
