User manual / Bedienungsanleitung
4.5 Adjustment of the azimuth
The azimuth is the angle of the cartridge stylus to the record surface.
Viewed from the front, the cartridge needle have to be vertical to the record.
Please note:
The azimuth is already set at the factory.
I f you still want to optimize the azimuth, proceed as follows:

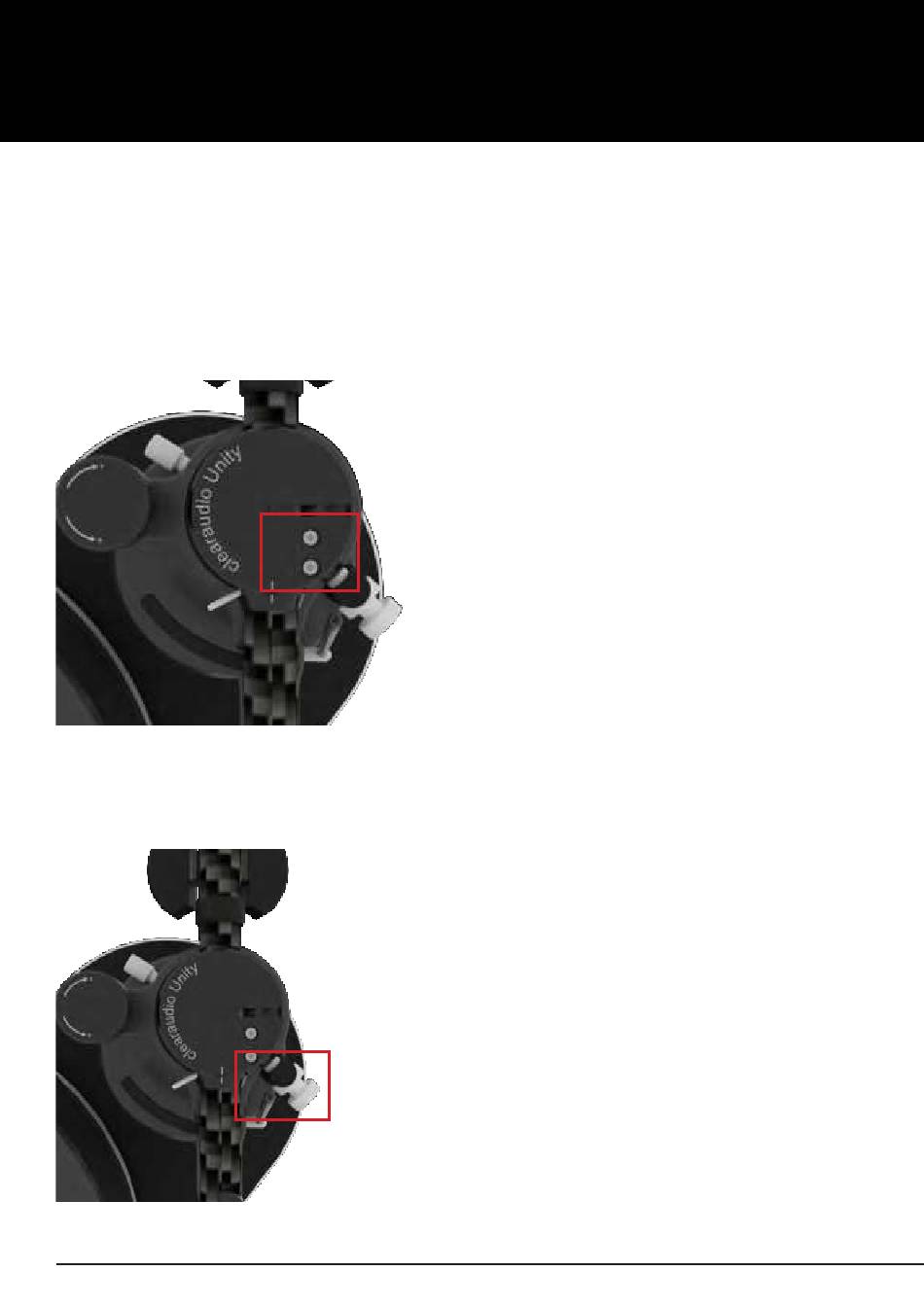

Pic 22:
Adjustment of the azimuth
4.6 Anti-skating adjustment
Pic. 23:
Anti-skating screw
Page / Seite 18
Please note:
Since it is a unit, the tw o screw s ( Pic. 22) should
never be loosened individually!
When working, always hold the bearing block for
safety. Using an hex wrench (#2.5), loosen the screws
alternately with a minimum turn (max. 1/4 turn) until
the tonearm can be turned easily.
After you have found the correct position, carefully
tighten the two allen screws again, without changing
the previously selected position.
Also proceed alternately and evenly with a minimum
turn - max. 1/ 4 turn until the screws cannot be
tightened any further.
I n order to be able to make the next adjustment, the previously
removed anti-skating screw is reinserted.
You can adjust the anti-skating setting by adjusting the anti-
skating screw.
This is determined depending on the tracking force of the
cartridge.
Please note:
When the screw is removed, this corresponds to a "0"
position of the anti-skating. This is increased by screw ing
in the screw .
