3.1 Mounting on a Performance DC / Ovation / Reference Jubilee / Master Jubilee
turntable
First insert the tonearm cable and then the tonearm foot of the
tonearm base.
Please note:
I f you have ordered your
(DIN to RCA) must first be connected to the tonearm.
Please now carefully guide the tonearm foot through the screwed-on base and the clamping ring.
3.2 Mounting on an I nnovation series turntable
Take the clamping ring out of the packaging and place it on the recess in the tonearm base.
Now you can attach the clamping ring to the tonearm base using the 3 M4x10 screws provided.
Make sure that the side hole w ith the set screw ( M6x8) remains accessible ( Pic. 12) .

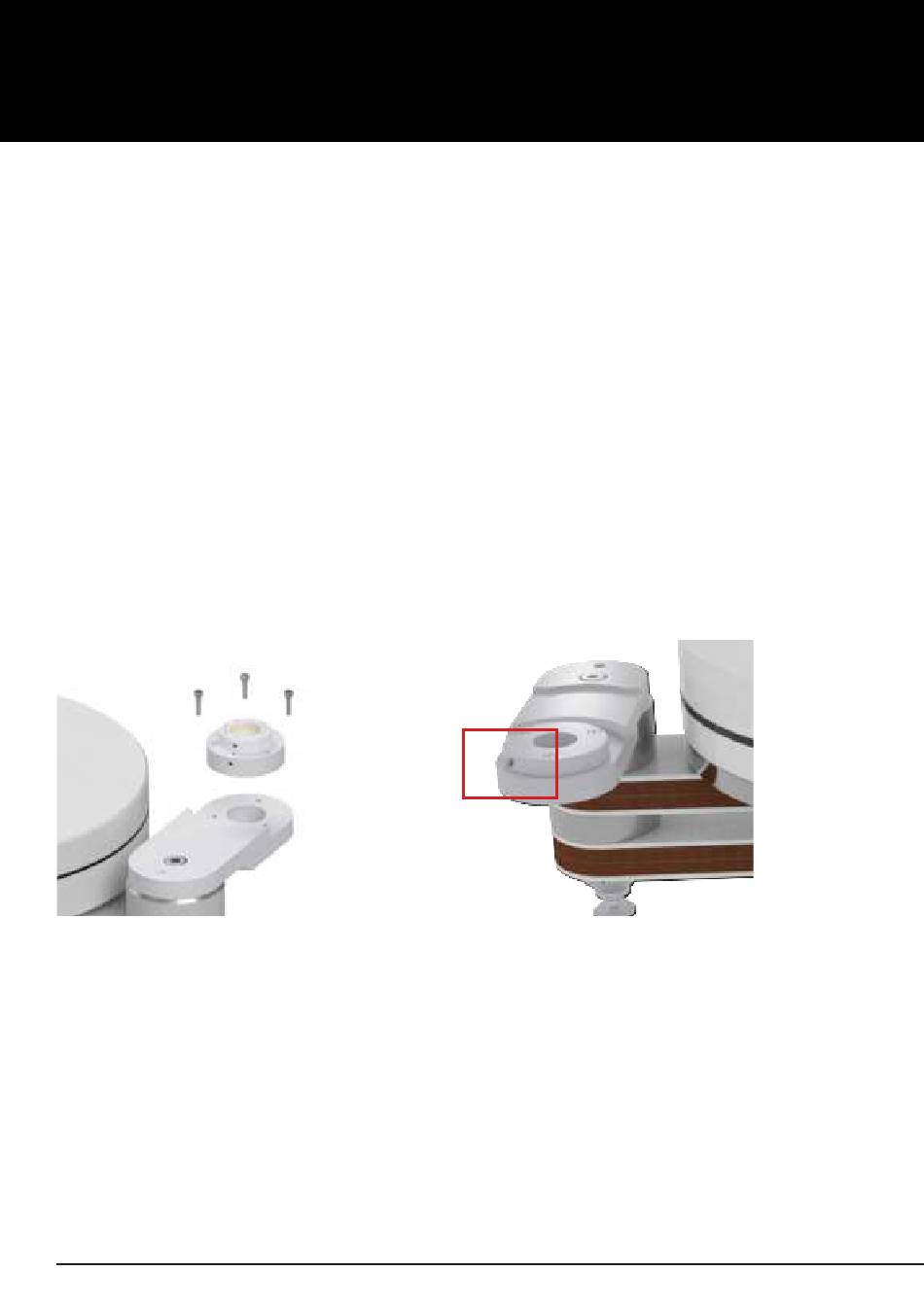

Pic. 11:
Mounting the clamping ring
After that you can first guide the tonearm cable and then the tonearm foot of the Unity
the hole of the tonearm base.
Please note:
I f you have ordered your
(DIN to RCA) must first be connected to the tonearm.
Make sure that the cable is not damaged or kinked.
Page / Seite 12
Unity
tonearm in a DI N version, the included tonearm cable
Unity
tonearm in a DI N version, the included tonearm cable
Unity
tonearm into the hole in the
Pic. 12:
Alignment of the clamping ring
