User manual / Bedienungsanleitung
Magnify
2.
Please keep in mind that the following instructions are covering the mount of the
on any Clearaudio turntable. Installation on other brand turntables is possible, but not covered in
this manual.
Please refer to the turntable manufacturer´s user manual.

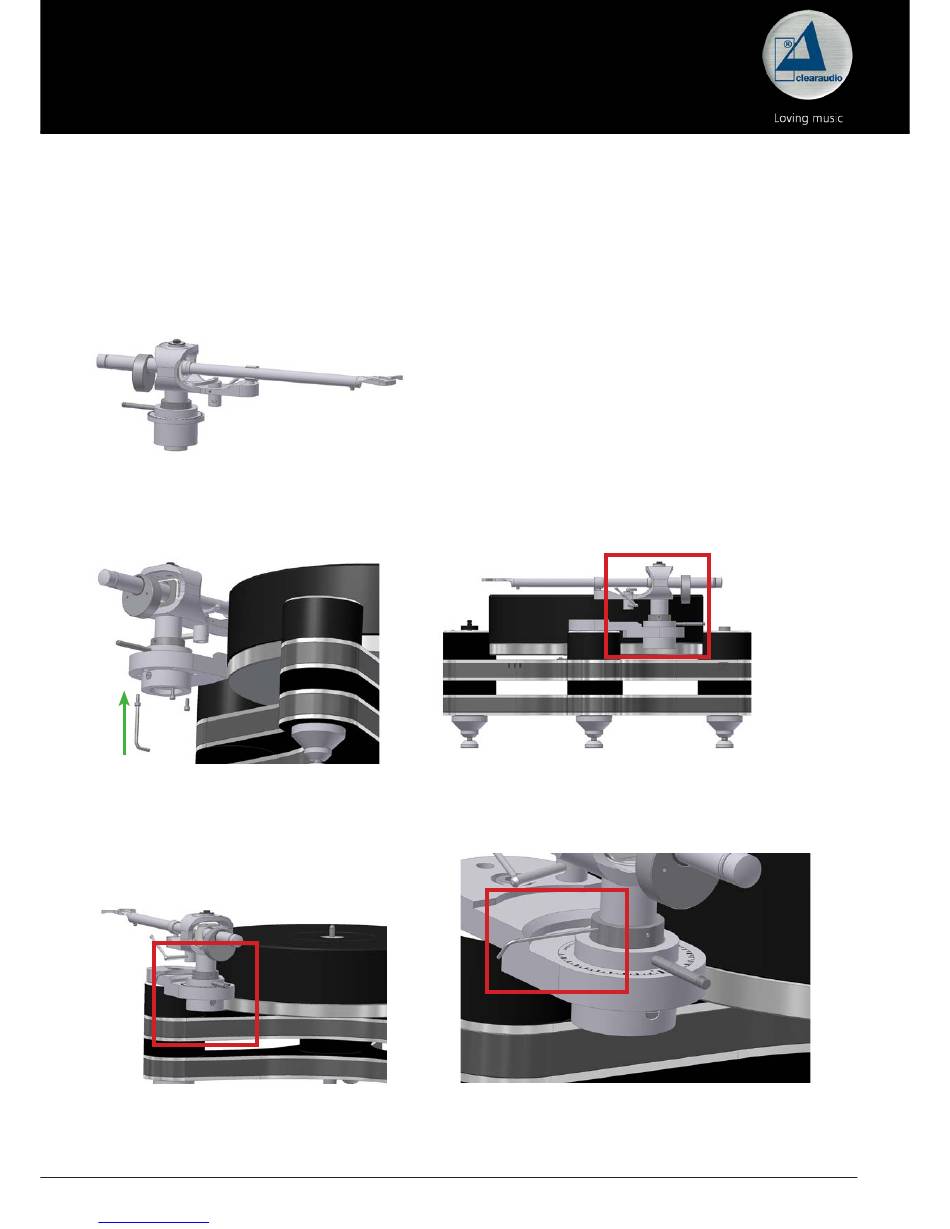

2.1 Magnify - tonearm with VTA – Lifter:
Magnify
Pic. 2:
1).
Slide the VTA-Lifter into the drilling of the tonearm base. Lock the VTA-Lifter with the delivered
screws on the bottomside of the tonearm base (pic. 3 ).
Pic. 3: Set up of tonearm base with VTA-Lifter
To pre-adjust the height of the tonearm in the VTA-Lifter, lift the VTA-Lifter up and loosen the screws
and slide the tonearm shaft to the required position.
Pic. 4: Adjustment of the height of tonearm with VTA-Lifter
After adjustment of the tonearm height tighten the screw again. For the final height adjustment the
cartridge should be mounted.
Made in Germany
