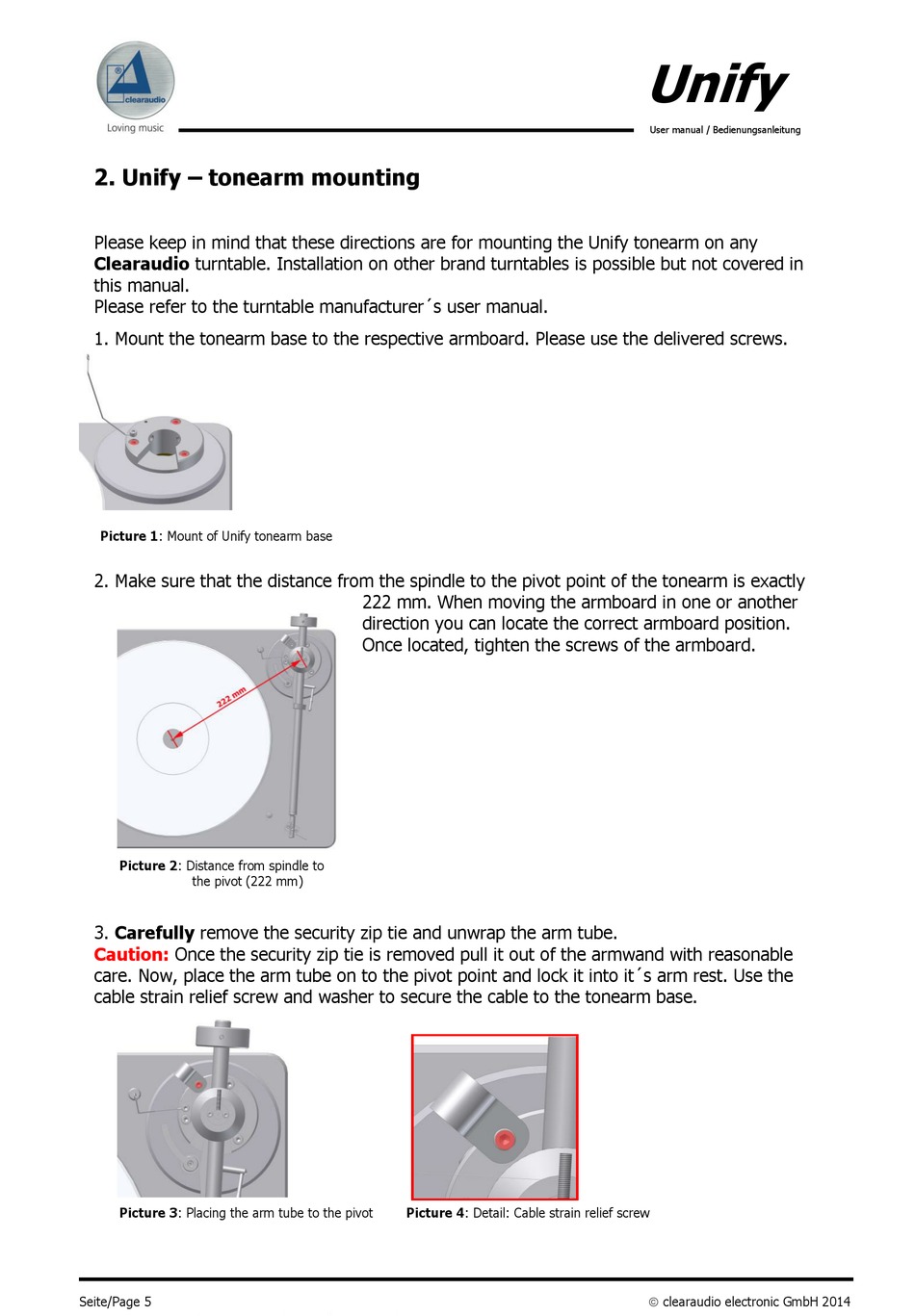

2. Unify – tonearm mounting
Please keep in mind that these directions are for mounting the Unify tonearm on any
Clearaudio turntable. Installation on other brand turntables is possible but not covered in
this manual.
Please refer to the turntable manufacturer´s user manual.
1. Mount the tonearm base to the respective armboard. Please use the delivered screws.
Picture 1: Mount of Unify tonearm base
2. Make sure that the distance from the spindle to the pivot point of the tonearm is exactly
Picture 2: Distance from spindle to
the pivot (222 mm)
3. Carefully remove the security zip tie and unwrap the arm tube.
Caution: Once the security zip tie is removed pull it out of the armwand with reasonable
care. Now, place the arm tube on to the pivot point and lock it into it´s arm rest. Use the
cable strain relief screw and washer to secure the cable to the tonearm base.
Picture 3: Placing the arm tube to the pivot
point
Seite/Page 5
222 mm. When moving the armboard in one or another
direction you can locate the correct armboard position.
Once located, tighten the screws of the armboard.
Picture 4: Detail: Cable strain relief screw
Unify
User manual / Bedienungsanleitung
 clearaudio electronic GmbH 2014
