7.2 WT teach modes
8 Troubleshooting
8.1 Troubleshooting
8018110.1P3G/2024-10-14 | SICK
Subject to change without notice
Q1
–
+
Q1

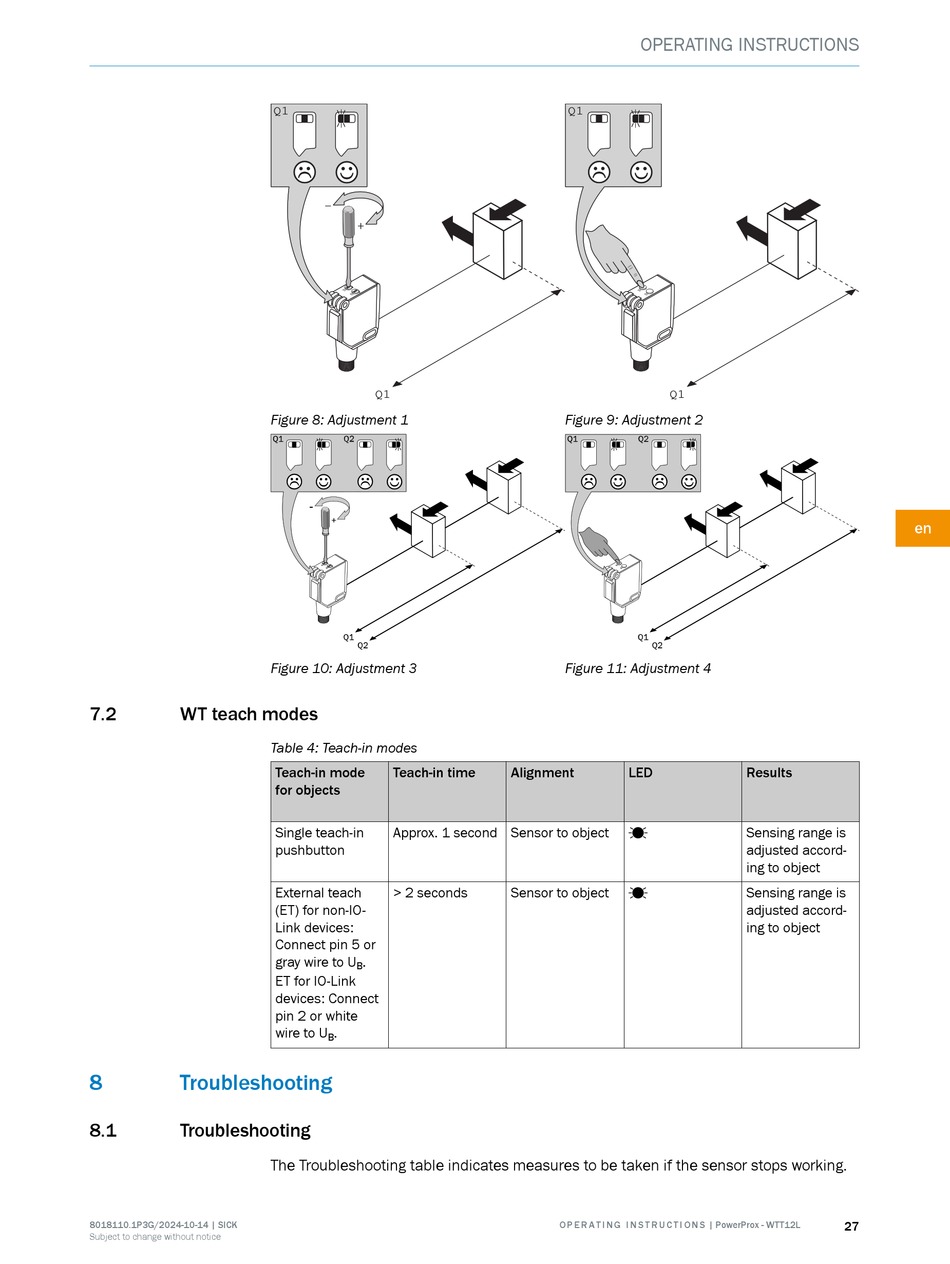

Figure 8: Adjustment 1
Figure 10: Adjustment 3
Table 4: Teach-in modes
Teach-in mode Teach-in time
for objects
Single teach-in Approx. 1 second Sensor to object
pushbutton
External teach > 2 seconds
(ET) for non-IO-
Link devices:
Connect pin 5 or
gray wire to U .
B
ET for IO-Link
devices: Connect
pin 2 or white
wire to U .
B
The Troubleshooting table indicates measures to be taken if the sensor stops working.
OPERATING INSTRUCTIONS
Q1
Q1
Figure 9: Adjustment 2
Figure 11: Adjustment 4
Alignment LED
Ö
Sensor to object
Ö
O P E R A T I N G I N S T R U C T I O N S | PowerProx - WTT12L
en
Results
Sensing range is
adjusted accord‐
ing to object
Sensing range is
adjusted accord‐
ing to object
27
