6.3.1

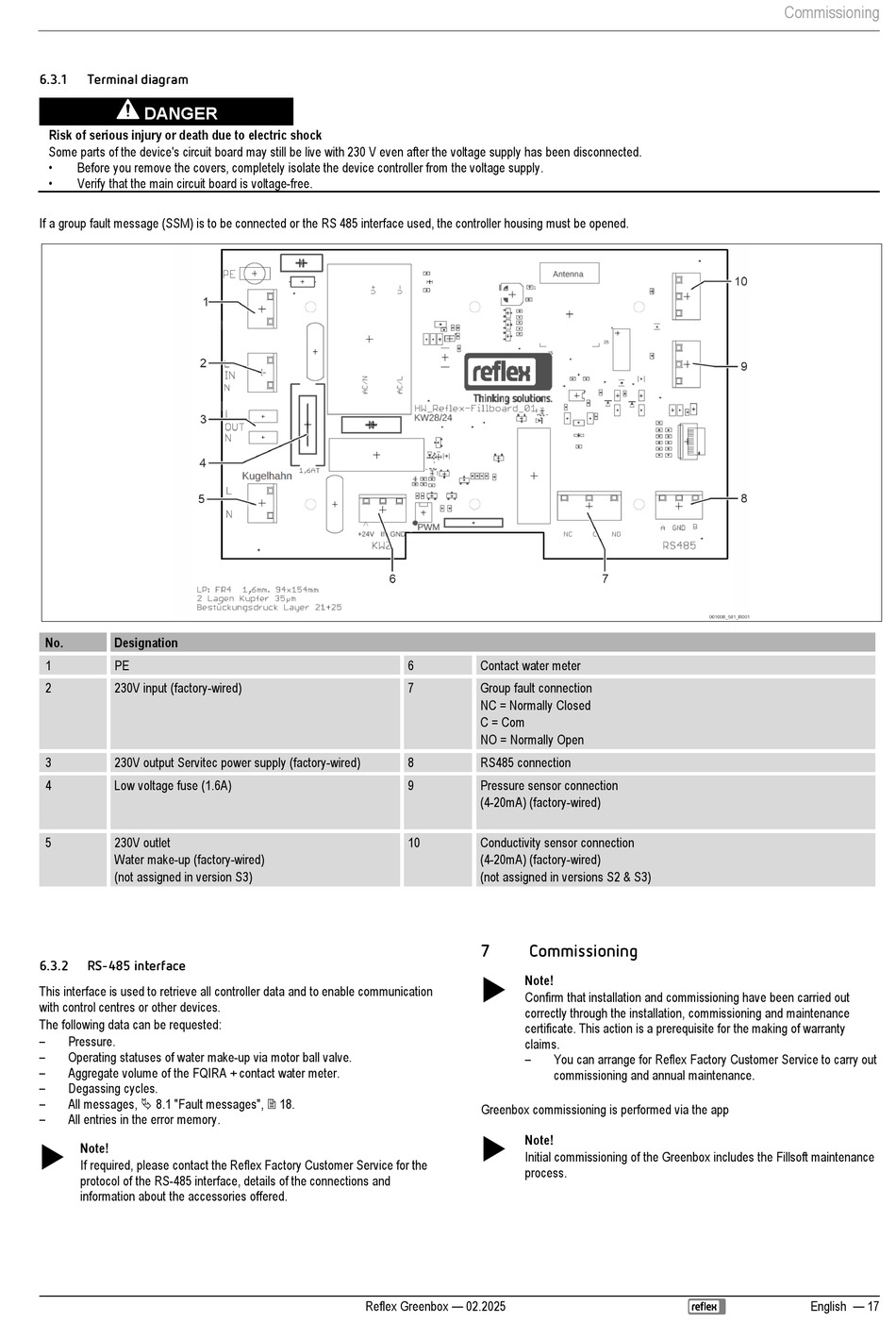

Terminal diagram
DANGER
Risk of serious injury or death due to electric shock
Some parts of the device's circuit board may still be live with 230 V even after the voltage supply has been disconnected.
•
Before you remove the covers, completely isolate the device controller from the voltage supply.
•
Verify that the main circuit board is voltage-free.
If a group fault message (SSM) is to be connected or the RS 485 interface used, the controller housing must be opened.
No.
Designation
1
PE
2
230V input (factory-wired)
3
230V output Servitec power supply (factory-wired)
4
Low voltage fuse (1.6A)
5
230V outlet
Water make-up (factory-wired)
(not assigned in version S3)
6.3.2
RS-485 interface
This interface is used to retrieve all controller data and to enable communication
with control centres or other devices.
The following data can be requested:
–
Pressure.
–
Operating statuses of water make-up via motor ball valve.
–
Aggregate volume of the FQIRA + contact water meter.
–
Degassing cycles.
–
All messages, 8.1 "Fault messages", 18.
–
All entries in the error memory.
Note!
If required, please contact the Reflex Factory Customer Service for the
protocol of the RS-485 interface, details of the connections and
information about the accessories offered.
6
Contact water meter
7
Group fault connection
NC = Normally Closed
C = Com
NO = Normally Open
8
RS485 connection
9
Pressure sensor connection
(4-20mA) (factory-wired)
10
Conductivity sensor connection
(4-20mA) (factory-wired)
(not assigned in versions S2 & S3)
7
Commissioning
Note!
Confirm that installation and commissioning have been carried out
correctly through the installation, commissioning and maintenance
certificate. This action is a prerequisite for the making of warranty
claims.
–
Greenbox commissioning is performed via the app
Note!
Initial commissioning of the Greenbox includes the Fillsoft maintenance
process.
Reflex Greenbox — 02.2025
You can arrange for Reflex Factory Customer Service to carry out
commissioning and annual maintenance.
Commissioning
English — 17
