Description of the device
CAUTION
Risk of injury due to heavy device weight
The device weight may cause physical injury or accidents.
If necessary, work with a second person during assembly or
disassembly.
4
Description of the device

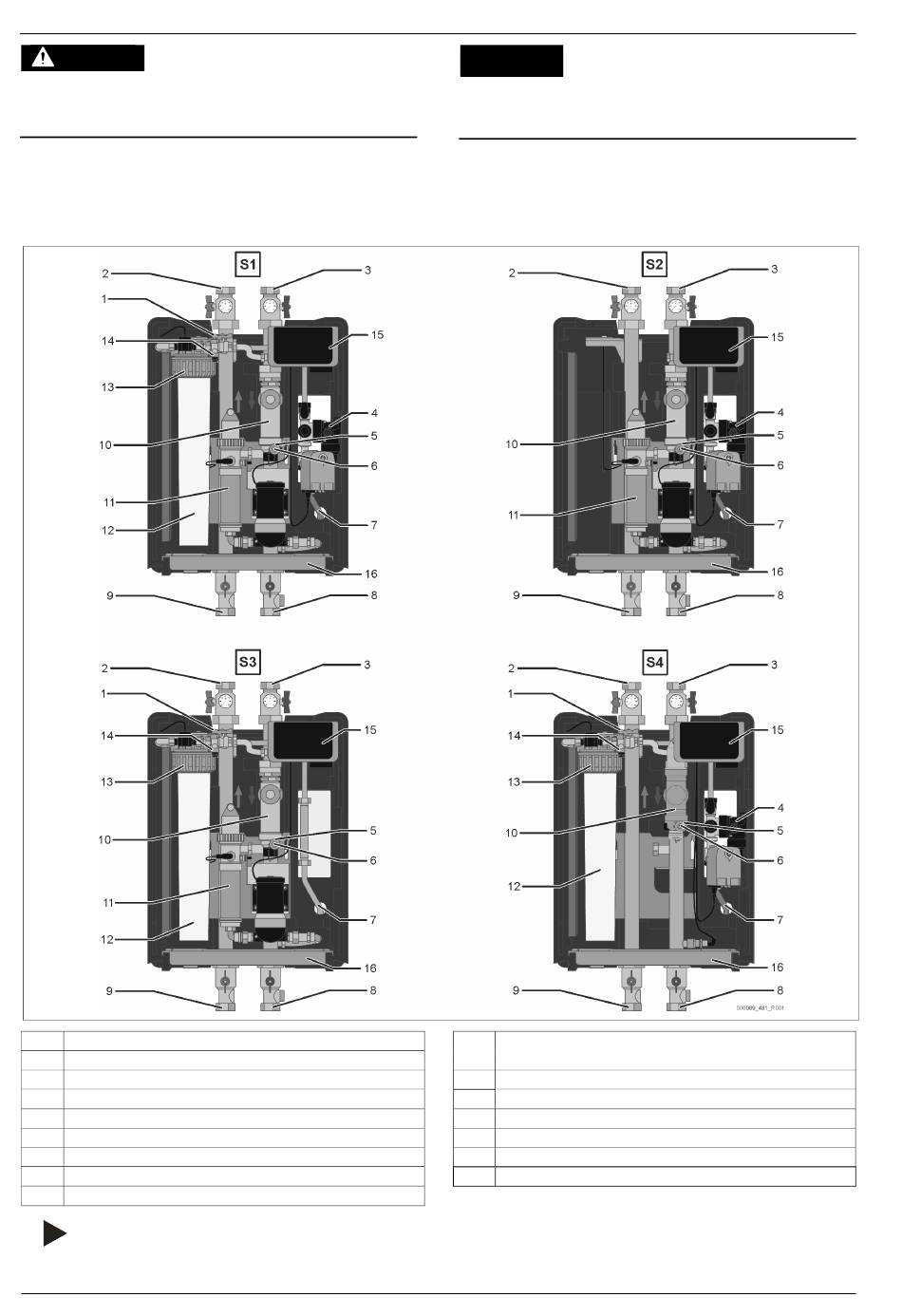

4.1
Overview
1
Water treatment shut-off
2
Heat consumer flow
3
Heat consumer return
4
System separator unit (Fillset Standard)
5
Separator cap
6
Square separator (to hold the separator cap as a turning handle)
7
Water make-up water connection
8
Heat generator return with MAG (expansion vessel) connection
9
Heat generator flow
Note!
Item 16 Dripping water capture tray: Dripping water must be drained away on-site in accordance with regional regulations (optionally via a DN40 or hose
connection).
14 — English
ATTENTION
Device damage during transport
If the device is not transported correctly, it may be damaged.
Use suitable covers to protect the connections against damage.
10
S1-S3: Exdirt sludge and magnetite separator
S4: Extwin sludge, magnetite and microbubble separator
11
Vacuum spray tube degassing (Servitec plug-in)
12
Water treatment (Fillsoft)
13
Fillsoft screw closure
14
Venting screw
15
Controller/display (Reflex Control Smart)
16
Dripping water capture tray
Reflex Greenbox — 02.2025
