Fronius AB Profinet RT Bedienungsanleitung Seite 64

(4)

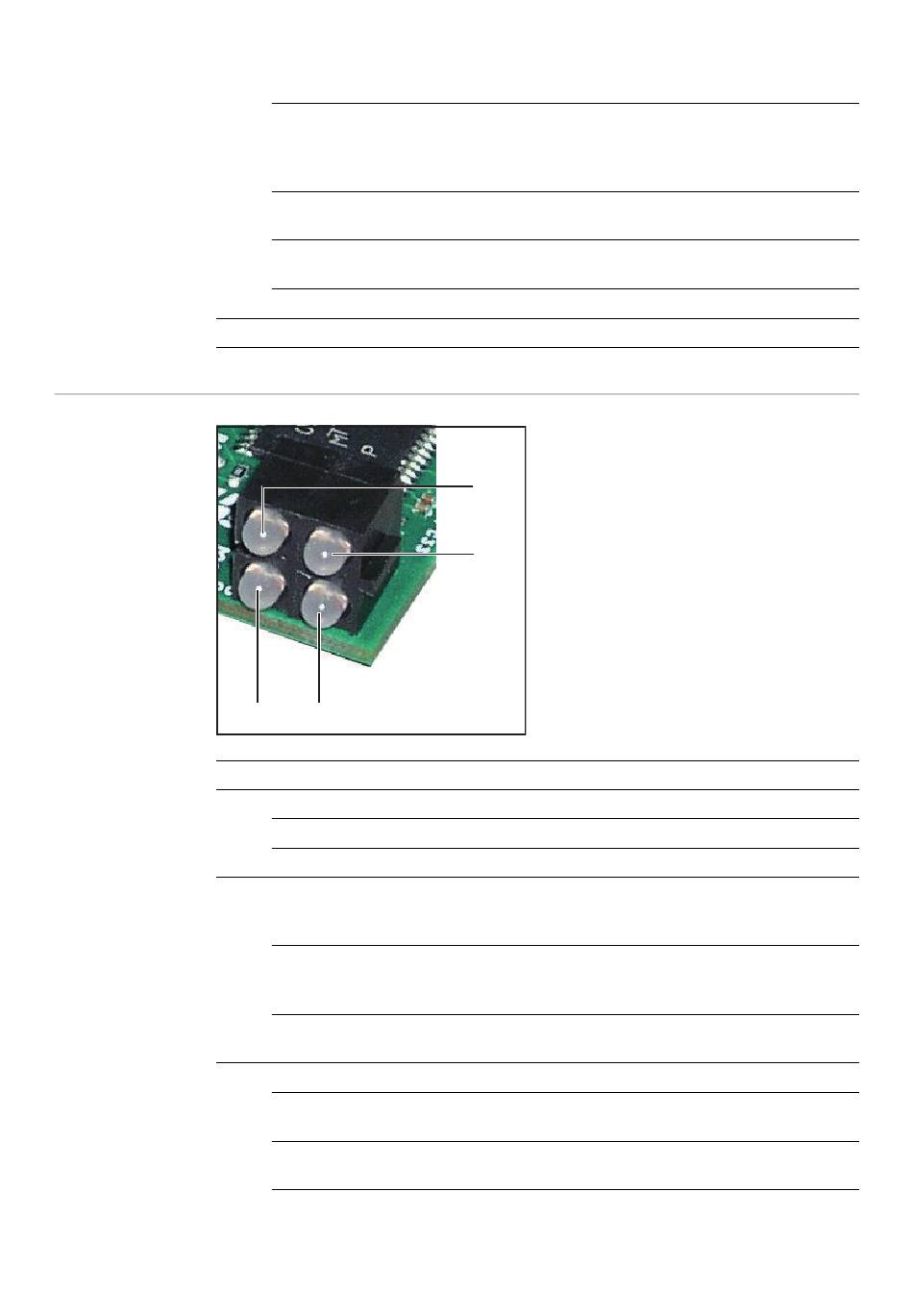

LED indicator on
Anybus-S Profi-
net IRT and IRT
FO bus module
Item
(1)
(2)
(3)
64
Flashes green Identification of the Anybus-S bus module
twice
Flashes red Configuration error
once -
-
-
Flashes red No station name or no IP address assigned
three times
Flashes red four Internal fault
times
Off Switched off or not initialised
- Bus module initialised, no error
(4) (3)
Display Meaning
Lights up green Connection to port 1 established
Flashing green Port 1 receiving / transferring data
Off No connection to port 1 or device is switched off
Lights up green Online, in operation
-
-
Flashes green Online, STOP
once -
-
Off Offline
-
Lights up green Bus module initialised, no error
Flashes green Diagnosis data present
once
Flashes green Identification of the Anybus-S bus module
twice
Too many bus modules / submodules
I/O of the IO controller configuration too large
Configuration incorrect (no module, wrong module)
(1) Connection / activity 1
(2) Communication status
(3) Module status
(1)
(4) Connection / activity 2
(2)
Connection to IO controller established
IO controller is in operation
Connection to IO controller established
IO controller is not in operation
No connection to IO Controller
