AB Profinet IRT FO

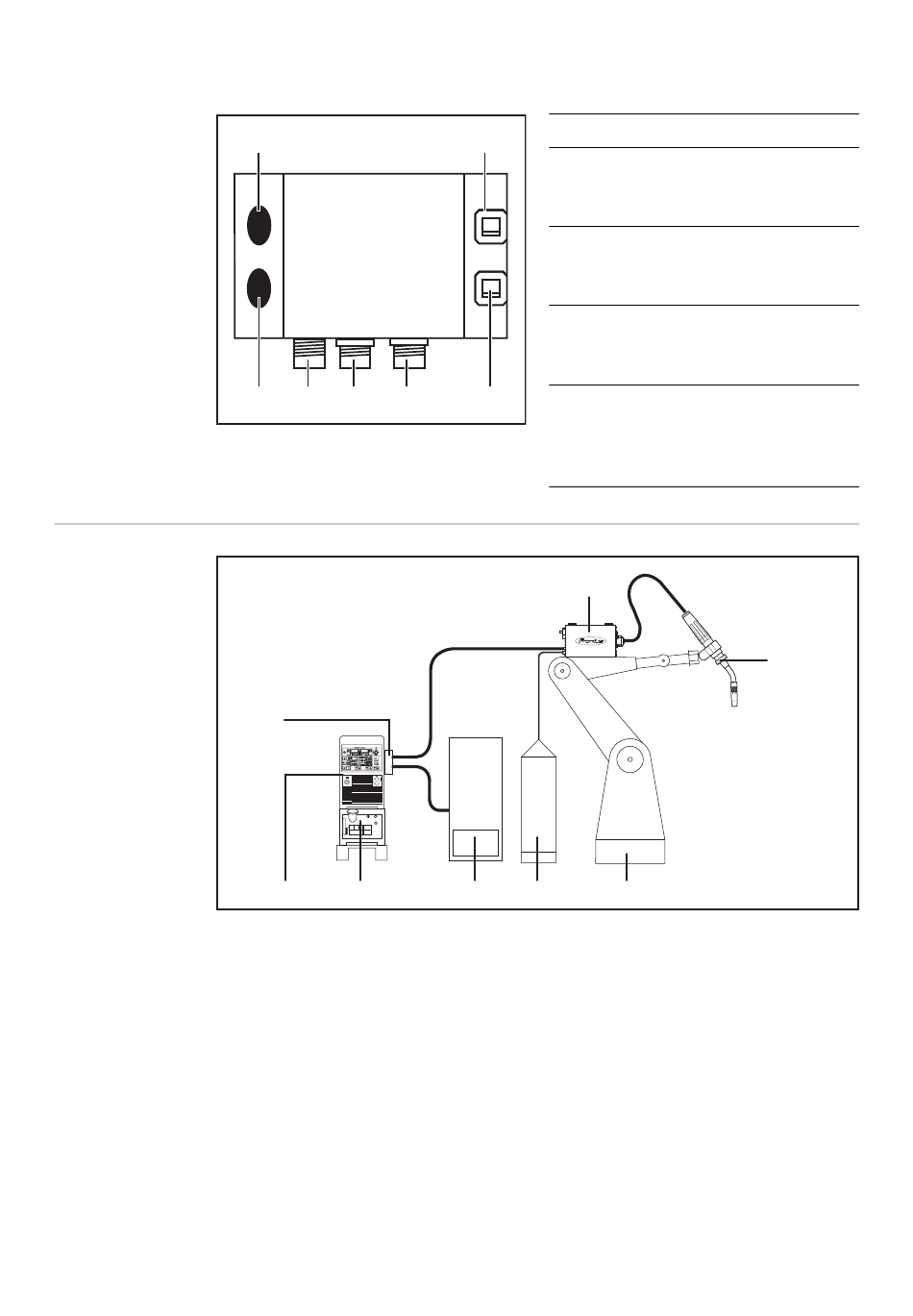

Application
example
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
56
(1)
( ) 1 (2) (3) (4)
(3)
(5)
(1) (2)
Power source
Cooling unit
AB Profinet
Interconnecting hosepack
Profinet data cable
Robot control
Welding wire drum
Robot
Welding torch
Wirefeeder
(1) Blanking cover
(5)
(2) LocalNet connection
for connecting the interconnecting
hosepack
(3) LocalNet connection
for connecting other system com-
ponents
(4) LocalNet connection
for connecting other system com-
ponents
(5) Ethernet SCRJ-MM-C connec-
( ) 5
tion
for connecting the Profinet data
cable
(10)
(4)
(8)
(6) (7)
(9)
