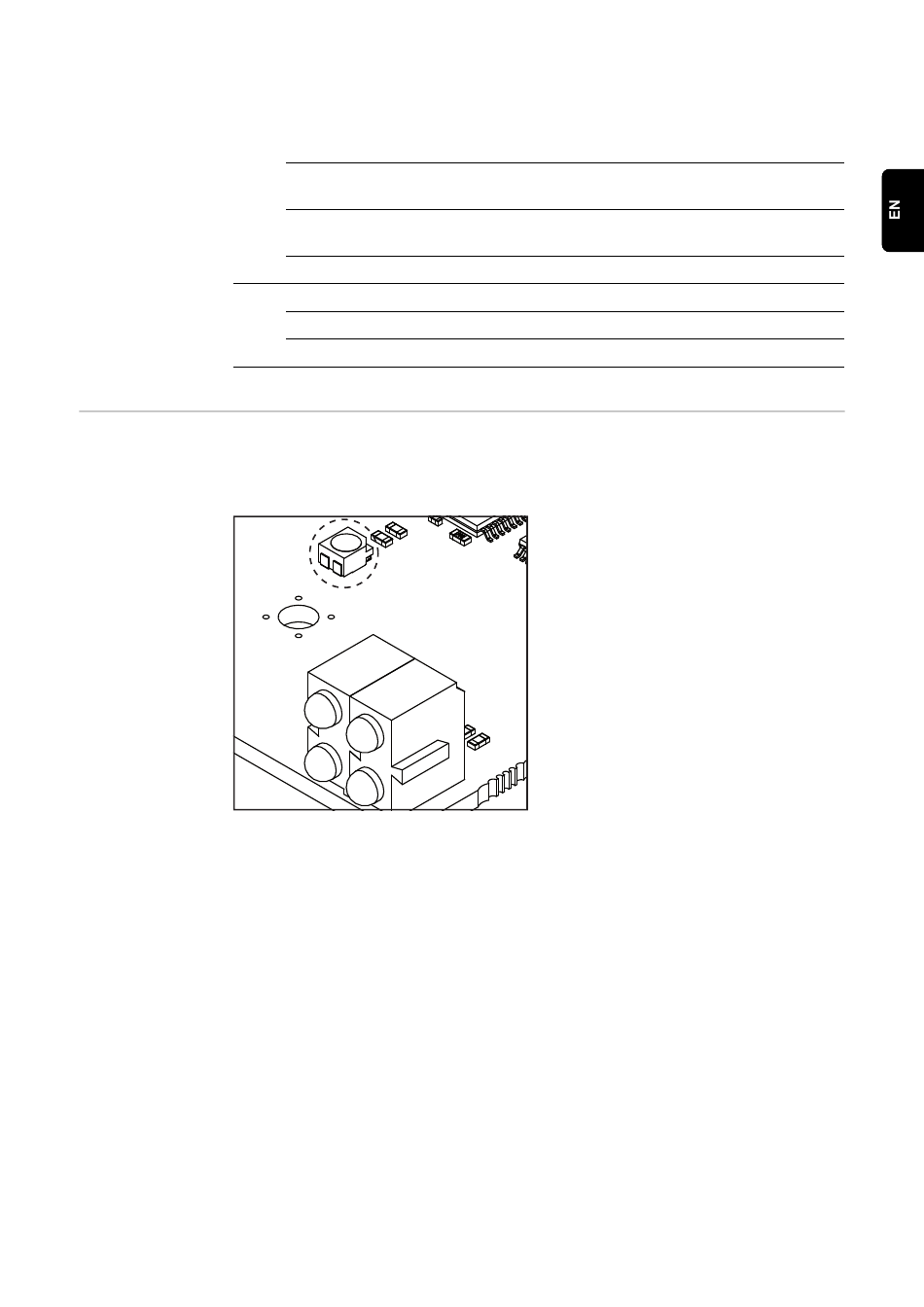

Anybus-S status The Anybus-S status indicator is an LED on the surface of the Anybus-S Profi bus
indicator module.
The following errors and statuses are displayed by the Anybus-S status indicator:
Flashes red Configuration error
once - Too many bus modules / submodules
- I/O of the IO controller configuration too large
- Configuration incorrect (no module, wrong module)
Flashes red No station name or no IP address assigned
three times
Flashes red four Internal fault
times
Off Switched off or not initialised
Lights up green Connection to port 2 established
Flashing green Port 2 receiving / transferring data
Off No connection to port 2 or device is switched off
Status indicator lights up red
Internal error or operation in "bootloader"
mode
Status indicator flashes red, 1 Hz
Error in RAM configuration memory
Status indicator flashes red, 2 Hz
Error in ASIC or FLASH
Status indicator flashes red, 4 Hz
Error in DPRAM
Status indicator flashes green, 2 Hz
Bus module not initialised
Status indicator flashes green, 1 Hz
Bus module initialised, normal operation
