Connecting AB
NOTE!
Profinet
While the robot interface is connected to the LocalNet, "2-step mode" automati-
cally remains selected (display: 2-step mode).
Further information on the "Special 2-step mode for robot interface" can be found in the
sections headed "MIG/MAG welding" and "Operating mode parameters" in the power
source Operating Instructions.

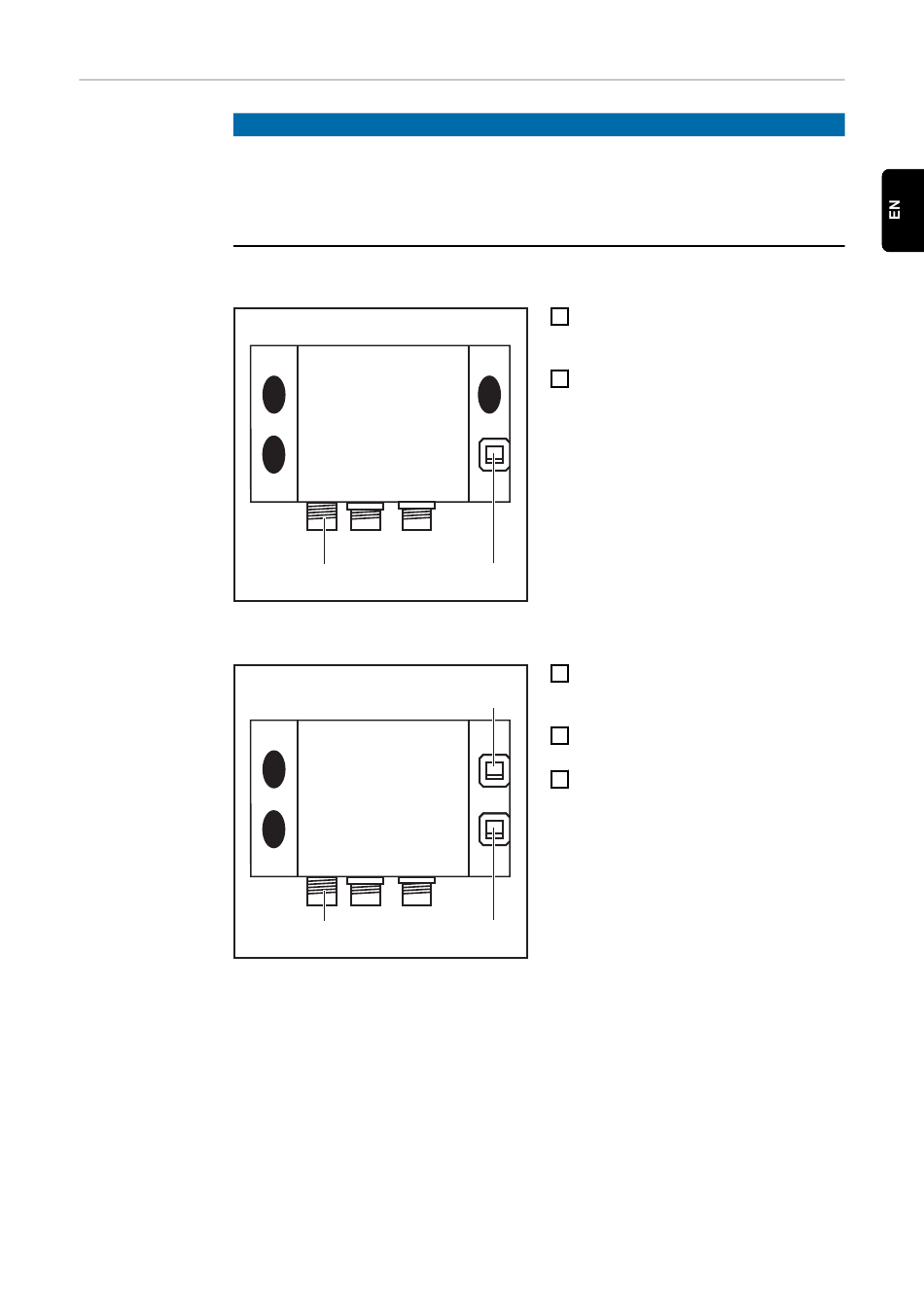

Connecting AB Profinet RT
Connecting AB Profinet IRT
(1) (2)
(3)
(2)
(1)
Connect LocalNet plug on the inter-
1
connecting hosepack to the LocalNet
connection (1)
Connect Profinet data cable to the
2
Ethernet RJ 45 connection (2)
Connect LocalNet plug on the inter-
1
connecting hosepack to the LocalNet
connection (1)
Connect Profinet data cable to the
2
Ethernet RJ 45 connection (2)
Use a data cable to connect any other
3
network devices to the Ethernet RJ 45
connection (2)
