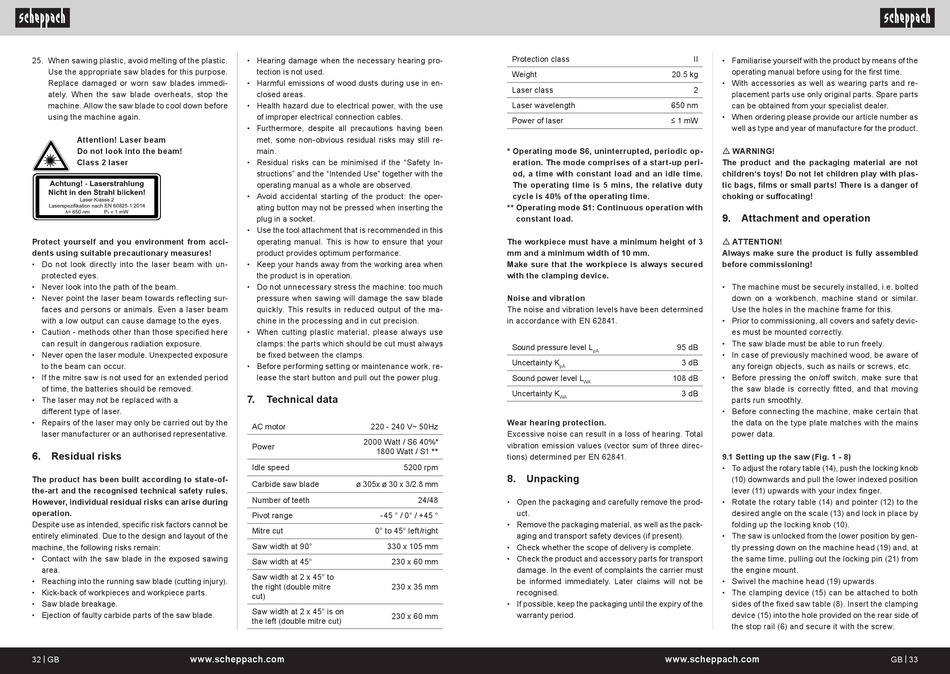

25. When sawing plastic, avoid melting of the plastic.
Use the appropriate saw blades for this purpose.
Replace damaged or worn saw blades immedi-
ately. When the saw blade overheats, stop the
machine. Allow the saw blade to cool down before
using the machine again.
Attention! Laser beam
Do not look into the beam!
Class 2 laser
Protect yourself and you environment from acci-
dents using suitable precautionary measures!
• Do not look directly into the laser beam with un-
protected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• If the mitre saw is not used for an extended period
of time, the batteries should be removed.
• The laser may not be replaced with a
different type of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
6. Residual risks
The product has been built according to state-of-
the-art and the recognised technical safety rules.
However, individual residual risks can arise during
operation.
Despite use as intended, specific risk factors cannot be
entirely eliminated. Due to the design and layout of the
machine, the following risks remain:
• Contact with the saw blade in the exposed sawing
area.
• Reaching into the running saw blade (cutting injury).
• Kick-back of workpieces and workpiece parts.
• Saw blade breakage.
• Ejection of faulty carbide parts of the saw blade.
32 | GB www.scheppach.com
• Hearing damage when the necessary hearing pro-
tection is not used.
• Harmful emissions of wood dusts during use in en-
closed areas.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety In-
structions" and the "Intended Use" together with the
operating manual as a whole are observed.
• Avoid accidental starting of the product: the oper-
ating button may not be pressed when inserting the
plug in a socket.
• Use the tool attachment that is recommended in this
operating manual. This is how to ensure that your
product provides optimum performance.
• Keep your hands away from the working area when
the product is in operation.
• Do not unnecessary stress the machine: too much
pressure when sawing will damage the saw blade
quickly. This results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Before performing setting or maintenance work, re-
lease the start button and pull out the power plug.
7. Technical data
AC motor 220 - 240 V~ 50Hz
2000 Watt / S6 40%*
Power
1800 Watt / S1 **
Idle speed 5200 rpm
Carbide saw blade ø 305x ø 30 x 3/2.8 mm
Number of teeth 24/48
Pivot range -45 ° / 0° / +45 °
Mitre cut 0° to 45° left/right
Saw width at 90° 330 x 105 mm
Saw width at 45° 230 x 60 mm
Saw width at 2 x 45° to
the right (double mitre 230 x 35 mm
cut)
Saw width at 2 x 45° is on
230 x 60 mm
the left (double mitre cut)
Protection class
Weight 20.5 kg
Laser class
Laser wavelength 650 nm
Power of laser ≤ 1 mW
* Operating mode S6, uninterrupted, periodic op-
eration. The mode comprises of a start-up peri-
od, a time with constant load and an idle time.
The operating time is 5 mins, the relative duty
cycle is 40% of the operating time.
** Operating mode S1: Continuous operation with
constant load.
The workpiece must have a minimum height of 3
mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise and vibration
The noise and vibration levels have been determined
in accordance with EN 62841.
Sound pressure level L 95 dB
pA
Uncertainty K 3 dB
pA
Sound power level L 108 dB
WA
Uncertainty K 3 dB
WA
Wear hearing protection.
Excessive noise can result in a loss of hearing. Total
vibration emission values (vector sum of three direc-
tions) determined per EN 62841.
8. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
www.scheppach.com
II
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
2
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Attachment and operation
m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
• The machine must be securely installed, i.e. bolted
down on a workbench, machine stand or similar.
Use the holes in the machine frame for this.
• Prior to commissioning, all covers and safety devic-
es must be mounted correctly.
• The saw blade must be able to run freely.
• In case of previously machined wood, be aware of
any foreign objects, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that
the saw blade is correctly fitted, and that moving
parts run smoothly.
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
9.1 Setting up the saw (Fig. 1 - 8)
• To adjust the rotary table (14), push the locking knob
(10) downwards and pull the lower indexed position
lever (11) upwards with your index finger.
• Rotate the rotary table (14) and pointer (12) to the
desired angle on the scale (13) and lock in place by
folding up the locking knob (10).
• The saw is unlocked from the lower position by gen-
tly pressing down on the machine head (19) and, at
the same time, pulling out the locking pin (21) from
the engine mount.
• Swivel the machine head (19) upwards.
• The clamping device (15) can be attached to both
sides of the fixed saw table (8). Insert the clamping
device (15) into the hole provided on the rear side of
the stop rail (6) and secure it with the screw.
